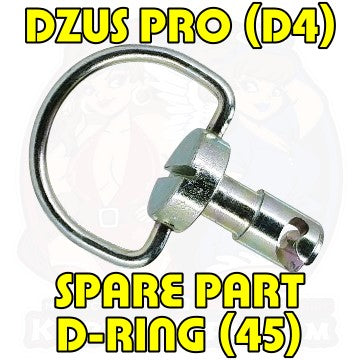

Spare Part: 1pc, DZUS PRO (D4), D-Ring, Silver, Length (45)
Spare Part: 1pc, DZUS PRO (D4), D-Ring, Silver, Length (45)
Spare Part: 1pc, DZUS PRO (D4), D-Ring, Silver, Length (45)
Spare Part: 1pc, DZUS PRO (D4), D-Ring, Silver, Length (45)

Spare Part: 1pc, DZUS PRO (D4), D-Ring, Silver, Length (45)

$9.50 USD
/
Shipping calculated at checkout.
DESCRIPTION FITMENT SHIPPING & RETURNS PART NUMBER(S) ADDITIONAL INFO
DESCRIPTION

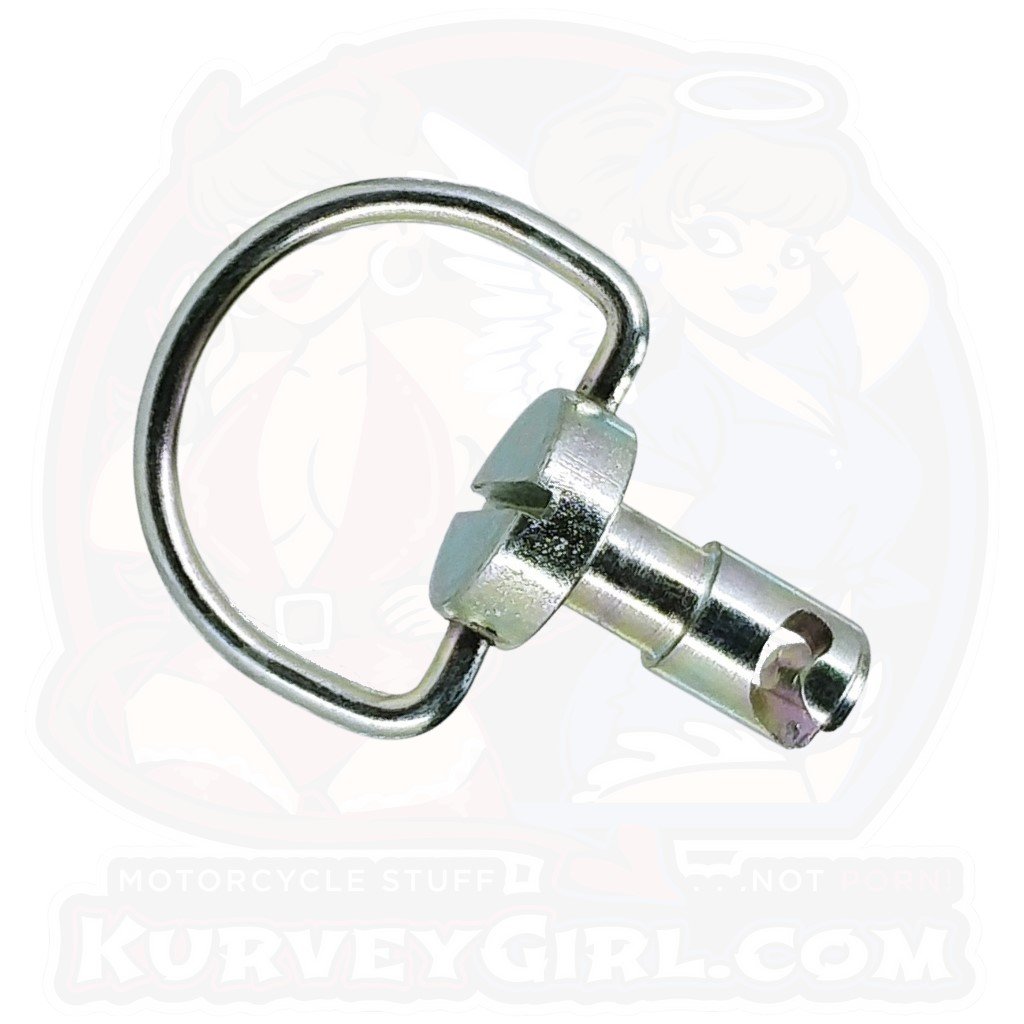

SPARE PARTS: Single Dzus-Pro Bolt and Grommet (-45 Length)
DZUS Professional Grade Fasteners: Same style fasteners found on top motorcycle road racing bikes.  Spring Retention system for maximum grip.
  • This kit is for the professional racer who takes their bodywork off several times a race weekend!!!!
  • Note: This kit is for the person who has installed Motorcycle Fiberglass Bodywork before!!!
  • Note: No Clip-On S-Spring is included with these parts.  You Must have the same Clip-On S-Spring for this bolt to fit.
  • If you are not sure, we strongly recommend you purchase a replacement Clip-On s-spring at the same time.
Kit Includes:
1 - 6mm D-Ring Panex Fasteners Coating: Zinc Trivalent Clear with Trivalent Chromate Clear.
Finish Specifications: ASTM-B-633, Type III, SC 2
1 - Plastic Grommet Used to hold the Stud Bolt on bodywork
Material: High density polyethylene
Notes: -45 Length, Dzus Bolt for Clip-On S-Spring Application.
-45 Length, Dzus Bolt may not work with Rivet On S-Spring.
Dzus Pro Bolt - (-45 Length)
Dzus Bolts Specs & Drawing
Dzus Pro - Bolt - Drawing
Additional Dzus Pro Bolt Specs / Info

  • (L) Dimension:  11.43mm (.450in)
  • (U) Under Cut Dimension:  5.72mm (.225in)
  • Grip Range: 4.0mm to 5.6mm
    • Maximum Grip with out washer
    • Minimum Grip using washer
  • Bodywork Hole size: 6.5mm (0.250in)

Compatible Dzus Pro Hardware Links
IMAGE Description & Link to Product
Dzus Pro Clip-On Plate DZUS PRO Clip-On Fastener
Link: [ CLICK HERE ]
