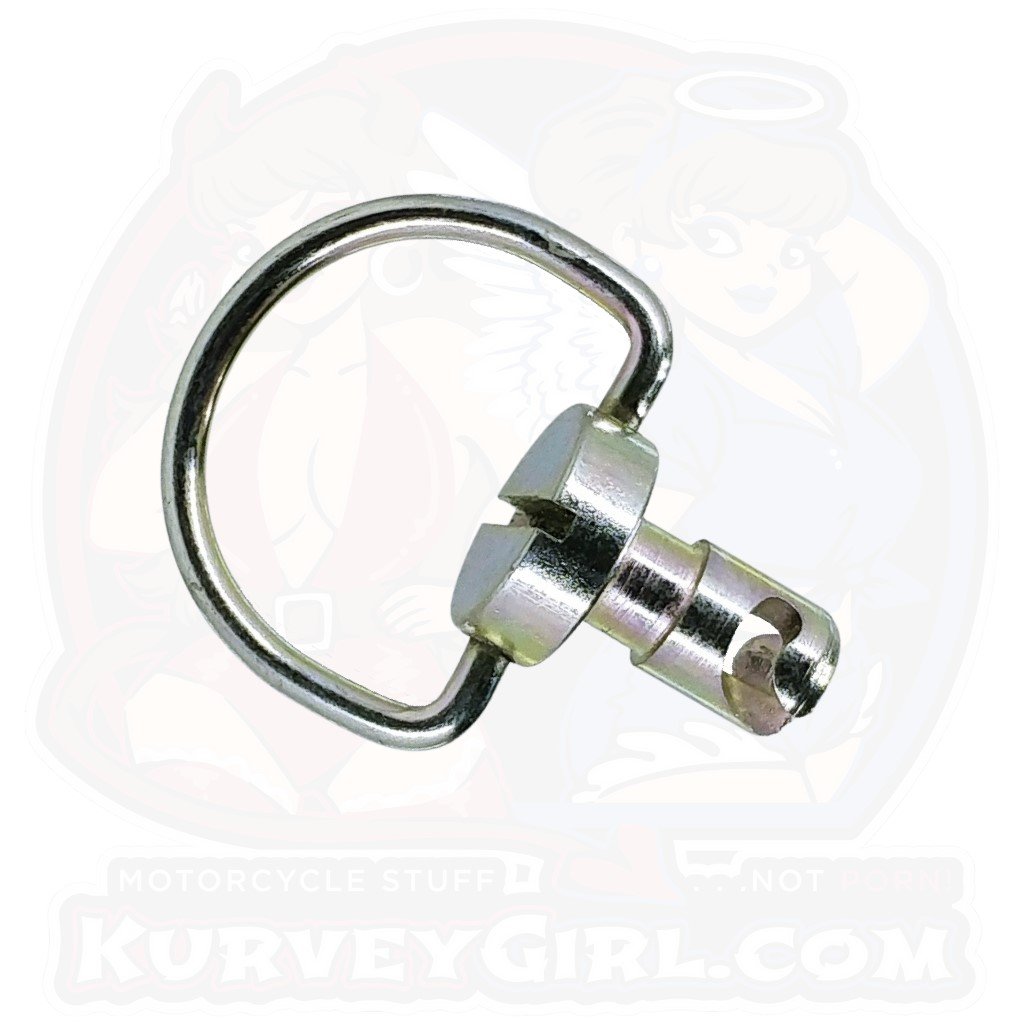

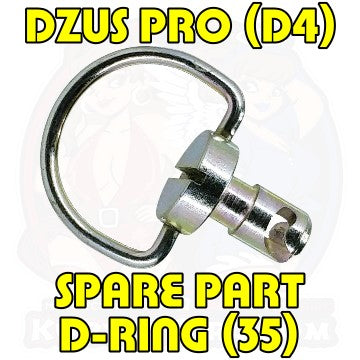

Spare Part: 1pc, DZUS PRO (D4), D-Ring, Silver, Length (35)
Spare Part: 1pc, DZUS PRO (D4), D-Ring, Silver, Length (35)
Spare Part: 1pc, DZUS PRO (D4), D-Ring, Silver, Length (35)
Spare Part: 1pc, DZUS PRO (D4), D-Ring, Silver, Length (35)

Spare Part: 1pc, DZUS PRO (D4), D-Ring, Silver, Length (35)

$9.00 USD
/
Shipping calculated at checkout.
DESCRIPTION FITMENT SHIPPING & RETURNS PART NUMBER(S) ADDITIONAL INFO
DESCRIPTION
SPARE PARTS: Single Dzus-Pro Bolt and Grommet (35 Length)
DZUS Professional Grade Fasteners: Same style fasteners found on top motorcycle road racing bikes.  Spring Retention system for maximum grip.
  • This kit is for the professional racer who takes their bodywork off several times a race weekend!!!!
  • Note: This kit is for the person who has installed Motorcycle Fiberglass Bodywork before!!!
  • Note: No S-Spring is included with these parts.  You Must have the same S-Spring for this bolt to fit.
  • If you are not sure, we strongly recommend you purchase a replacement s-spring at the same time
Kit Includes:
1 - 6mm D-Ring Panex Fasteners Coating: Zinc Trivalent Clear with Trivalent Chromate Clear.
Finish Specifications: ASTM-B-633, Type III, SC 2
1 - Plastic Grommet Used to hold the Stud Bolt on bodywork
Material: High density polyethylene
Notes: Shorter Dzus bolt for Rivet On S-Spring Application.
Bolt may not work with Clip-On S-Spring Dzus bolt.
Dzus Bolts Specs & Drawing
Dzus Pro - Bolt - Drawing
Additional Dzus Pro Bolt Specs / Info

  • (L) Dimension:  8.9mm (.350in)
  • (U) Under Cut Dimension:  3.8mm (.150in)
  • Grip Range: 3.5mm to 5.0mm
    • Maximum Grip with out washer
    • Minimum Grip using washer
  • Bodywork Hole size: 6.5mm (0.250in)
Dzus S-Spring Mounting Diagram
Dzus Pro - Rivet-On S-Spring - Install Diagram
Dzus Pro - Rivet On
Installation Diagram
  • Stud Bolt
  • Outer Panel
  • Washer (Retainer)
  • Inner Panel (Frame)
  • Receptacle (S-Spring)
  • Pop-Rivets

Compatible Dzus Pro Hardware Links
IMAGE Description & Link to Product
Dzus Pro Rivet On Retainer DZUS PRO S-Spring Rivet on Retainer
Link: [ CLICK HERE ]
