Spare Part: 1pc, DZUS PRO (D4), S-Spring, Rivet-On Retainer, (35)

$3.00 USD
$3.00 USD
Sold out
Shipping calculated at checkout.
DESCRIPTION FITMENT SHIPPING & RETURNS PART NUMBER(S) ADDITIONAL INFO
DESCRIPTION
SPARE PARTS: One (1) Dzus-Pro S-Spring and Rivets
DZUS Professional Grade Fastener: Replacement Spring Retention system.
  • Note: No Bolt is included with these parts.
  • You Must have a compatible bolt, -35 Length Recommended, for this Rivet on S-Spring to work together.
  • If you are not sure, we strongly recommend you purchase a replacement bolt at the same time.
Kit Includes:

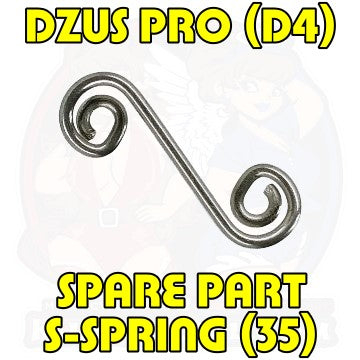

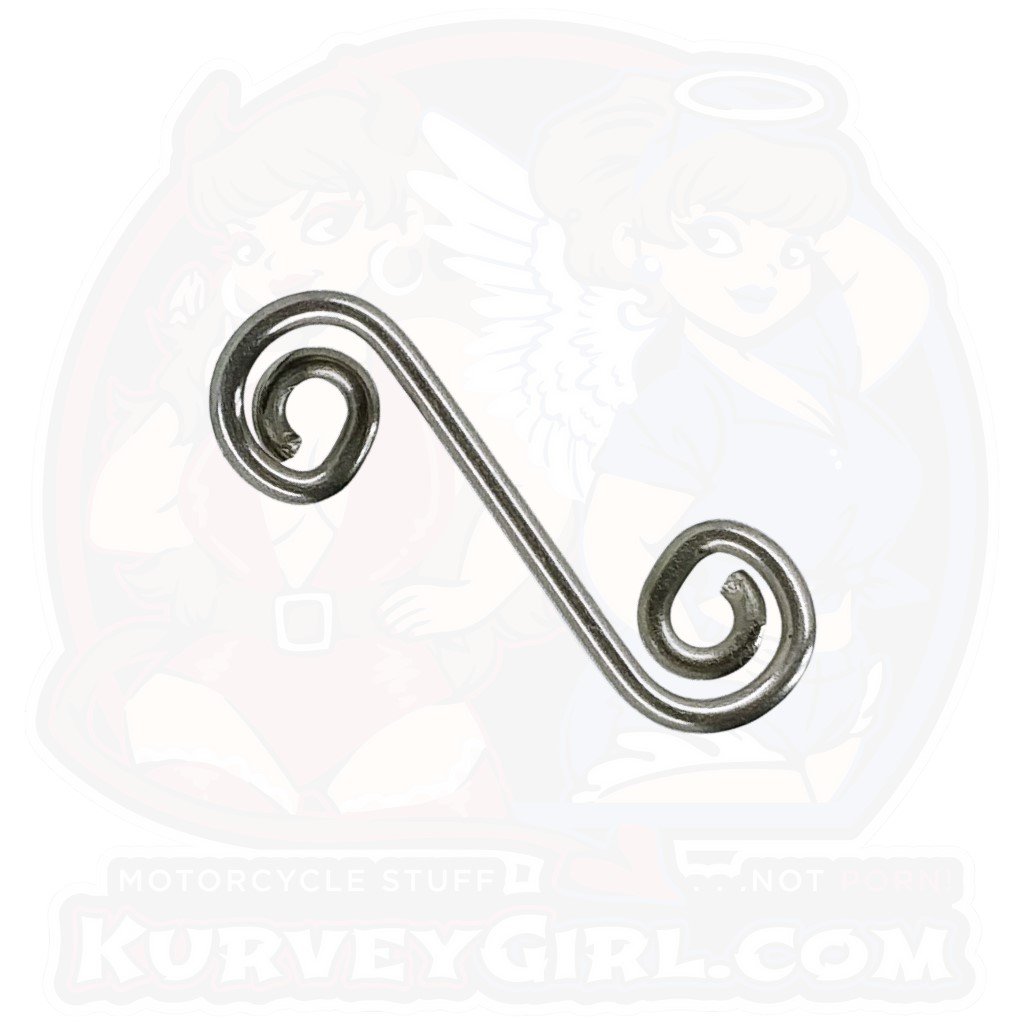

1 - S-Spring Rivet on Retainer Coating: Zinc Trivalent Clear with Trivalent Chromate Clear.
Finish Specifications: ASTM-B-633, Type III, SC 2

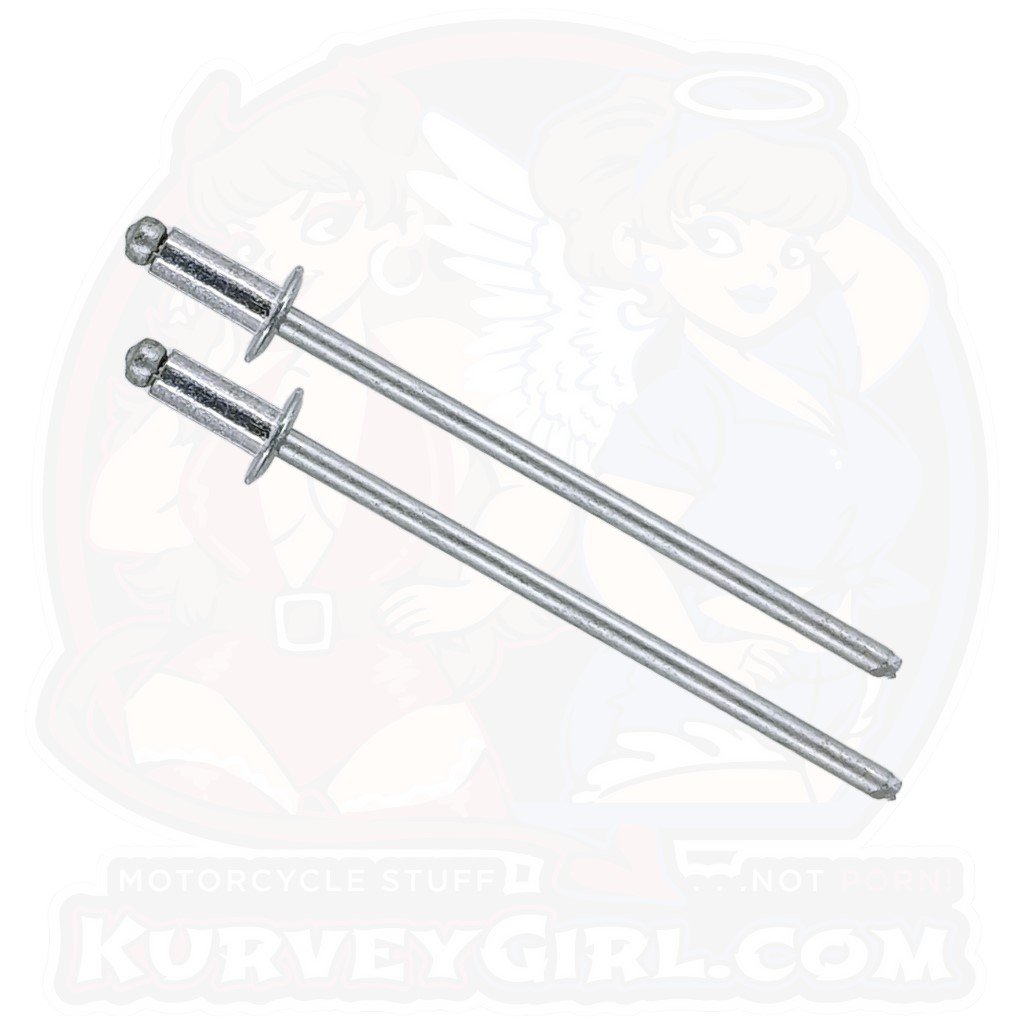

3 - 3/32nd Genuine Pop Rivet brand rivets Special Sized 3/32nd rivet
1 extra rivet just in case
Dzus S-Spring Specs & Drawing
Dzus Pro - Rivet-On S-Spring Drawing
Dzus Pro S-Spring Specs / Info

  • Minimum flat space for S-Spring: 11mm
  • Minimum clearance behind bodywork: 11mm
  • (H) Dimension:  5.0mm (.200in)
Dzus S-Spring Mounting Diagram
Dzus Pro - Rivet-On S-Spring - Install Diagram
Dzus Pro - Rivet On
Installation Diagram
  • Stud Bolt
  • Outer Panel
  • Washer (Retainer)
  • Inner Panel (Frame)
  • Receptacle (S-Spring)
  • Pop-Rivets
