Yamaha Bolt Kit: 1SL-28386-00-00 & 5TJ-21757-00-00, DZUS CLASSIC (D3), Black
Yamaha Bolt Kit: 1SL-28386-00-00 & 5TJ-21757-00-00, DZUS CLASSIC (D3), Black
  • Load image into Gallery viewer, Yamaha Bolt Kit: 1SL-28386-00-00 & 5TJ-21757-00-00, DZUS CLASSIC (D3), Black
  • Load image into Gallery viewer, Yamaha Bolt Kit: 1SL-28386-00-00 & 5TJ-21757-00-00, DZUS CLASSIC (D3), Black

Yamaha Bolt Kit: 1SL-28386-00-00 & 5TJ-21757-00-00, DZUS CLASSIC (D3), Black

Regular price
$12.25 USD
Sale price
$12.25 USD
Regular price
Sold out
Unit price
per
Shipping calculated at checkout.

DESCRIPTION FITMENT SHIPPING & RETURNS PART NUMBER(S) ADDITIONAL INFO
DESCRIPTION
Replacement bolt kit for Yamaha Motorcycle Dzus bolts:
Bolt: P/N: 1SL-28386-00-00 (1pcs) with Black Finish
Lock Washer: P/N: 5TJ-21757-00-00
  • Single replacement bolt and washer Kit for attaching motorcycle bodywork together.
    • 14mm Dzus bolt is a DIRECT mechanical replacement for Yamaha Part Number 1SL-28386-00-00.
    • Note: Yamaha Part OEM Finish is a CHROME finish, Replacement part is a Zinc Plate with BLACK Chromate finish.
  • Note: No attachment clip is included with these parts.
  • We strongly recommend you purchase a new replacement clip for best fitting.



Kit Includes:
1 - 6mm D-Ring Panex Fasteners Working Length: 14mm
Coating: Zinc Plate with Black Chromate
1 - Lock Washer. Material: Stainless Steel

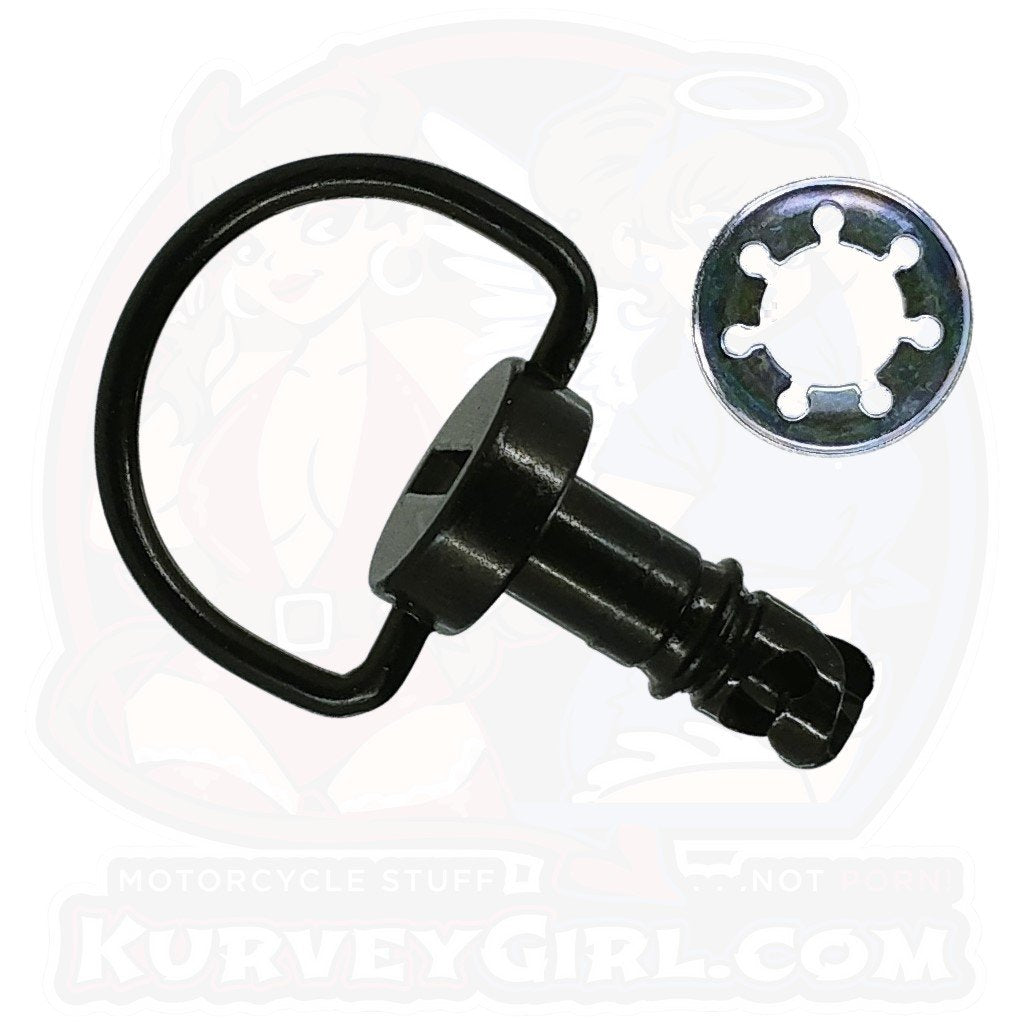

Kit Image:
1SL-28386-00-00 Yamaha Black Dzus Main






Dzus Bolts Specs & Drawing
Additional Dzus Bolt Specs / Info

  • (L) Working Length: 14mm
  • Shaft Length : 17mm
  • Grip Range: 5.5mm to 7.4mm
    • Maximum Grip with out washers
    • Minimum Grip using 2 washers
  • Minimum bodywork Hole size: 7.2mm
    • English: 9/32 Inch





Yamaha Part and Application Info: [NOTE: Yamaha Part OEM Finish is a CHROME finish]
Dzus Bolt Equivalent Yamaha P/N's:

Main P/N: 1SL-28386-00-00
1SL-28386-00-00
1SL283860000
1SL 28386 00 00
Lock Washer Equivalent Yamaha P/N's:

Main P/N: 5TJ-21757-00-00
5TJ-21757-00-00
5TJ-217570000
5TJ-21757 00 00
Yamaha Fitment List (Partial List):
Year Model
2015 - 2020 YZ250F (Intake)
2015 - 2020 YZ250FX (Intake)
2015 - 2020 WR250F (Intake)
2015 - 2020 YZ450F (Intake)
2016 - 2020 YZ450FX (Intake)
2016 - 2020 WR450F (Intake)





Compatible Yamaha Dzus Hardware Links
IMAGE Description & Link to Product
Dzus Panex D8 Clip on Retainer Replacement Spring Plate: Yamaha P/N: 4XV-2177L-01-00
Link: [ CLICK HERE ]
Dzus Panex D8 Rivet On Retainer Replacement Spring Plate: Yamaha P/N: 2TK-2177L-00-00
Link: [ CLICK HERE ]
Dzus Panex D8 Washer - Black DZUS PANEX D8 Retaining Washer
Link: [ CLICK HERE ]
