Titanium Drain Bolt - M14x1.25x12mm - Double Drive (KGO-3)
Regular price
$19.00 USD
Sale price
$19.00 USD
Regular price
Sale
Sold out
Unit price
/
per
Shipping
calculated at checkout.
Default Title
Quantity
Error
Quantity must be 1 or more
Add to cart
Adding product to your cart
Fits Most Suzuki Motorcycles:
Replaces P/N:
09247-14036
09247-14002
09247-14014
09247-14019
09247-14036-A05
09247-14001
09247-14002-A05
Share
Share on Facebook
Tweet
Tweet on Twitter
Pin it
Pin on Pinterest
DESCRIPTION
FITMENT
SHIPPING & RETURNS
PART NUMBER(S)
ADDITIONAL INFO
DESCRIPTION
Titanium Drain Bolt: M14 x 1.25 x 12mm
KurveyGirl.com Double Drive Titanium Drain Bolt:
Size: M14 x 1.25mm
Thread Length (L): 12mm
Thread Pitch: 1.25mm
Material: Titanium
Kit Includes:
Features:
Titanium [Grade 5 - Ti6Al4V]
Pre Drilled for Safety Wire
Double Drive System:
Outer: 12mm HEX
Inner: T50 TORX
100% CNC Bolt from Billet Titanium
Thread: M14 x 1.25
Body Length (L): 12mm
Applications (Rule of Thumb):
Make
Model
Year
OEM Drain Plug
Part Number
Suzuki
GSX-R1000
2017 - 2018
11512-17K00
Suzuki
GSX-R600
2001 - 2018
09247-14036
Also Replaces P/N:
09247-14014,
09247-14019,
09247-14036-A05
GSX-R750
2001 - 2018
GSX-R1000
2001 - 2016
Hayabusa
1999 - 2017
Suzuki
GSX-R600
1997 - 2000
09247-14002
Also Replaces P/N:
09247-14001,
09247-14002-A05
GSX-R750
1986 - 1999
TL1000R
1998 - 2002
Note: As all Rule's of Thumb, their are exceptions to the rule!!!
Please check your particular application.
Above information is for reference purposes only.

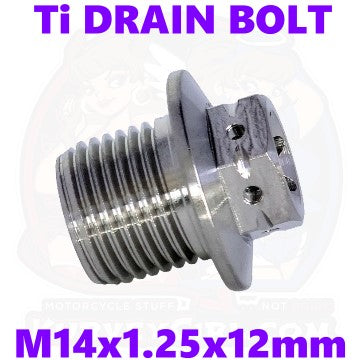

Part Images:
FITMENT
Fits Most Suzuki Motorcycles:
Replaces P/N:
09247-14036
09247-14002
09247-14014
09247-14019
09247-14036-A05
09247-14001
09247-14002-A05
Applications (Rule of Thumb):
Make
Model
Year
OEM Drain Plug
Part Number
Suzuki
GSX-R1000
2017 - 2018
11512-17K00
Suzuki
GSX-R600
2001 - 2018
09247-14036
Also Replaces P/N:
09247-14014,
09247-14019,
09247-14036-A05
GSX-R750
2001 - 2018
GSX-R1000
2001 - 2016
Hayabusa
1999 - 2017
Suzuki
GSX-R600
1997 - 2000
09247-14002
Also Replaces P/N:
09247-14001,
09247-14002-A05
GSX-R750
1986 - 1999
TL1000R
1998 - 2002
Note: As all Rule's of Thumb, their are exceptions to the rule!!!
Please check your particular application.
Above information is for reference purposes only.
