Titanium Banjo Bolt - Single Line - M10x1.0 Fine Thread
Titanium Banjo Bolt - Single Line - M10x1.0 Fine Thread
  • Load image into Gallery viewer, Titanium Banjo Bolt - Single Line - M10x1.0 Fine Thread
  • Load image into Gallery viewer, Titanium Banjo Bolt - Single Line - M10x1.0 Fine Thread

Titanium Banjo Bolt - Single Line - M10x1.0 Fine Thread

$13.00 USD
$13.00 USD
Sold out
Shipping calculated at checkout.
DESCRIPTION FITMENT SHIPPING & RETURNS PART NUMBER(S) ADDITIONAL INFO
DESCRIPTION

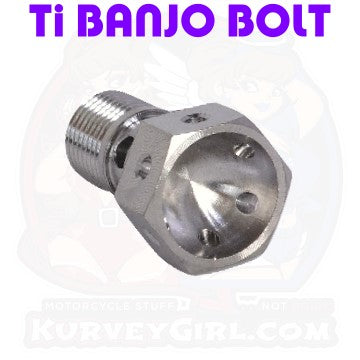

Titanium Single Banjo Bolt:
     M10 x 1.0 Fine Thread.

Titanium Banjo Bolt - Single - ISO - Fine

Kit Includes:
Single Banjo Bolt Features:
  • Titanium [Grade 5 - Ti6Al4V]
  • Thread: M10 x 1.0 fine
  • Overall Length: 25.5mm
  • Body Length: 18.5mm
  • Fluid Bore: 5.5mm
  • Pre Drilled for Safety Wire
  • 100% CNC Bolt from Billet Titanium
Crush Washers Included Kit:
Crush Washer Kit includes:
All 3 Different Crush Washer's Thicknesses, for optimal banjo fitting and positioning over flow ports on Banjo Bolt.
KurveyGirl Banjo Bolt Crush Washer FittingGuide Single

14mm Diameter Crush Washers
Material: Aluminum - All 3 Thickness included (No extra charge)
Washer Washer Tx: Washer Qty
Set #1 1.0mm 3
Set #2 1.5mm 3
Set #3 2.0mm 3
Applications (Rule of Thumb):
  • Brembo : M10 x 1.0
  • Aprilia : M10 x 1.0
  • BMW : M10 x 1.0
  • Ducati : M10 x 1.0
  • Suzuki Depends On Model, Year, Etc.
    • Pre-2002 Suzuki motorcycles : M10 x 1.0
    • CHECK YOUR SUZUKI APPLICATION CAREFULLY!!! Suzuki mixes thread sizes.
Note: This M10 x 1.0 Banjo Bolt MAY NOT FIT
  • Honda : M10 x 1.25
  • Kawasaki : M10 x 1.25
  • KTM : M10 x 1.25
  • Suzuki Depends On Model, Year, Etc.
    • Most 2002+ Suzuki motorcycles : M10 x 1.25
    • CHECK YOUR SUZUKI APPLICATION CAREFULLY!!! Suzuki mixes thread sizes.
  • Yamaha : M10 x 1.25

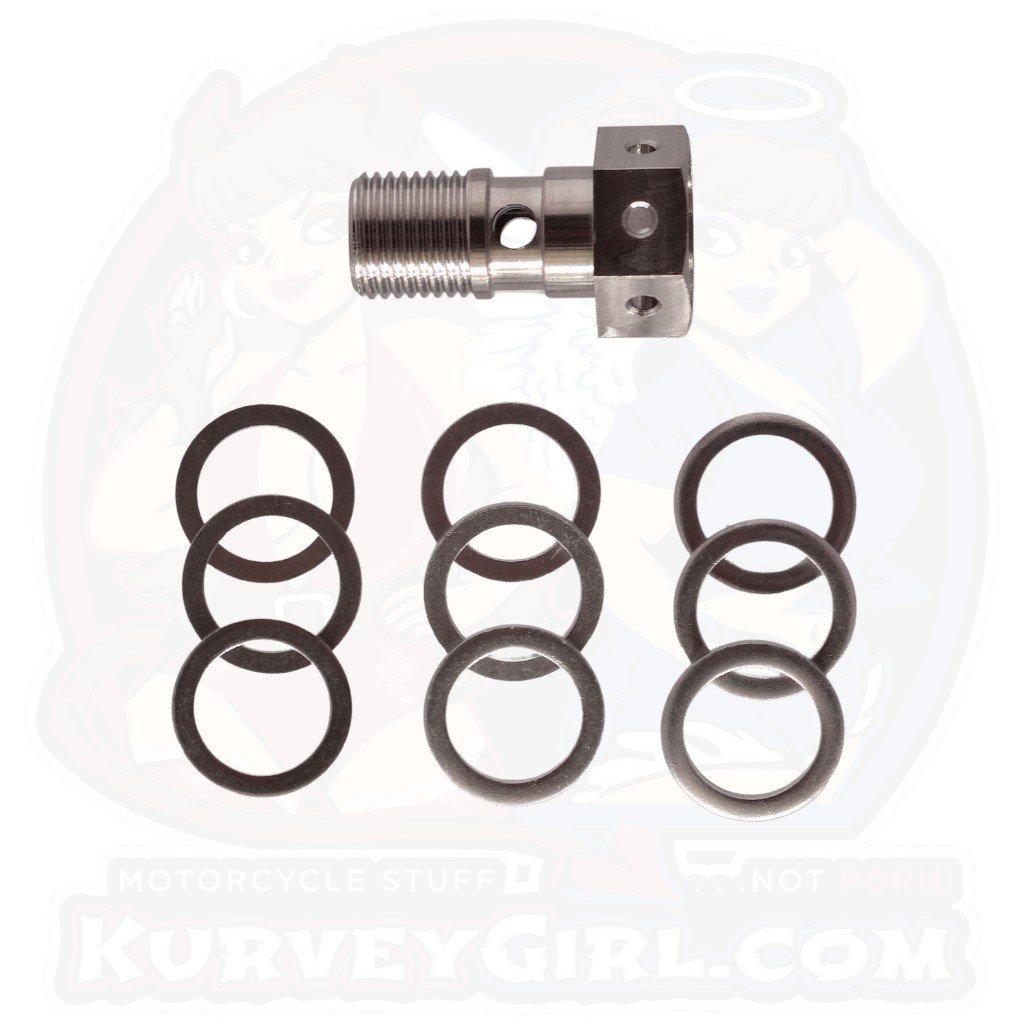

Titanimum - Single Banjo Bolt - M10x1.0 - Fine Thread - Washers
Titanimum Banjo Installed
