Titanium Banjo Bolt - Flush Mount - Double - M10x1.0 Fine
Titanium Banjo Bolt - Flush Mount - Double - M10x1.0 Fine
Titanium Banjo Bolt - Flush Mount - Double - M10x1.0 Fine
Titanium Banjo Bolt - Flush Mount - Double - M10x1.0 Fine

Titanium Banjo Bolt - Flush Mount - Double - M10x1.0 Fine

$20.00 USD
/
Shipping calculated at checkout.
DESCRIPTION FITMENT SHIPPING & RETURNS PART NUMBER(S) ADDITIONAL INFO
DESCRIPTION

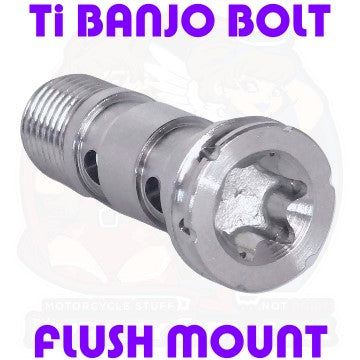

Titanium Double Banjo Bolt:
     M10 x 1.0 Fine Thread.
     STYLE: FLUSH MOUNT
Flush Mount Double Banjo Bolt - Fine Thread - Titanium - ISO

Kit Includes:
Flush Mount
Double Banjo Bolt		 Features:
  • Titanium [Grade 5 - Ti6Al4V]
  • Thread: M10 x 1.0
  • Overall Length: 32mm
  • Body Length: 28.5mm
  • Fluid Bore: 5.5mm
  • Flush Mount head thickness: 3.6mm
  • Recessed Torx T-50 Fastener in Head
  • Pre Drilled for Safety Wire
    • 6 Safety Wire holes
    • 360? safety wire guide groove
    • Safety wire guide notches along outer head
  • 100% CNC Bolt from Billet Titanium

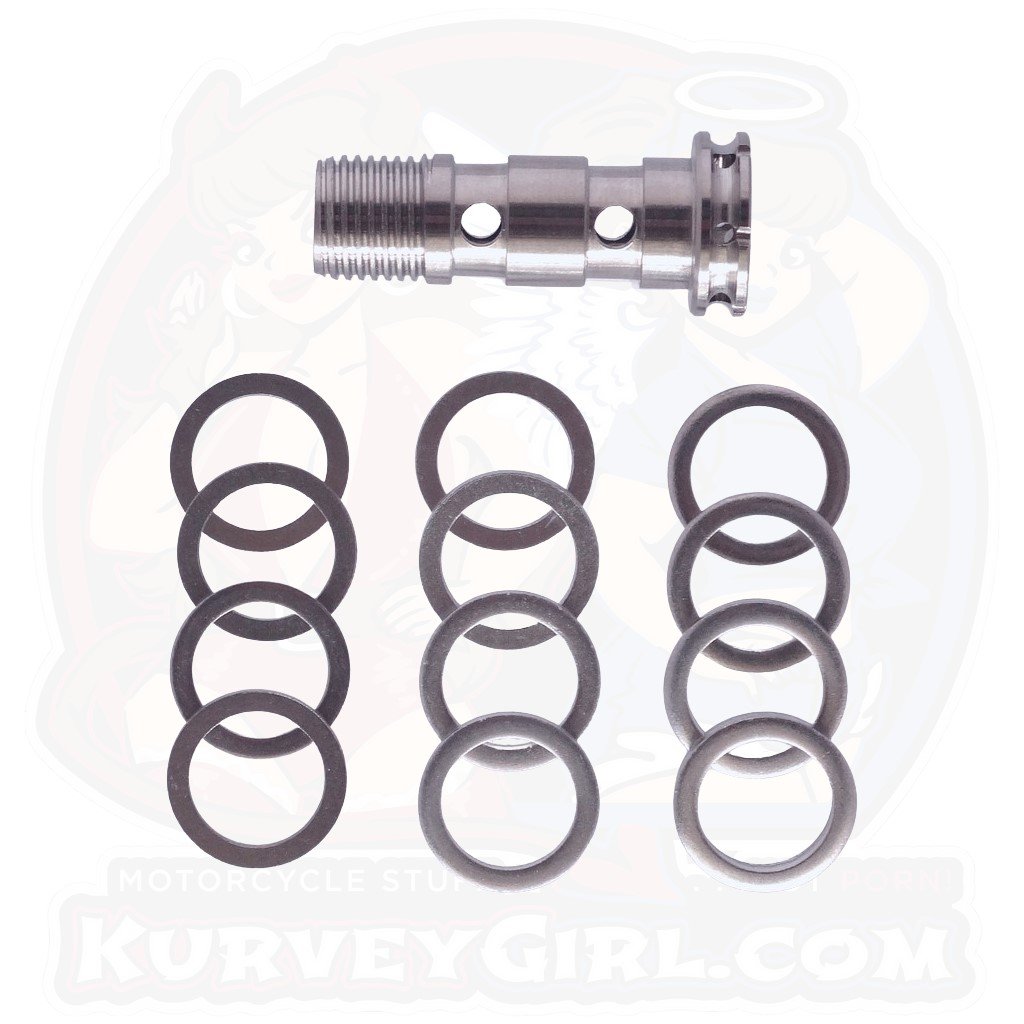

Crush Washers Included Kit:
Crush Washer Kit includes:
All 3 Different Crush Washer's Thicknesses, for optimal banjo fitting and positioning over flow ports on Banjo Bolt.
KurveyGirl Banjo Bolt Crush Washer Fitting Guide

14mm Diameter Crush Washers
Material: Aluminum - All 3 Thickness included (No extra charge)
Washer Washer Tx: Washer Qty
Set #1 1.0mm 4
Set #2 1.5mm 4
Set #3 2.0mm 4
Applications (Rule of Thumb):
  • Brembo : M10 x 1.0
  • Aprilia : M10 x 1.0
  • BMW : M10 x 1.0
  • Ducati : M10 x 1.0
  • Suzuki Depends On Model, Year, Etc.
    • Pre-2002 Suzuki motorcycles : M10 x 1.0
    • CHECK YOUR SUZUKI APPLICATION CAREFULLY!!! Suzuki mixes thread sizes.
Note: This M10x1.0 Banjo Bolt MAY NOT FIT
  • Honda : M10 x 1.25
  • Kawasaki : M10 x 1.25
  • KTM : M10 x 1.25
  • Suzuki Depends On Model, Year, Etc.
    • 2002+ Suzuki motorcycles : M10 x 1.25
    • CHECK YOUR SUZUKI APPLICATION CAREFULLY!!! Suzuki mixes thread sizes.
  • Yamaha : M10 x 1.25
Note: As all Rule's of Thumb, their are exceptions to the rule!!!
  • Please check your particular application.
  • Above information is for reference purposes only.
Titanimum - Flush Double Banjo Bolt - M10x1.0 - Fine Thread - Washers
Flush Titanimum Banjo Installed
