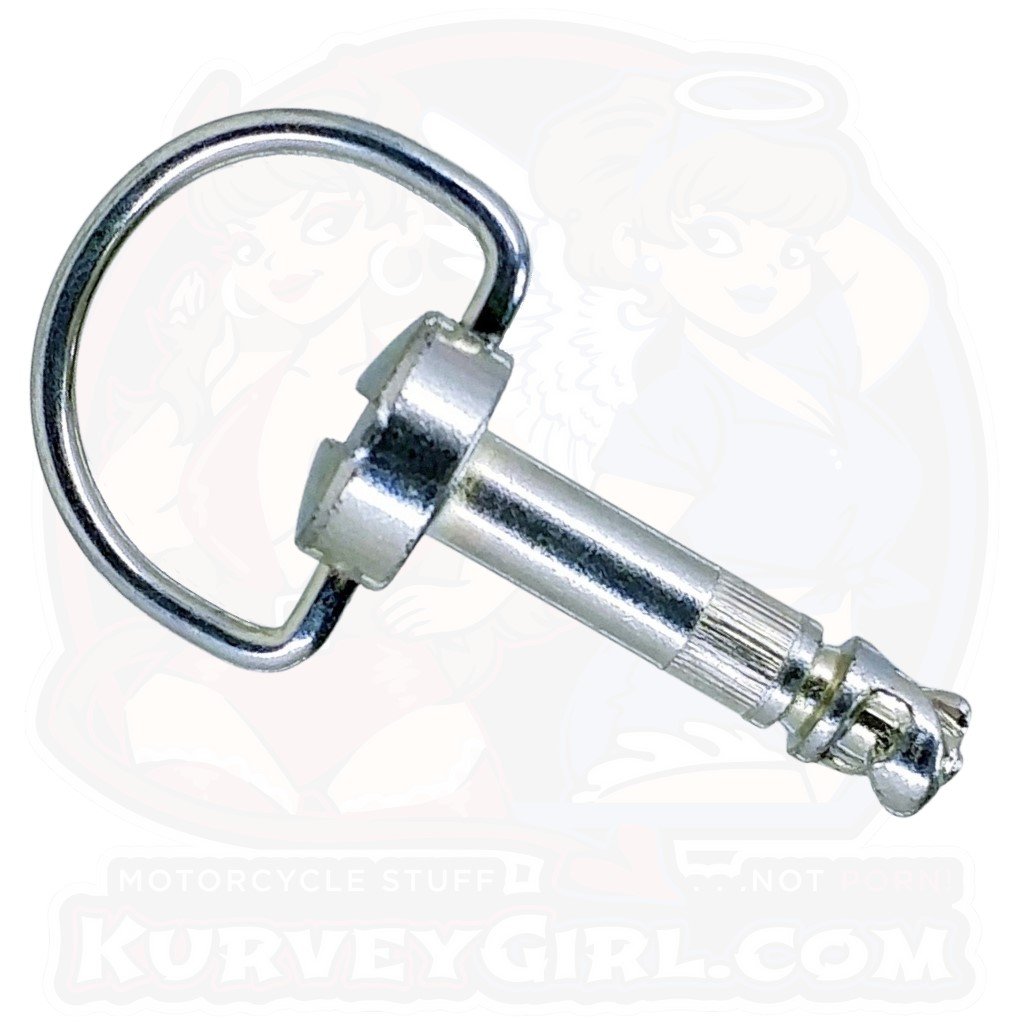

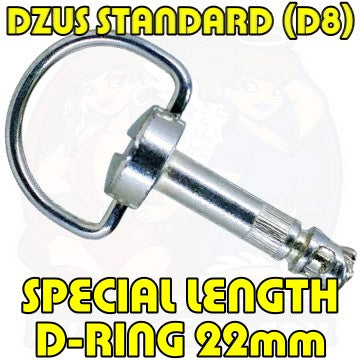

Special Length: 1pc, DZUS (D8), D-Ring, Silver, WL=22mm
Special Length: 1pc, DZUS (D8), D-Ring, Silver, WL=22mm
  • Load image into Gallery viewer, Special Length: 1pc, DZUS (D8), D-Ring, Silver, WL=22mm
  • Load image into Gallery viewer, Special Length: 1pc, DZUS (D8), D-Ring, Silver, WL=22mm

Special Length: 1pc, DZUS (D8), D-Ring, Silver, WL=22mm

Regular price
$8.00 USD
Sale price
$8.00 USD
Regular price
Sold out
Unit price
per
Shipping calculated at checkout.

DESCRIPTION FITMENT SHIPPING & RETURNS PART NUMBER(S) ADDITIONAL INFO
DESCRIPTION
Spare Parts:
Single Special Length (22mm) NEW D8 Dzus Bolt and 2 Washers.
Single replacement bolt and washer Kit for attaching motorcycle bodywork together.
  • Note: No clip is included with these parts.  You Must have Genuine DZUS PANEX style clips to fit.
  • If you are not sure, we strongly recommend you purchase a replacement clip.
Kit Includes:
1 - 6mm D-Ring Panex D8 Fasteners Length: 22mm
Coating: Zinc Plate with Chromate
2 - Retaining Washers. Material: High density polyethylene
2 extra washers for your tool box
NEW D8 Style Dzus Panex Bolts:
  • New Generation Dzus Panex Bolt that is lighter than original D3 Style Dzus Panex Bolt
  • 100% Compatible with old D3 Mounting Hardware.
  • Thinner main bolt shaft with 6mm Engagement head.
  • New smaller Black retaining washers.
 Dzus Panex D8 - Single Bolt Kit - Silver - 14mm Working Length
Dzus Bolts Specs & Drawing
Dzus Panex D8 Bolt Specs - Drawing
Additional Dzus Bolt Specs / Info

  • (L) Working Length: 22mm
  • Shaft Length : 25mm
  • Grip Range: 13.5mm to 15.4mm
    • Maximum Grip with out washers
    • Minimum Grip using 2 washers
  • Minimum bodywork Hole size: 6.2mm
    • English: 1/4 Inch
Compatible Dzus D8 Hardware Links
IMAGE Description & Link to Product
Dzus Panex D8 Clip on Retainer DZUS PANEX D8 Clip on Retainer
Link: [ CLICK HERE ]
Dzus Panex D8 Rivet On Retainer DZUS PANEX D8 Rivet on Retainer
Link: [ CLICK HERE ]
Dzus Panex D8 Washer - Black DZUS PANEX D8 Retaining Washer
Link: [ CLICK HERE ]
