Dzus Pro D4 Washer Spare Part
Dzus Pro D4 White Retaining Washers 10 Pack Spare Part

Spare Part: White Retaining Washers, 10pcs, DZUS PRO (D4)

$5.00 USD Regular price
/
Shipping calculated at checkout.
  • In stock
  • Inventory on the way
DESCRIPTION FITMENT SHIPPING & RETURNS PART NUMBER(S) ADDITIONAL INFO
DESCRIPTION

SPARE PARTS: 10pack Dzus Pro White Retaining Washers


Kit Includes:
10 - Dzus Pro White Retaining Washers Material: High density polyethylene
Color: White

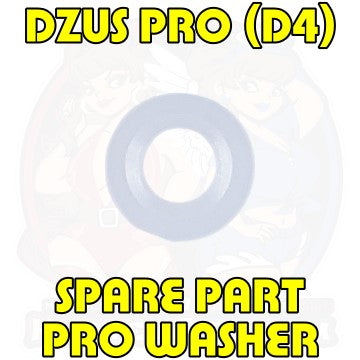

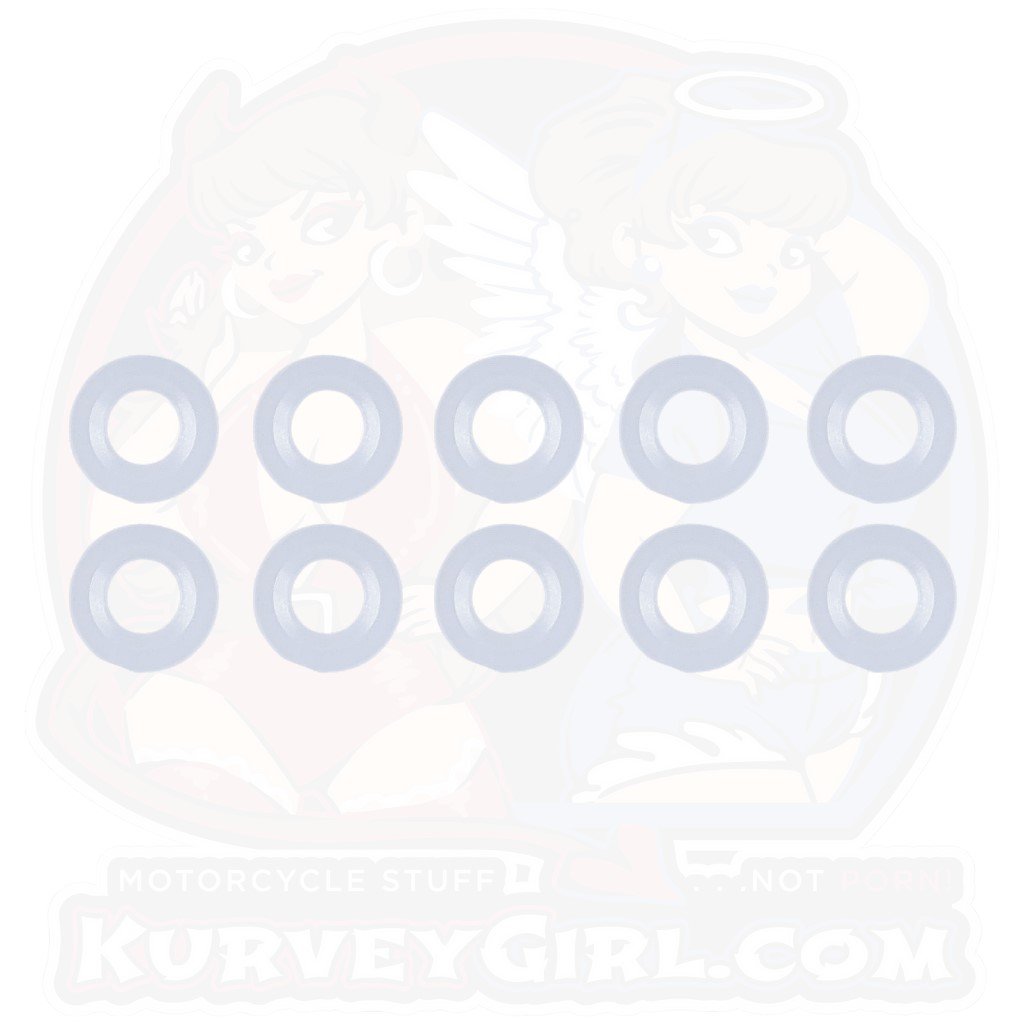

Dzus Pro Retaining Washers Picture: Dzus Pro - Washers - 10pcs Image
NOTICE: Dzus Pro Washers ONLY fit Dzus Pro Bolts
  • WILL NOT FIT D3 or D8 Dzus Panex Bolts.
  • For Dzus Pro Bolt Information, See Below.

Dzus Pro Washer Specs & Drawing
Dzus Pro - Washer Details
Dzus Pro Plastic Retainer Washer Specs / Info:

Outside Diameter: 11.1 mm (0.44 in)
Inside Diameter: 5.4 mm (0.21 in)
Thickness : 0.7 mm (0.03 in)

Fits: Dzus Pro Bolt only

Dzus Pro Washer WILL NOT FIT D3 or D8 Dzus Bolt!!!

Dzus® Pro Bolts Specs & Drawing : For REFERENCE ONLY!!!! This washer kit DOES NOT include any Dzus Pro bolts!

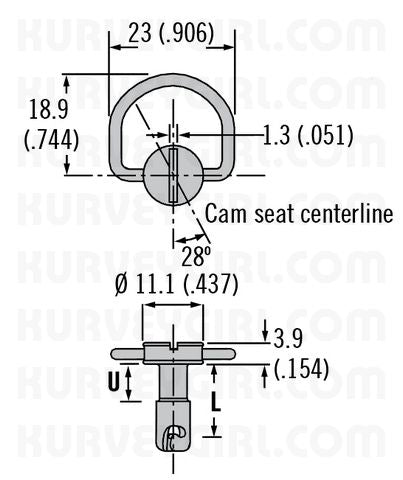

Dzus Pro - Bolt - Drawing
Additional Dzus® Pro Bolt Specs / Info

  • (L) Dimension:
    • -35 Type: 8.9mm (.350in)
    • -45 Type: 11.43mm (.450in)
  • (U) Under Cut Dimension:
    • -35 Type: 3.8mm (.150in)
    • -45 Type: 5.72mm (.225in)
  • Grip Range:
    • - 35 Type: 3.5mm to 5.0mm
    • - 45 Type: 4.0mm to 5.6mm
      • Maximum Grip with out washer
      • Minimum Grip using washer
  • Bodywork Hole size: 6.5mm (0.250in)

Dzus® S-Spring Mounting Diagram  : For REFERENCE ONLY!!!!
Dzus Pro - Rivet-On S-Spring - Install Diagram
Dzus® Pro - Rivet On
Installation Diagram
  • Stud Bolt (Not Included in this kit)
  • Outer Panel (Not Included in this kit)
  • Washer (Retainer)
  • Inner Panel (Frame) (Not Included in this kit)
  • Receptacle (S-Spring) (Not Included in this kit)
  • Pop-Rivets (Not Included in this kit)
