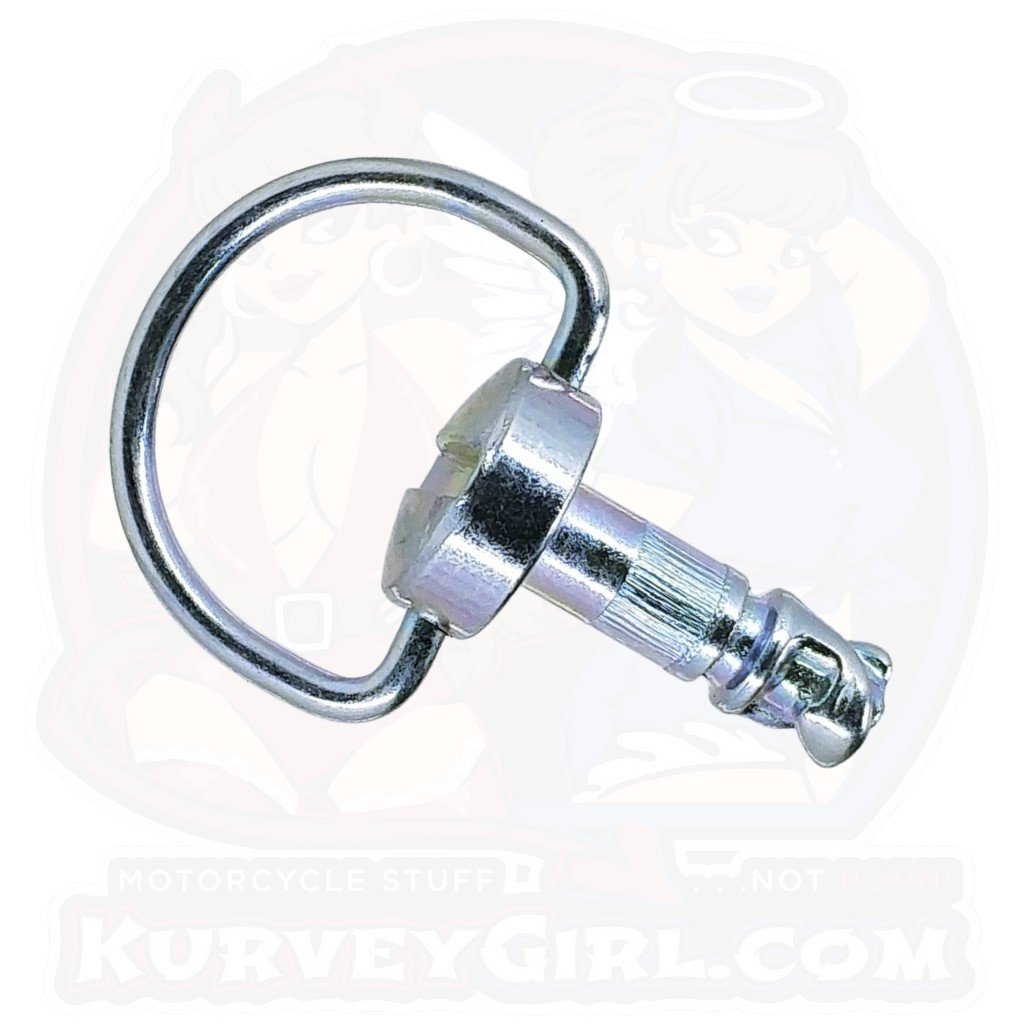

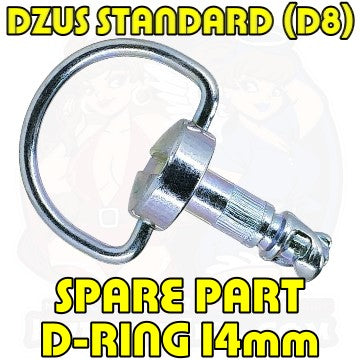

Spare Part: 1pc, DZUS (D8), D-Ring, Silver, WL=14mm
Regular price
$5.00 USD
Sale price
$5.00 USD
Regular price
Sale
Sold out
Unit price
/
per
Shipping
calculated at checkout.
Default Title
Quantity
Error
Quantity must be 1 or more
Add to cart
Adding product to your cart
Share
Share on Facebook
Tweet
Tweet on Twitter
Pin it
Pin on Pinterest
DESCRIPTION
FITMENT
SHIPPING & RETURNS
PART NUMBER(S)
ADDITIONAL INFO
DESCRIPTION
Spare Parts:
Single
OEM Length (14mm)
NEW D8 Dzus Bolt and 2 Washers.
Single replacement bolt and washer Kit for attaching motorcycle bodywork together.
Note: No clip is included with these parts. You Must have Genuine DZUS PANEX style clips to fit.
If you are not sure, we strongly recommend you purchase a replacement clip.
Kit Includes:
1 - 6mm D-Ring Panex D8 Fasteners
Length: 14mm
Coating: Zinc Plate with Chromate
2 - Retaining Washers.
Material: High density polyethylene
2 extra washers for your tool box
NEW D8 Style Dzus Panex Bolts:
New Generation Dzus Panex Bolt that is lighter than original D3 Style Dzus Panex Bolt
100% Compatible with old D3 Mounting Hardware.
Thinner main bolt shaft with 6mm Engagement head.
New smaller Black retaining washers.
Dzus Bolts Specs & Drawing
Additional Dzus Bolt Specs / Info
(L) Working Length: 14mm
Shaft Length : 17mm
Grip Range: 5.5mm to 7.4mm
Maximum Grip with out washers
Minimum Grip using 2 washers
Minimum bodywork Hole size: 6.2mm
English: 1/4 Inch
Compatible Dzus D8 Hardware
Links
Description & Link to Product
DZUS PANEX D8
Clip on Retainer
Link:
[ CLICK HERE ]
DZUS PANEX D8
Rivet on Retainer
Link:
[ CLICK HERE ]
DZUS PANEX D8
Retaining Washer
Link:
[ CLICK HERE ]
