Spare Part: 1pc, DZUS (D8), D-Ring, Black, WL=12mm
Spare Part: 1pc, DZUS (D8), D-Ring, Black, WL=12mm
Spare Part: 1pc, DZUS (D8), D-Ring, Black, WL=12mm
Spare Part: 1pc, DZUS (D8), D-Ring, Black, WL=12mm

Spare Part: 1pc, DZUS (D8), D-Ring, Black, WL=12mm

$5.00 USD
/
Shipping calculated at checkout.
DESCRIPTION FITMENT SHIPPING & RETURNS PART NUMBER(S) ADDITIONAL INFO
DESCRIPTION

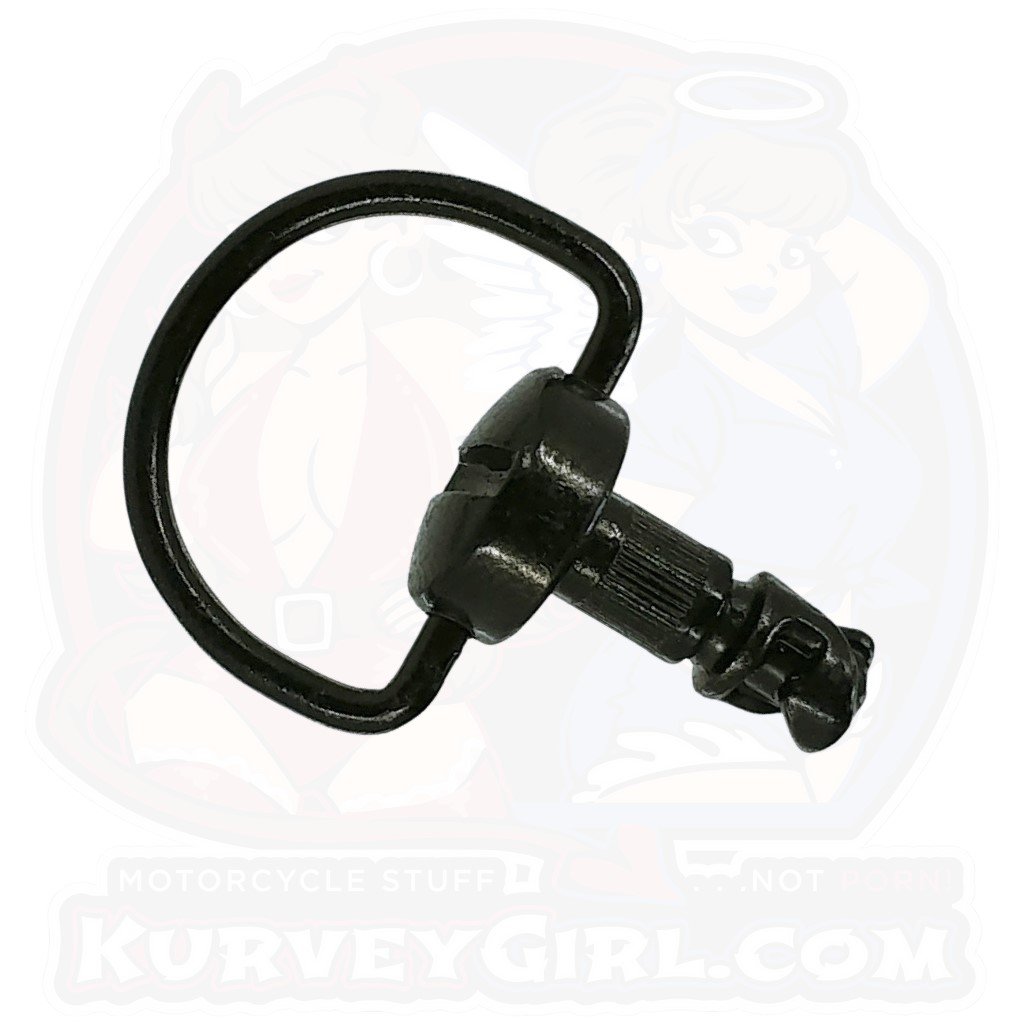

SPARE PARTS: One (1) Black Dzus Bolt for Fiberglass Bodywork.
Single replacement bolt and washer Kit for attaching motorcycle bodywork together.
  • Note: No clip is included with these parts.  You Must have Genuine DZUS PANEX style clips to fit.
  • If you are not sure, we strongly recommend you purchase a replacement clip.
Kit Includes:
1 - 6mm D-Ring Panex D8 Fasteners Length: 12mm
Coating: Zinc Plate with Black Chromate
Note: Black Chromate is not a non-scratch finish
2 - Retaining Washers. Material: High density polyethylene
Color: Black
Dzus Bolts Specs & Drawing
Dzus Panex D8 Bolt Specs - Drawing
Additional Dzus Bolt Specs / Info

  • (L) Working Length: 12mm
  • Shaft Length : 15mm
  • Grip Range: 3.5mm to 5.4mm
    • Maximum Grip with out washers
    • Minimum Grip using 2 washers
  • Minimum bodywork Hole size: 6.2mm
    • English: 1/4 Inch
Compatible Dzus D8 Hardware Links
IMAGE Description & Link to Product
Dzus Panex D8 Clip on Retainer DZUS PANEX D8 Clip on Retainer
Link: [ CLICK HERE ]
Dzus Panex D8 Rivet On Retainer DZUS PANEX D8 Rivet on Retainer
Link: [ CLICK HERE ]
Dzus Panex D8 Washer - Black DZUS PANEX D8 Retaining Washer
Link: [ CLICK HERE ]
