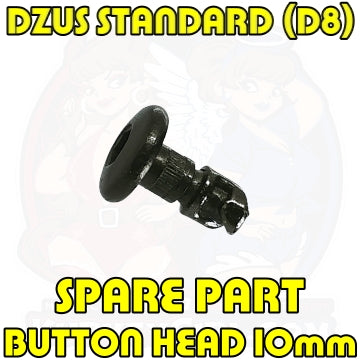

Spare Part: 1pc, DZUS (D8), Button Head, Black, WL=10mm
Spare Part: 1pc, DZUS (D8), Button Head, Black, WL=10mm
Spare Part: 1pc, DZUS (D8), Button Head, Black, WL=10mm
Spare Part: 1pc, DZUS (D8), Button Head, Black, WL=10mm

Spare Part: 1pc, DZUS (D8), Button Head, Black, WL=10mm

$5.00 USD
/
Shipping calculated at checkout.
FITMENT WARNING: Some Carbon Fiber motorcycle bodywork is not true Carbon Fiber, but a Carbon Fiber laid over fiberglass bodywork.   These bolts are design to work with Pro Grade Carbon Fiber bodywork that has a panel thickness of 1.25mm or thinner!!!
DESCRIPTION FITMENT SHIPPING & RETURNS PART NUMBER(S) ADDITIONAL INFO
DESCRIPTION
SPARE PARTS: Single Black Pro Grade Carbon Fiber Length (10mm) Button Head Dzus Bolt and 2 Washers.
FITMENT WARNING: Some Carbon Fiber motorcycle bodywork is not true Carbon Fiber, but a Carbon Fiber laid over fiberglass bodywork.   These bolts are design to work with Pro Grade Carbon Fiber bodywork that has a panel thickness of 1.25mm or thinner!!!
Single replacement bolt and washer Kit for attaching motorcycle bodywork together.
  • Note: No clip is included with these parts.  You Must have Genuine DZUS PANEX style clips to fit.
  • If you are not sure, we strongly recommend you purchase a replacement clip.
Kit Includes:
1 - 6mm Button head Panex Fasteners Length: 10mm
Coating: Zinc Plate with Black Chromate
Note: Black Chromate is not a non-scratch finish
2 - Retaining Washers. Material: High density polyethylene
NEW D8 Style Dzus Panex Bolts:
  • New Generation Dzus Panex Bolt that is lighter than original D3 Style Dzus Panex Bolt
  • 100% Compatible with old D3 Mounting Hardware.
  • Thinner main bolt shaft with 6mm Engagement head.
  • New smaller Black retaining washers.
 Dzus Panex D8 - Single Bolt - Black - Button - 10mm Working Length
Dzus Bolts Specs & Drawing
Dzus Panex D8 Button Head Bolt Specs - Drawing
Additional Dzus Bolt Specs / Info

(L) Working Length: 10mm
Shaft Length : 12mm

Grip Range: 1.5mm to 3.4mm
Maximum Grip with out washers
Minimum Grip using 2 washers

Minimum bodywork Hole size: 7.2mm
English: 9/32nd Inch
Compatible Dzus D8 Hardware Links
IMAGE Description & Link to Product
Dzus Panex D8 Clip on Retainer DZUS PANEX D8 Clip on Retainer
Link: [ CLICK HERE ]
Dzus Panex D8 Rivet On Retainer DZUS PANEX D8 Rivet on Retainer
Link: [ CLICK HERE ]
Dzus Panex D8 Washer - Black DZUS PANEX D8 Retaining Washer
Link: [ CLICK HERE ]
FITMENT
Dzus Bolts Specs & Drawing
Dzus Panex D8 Button Head Bolt Specs - Drawing
Additional Dzus Bolt Specs / Info

(L) Working Length: 10mm
Shaft Length : 12mm

Grip Range: 1.5mm to 3.4mm
Maximum Grip with out washers
Minimum Grip using 2 washers

Minimum bodywork Hole size: 7.2mm
English: 9/32nd Inch
SHIPPING & RETURNS
PART NUMBER(S)
ADDITIONAL INFO
FITMENT WARNING: Some Carbon Fiber motorcycle bodywork is not true Carbon Fiber, but a Carbon Fiber laid over fiberglass bodywork.   These bolts are design to work with Pro Grade Carbon Fiber bodywork that has a panel thickness of 1.25mm or thinner!!!
