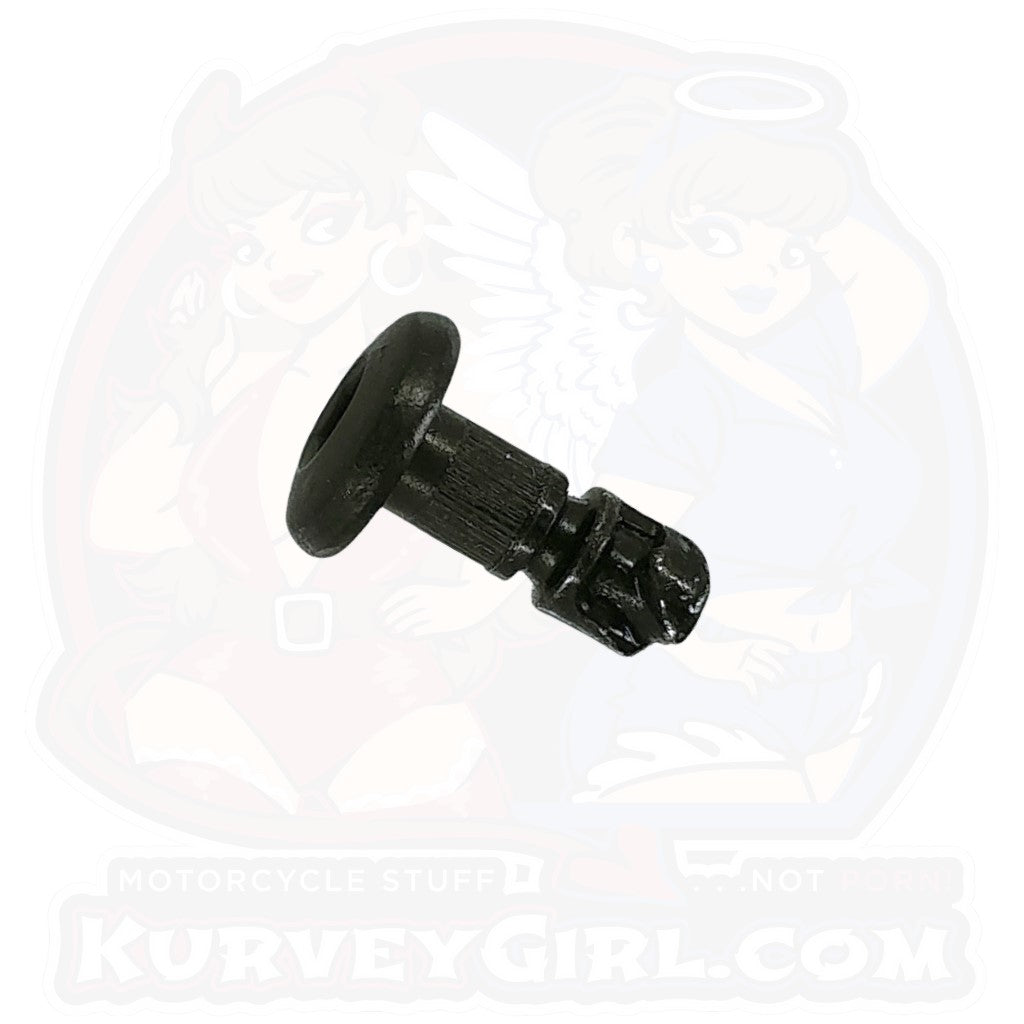

SPARE PARTS: Single Black Fiberglass Length (12mm) Button Head Dzus Bolt and 2 Washers.
Single replacement bolt and washer Kit for attaching motorcycle bodywork together.
  • Note: No clip is included with these parts.  You Must have Genuine DZUS PANEX style clips to fit.
  • If you are not sure, we strongly recommend you purchase a replacement clip.
Kit Includes:
1 - 6mm Button head Panex Fasteners Length: 12mm
Coating: Zinc Plate with Black Chromate
Note: Black Chromate is not a non-scratch finish
2 - Retaining Washers. Material: High density polyethylene
NEW D8 Style Dzus Panex Bolts:
  • New Generation Dzus Panex Bolt that is lighter than original D3 Style Dzus Panex Bolt
  • 100% Compatible with old D3 Mounting Hardware.
  • Thinner main bolt shaft with 6mm Engagement head.
  • New smaller Black retaining washers.
 Dzus Panex D8 - Single Bolt - Black - Button - 14mm Working Length
Dzus Bolts Specs & Drawing
Dzus Panex D8 Button Head Bolt Specs - Drawing
Additional Dzus Bolt Specs / Info

(L) Working Length: 12mm
Shaft Length : 15mm

Grip Range: 3.5mm to 5.4mm
Maximum Grip with out washers
Minimum Grip using 2 washers

Minimum bodywork Hole size: 7.2mm
English: 9/32nd Inch
