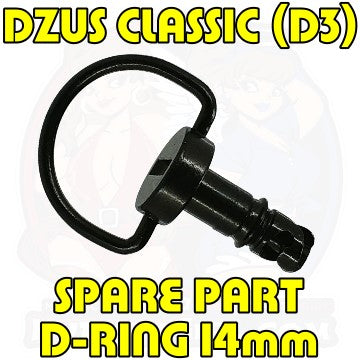

Dzus Classic D3 Spare Part D Ring Bolt 14 mm Black
Dzus D3 Spare Part 14 mm D Ring Bolt Black

Spare Part: 1pc, DZUS CLASSIC (D3), D-Ring, Black, WL=14mm

$10.00 USD Regular price
/
Shipping calculated at checkout.
  • In stock
  • Inventory on the way
DESCRIPTION FITMENT SHIPPING & RETURNS PART NUMBER(S) ADDITIONAL INFO
DESCRIPTION
SPARE PARTS: One (1) Black OEM Length (14mm) D-Ring Dzus Bolt .

Single replacement bolt and washer Kit for attaching motorcycle bodywork together.
  • Note: No clip is included with these parts.  You Must have Genuine DZUS PANEX style clips to fit.
  • If you are not sure, we strongly recommend you purchase a replacement clip.
  • 14mm Dzus bolt is a DIRECT mechanical replacement for Yamaha Part Number 3FV-28386-00-00.



Kit Includes:
1 - 6mm D-Ring Panex Fasteners Working Length: 14mm
Coating: Zinc Plate with Black Chromate
Note: Black Chromate is not a non-scratch finish
2 - Retaining Washers. Material: High density polyethylene
OLD D3 Style Dzus Panex Bolts:
  • Previous Generation D3 Style Dzus Panex Bolt





Dzus Bolts Specs & Drawing
Additional Dzus Bolt Specs / Info

(L) Working Length: 14mm
Shaft Length : 17mm

Grip Range: 5.5mm to 7.4mm
Maximum Grip with out washers
Minimum Grip using 2 washers

Minimum bodywork Hole size: 7.2mm
English: 9/32nd Inch





Yamaha Part and Application Info: [NOTE: Yamaha Part OEM Finish is a CHROME finish]
Equivalent Yamaha P/N's:

Main P/N: 3FV-28386-00-00
3FV-28386-00-00
3FV 28386 00 00
3FV283860000
3FV28 3860000
3FV283 860000
3F V2838 60000
3FV2 8386 0000
3FV 283 860 000
3F V2 83 86 00 00
Yamaha Fitment List (Partial List): 1999 YZFR7L YZFR7 COWLING 1
2000 TTR125LWM SIDE COVER
2000 TTR125M SIDE COVER
2000 TTR125MC SIDE COVER
2001 TTR125LN SIDE COVER
2001 TTR125N SIDE COVER
2002 TTR125LPC SIDE COVER
2002 TTR125P SIDE COVER
2003 TTR125ER TTR125E SIDE COVER
2003 TTR125LER TTR125E SIDE COVER
2003 TTR125LR TTR125 SIDE COVER
2003 TTR125R TTR125 SIDE COVER
2003 WR250FR WR250 INTAKE
2003 WR450FR INTAKE
2004 TTR125ES TT-R125E SIDE COVER
2004 TTR125LES TT-R125E SIDE COVER
2004 TTR125LS TT-T125 SIDE COVER
2004 TTR125S TT-R125 SIDE COVER
2004 WR250FS WR250F INTAKE
2004 WR450FS WR450F INTAKE
2005 TTR125ET TTR125E SIDE COVER
2005 TTR125LET TTR125LE SIDE COVER
2005 TTR125LT TTR125L SIDE COVER
2005 WR250FT WR250F INTAKE
2005 WR450FT WR450F INTAKE
2006 TTR125EV TTR125E ELECTRIC SIDE COVER
2006 TTR125LEV TTR125LE ELECTRIC SIDE COVER
2006 TTR125LV TTR125L SIDE COVER
2006 WR250FV WR250F INTAKE
2006 WR450FV WR450F INTAKE
2007 PZ50FXW PHAZER FX INTAKE
2007 PZ50GTW PHAZER GT INTAKE
2007 PZ50MW PHAZER MOUNTAIN LITE INTAKE
2007 PZ50VTW VENTURE LITE INTAKE
2007 PZ50W PHAZER INTAKE
2007 TTR125EW TTR125E SIDE COVER
2007 TTR125LEW TTR125LE SIDE COVER
2007 TTR125LW TTR125L SIDE COVER
2007 WR250FW WR250F INTAKE
2007 WR450FW WR450F INTAKE
2008 FX10MTRAX FX NYRO RTX 40TH ANNIVERSARY SHROUD
2008 FX10MTRX FX NYTRO MX SHROUD
2008 FX10MTX FX NYTRO MTX SHROUD
2008 FX10RTRAX FX NYRO RTX 40TH ANNIVERSARY SHROUD
2008 FX10RTRX FX NYRO RTX SHROUD
2008 FX10RTX FX NYRO RTX NO REVERSE SHROUD
2008 FX10X NYTRO SHROUD
2008 PZ50GTX PHAZER GT SHROUD
2008 PZ50GTX PHAZER GT INTAKE
2008 PZ50MTX PHAZER MOUNTAIN LITE INTAKE
2008 PZ50MTX PHAZER MOUNTAIN LITE SHROUD
2008 PZ50RTX PHAZER RTX SHROUD
2008 PZ50RTX PHAZER RTX INTAKE
2008 PZ50VTX VENTURE LITE INTAKE
2008 PZ50VTX VENTURE LITE SHROUD
2008 PZ50X PHAZER INTAKE
2008 PZ50X PHAZER SHROUD
2008 RS90GTAX RS VECTOR 40TH ANNIVERSARY SHROUD
2008 RS90GTX RS VECTOR LTX SHROUD
2008 RS90LTGTX RS VECTOR LTX GT SHROUD
2008 RS90LTX RS VECTOR LTX SHROUD
2008 RS90RX RS VECTOR SHROUD
2008 RX10LTX APEX LTX SHROUD
2008 RX10RTRX APEX RTX ER SHROUD
2008 TTR125EX TTR125E SIDE COVER
2008 TTR125LEX TTR125LE SIDE COVER
2008 TTR125LX TTR125L SIDE COVER
2008 WR250FX WR250F INTAKE
2008 WR450FX WR450F INTAKE





Compatible D3 Dzus Panex Hardware Links
IMAGE Description & Link to Product
Dzus Panex D8 Clip on Retainer DZUS PANEX D8 Clip on Retainer
Link: [ CLICK HERE ]
Dzus Panex D8 Rivet On Retainer DZUS PANEX D8 Rivet on Retainer
Link: [ CLICK HERE ]
Dzus Panex D3 Washer - White DZUS PANEX D3 Retaining Washer
Link: [ CLICK HERE ]
