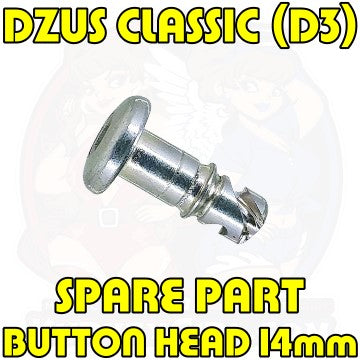

Dzus Classic D3 Spare Part Button Head Bolt 14 mm Silver
Dzus D3 Spare Part 14 mm Button Head Bolt Silver
Dzus Classic D3 Spare Part Button Head Bolt 14 mm Silver
Dzus D3 Spare Part 14 mm Button Head Bolt Silver

Spare Part: 1pc, DZUS CLASSIC (D3), Button Head, Silver, WL=14mm

$9.00 USD
/
Shipping calculated at checkout.
DESCRIPTION FITMENT SHIPPING & RETURNS PART NUMBER(S) ADDITIONAL INFO
DESCRIPTION
SPARE PARTS: Single OEM Length (14mm) Button Head Dzus Bolt and 2 Washers.
Single replacement bolt and washer Kit for attaching motorcycle bodywork together.
  • Note: No clip is included with these parts.  You Must have Genuine DZUS PANEX style clips to fit.
  • If you are not sure, we strongly recommend you purchase a replacement clip.
Kit Includes:
1 - 6mm Button head Panex Fasteners Length: 14mm
Coating: Zinc Plate with Chromate
2 - Retaining Washers. Material: High density polyethylene
OLD D3 Style Dzus Panex Bolts:
  • Previous Generation D3 Style Dzus Panex Bolt
Dzus Bolts Specs & Drawing
Additional Dzus Bolt Specs / Info

(L) Working Length: 14mm
Shaft Length : 17mm

Grip Range: 5.5mm to 7.4mm
Maximum Grip with out washers
Minimum Grip using 2 washers

Minimum bodywork Hole size: 7.2mm
English: 9/32nd Inch
Compatible D3 Dzus Panex Hardware Links
IMAGE Description & Link to Product
Dzus Panex D8 Clip on Retainer DZUS PANEX D8 Clip on Retainer
Link: [ CLICK HERE ]
Dzus Panex D8 Rivet On Retainer DZUS PANEX D8 Rivet on Retainer
Link: [ CLICK HERE ]
Dzus Panex D3 Washer - White DZUS PANEX D3 Retaining Washer
Link: [ CLICK HERE ]
