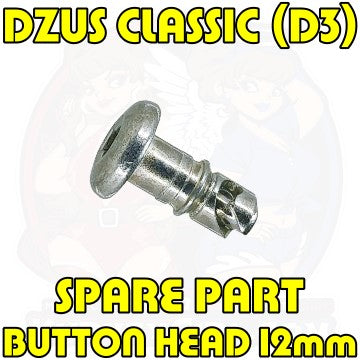

Spare Part: 1pc, DZUS CLASSIC (D3), Button Head, Silver, WL=12mm
Regular price
$8.50 USD
Sale price
$8.50 USD
Regular price
Sale
Sold out
Unit price
/
per
Shipping
calculated at checkout.
Default Title - Sold out
Quantity
Error
Quantity must be 1 or more
Sold out
Adding product to your cart
Share
Share on Facebook
Tweet
Tweet on Twitter
Pin it
Pin on Pinterest
DESCRIPTION
FITMENT
SHIPPING & RETURNS
PART NUMBER(S)
ADDITIONAL INFO
DESCRIPTION

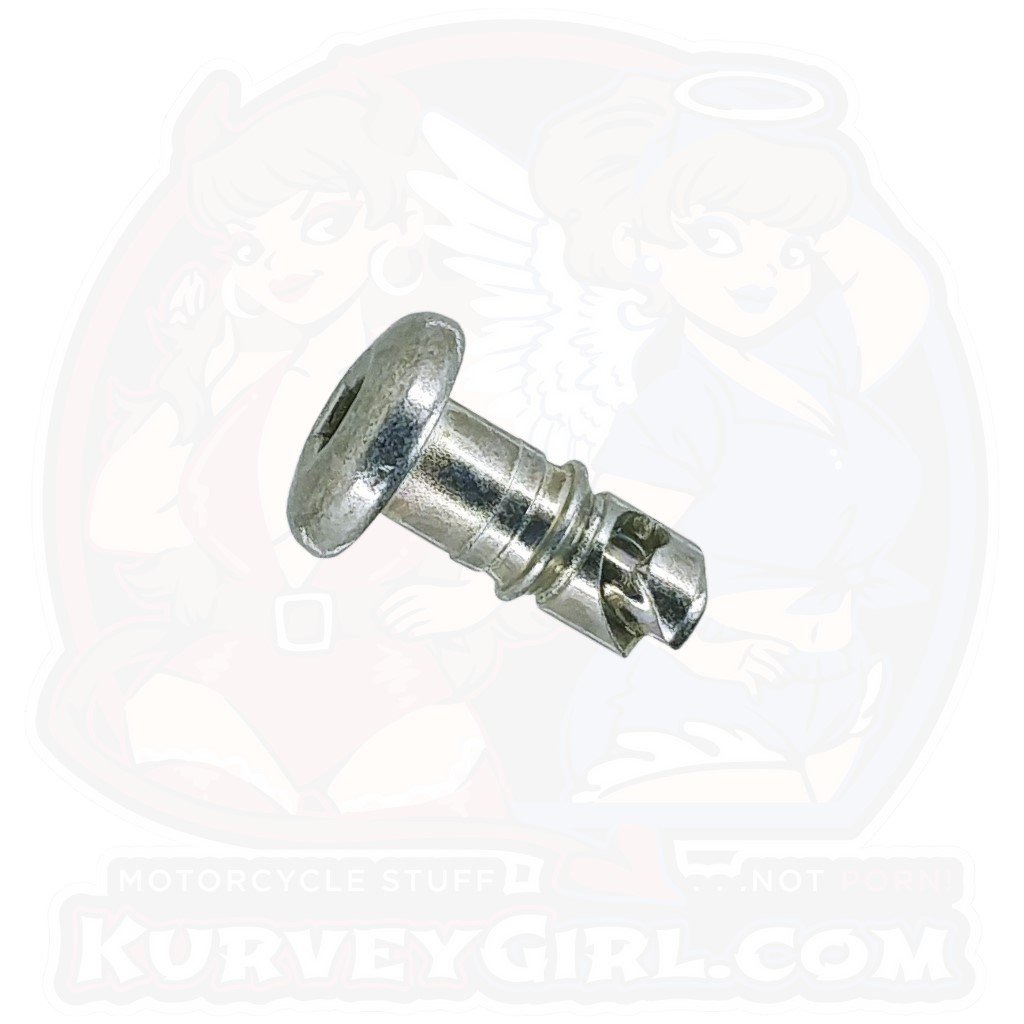

SPARE PARTS: One (1) Silver 12mm Length Button Head Dzus Bolt and 2 Washers.
Single replacement bolt and washer Kit for attaching motorcycle bodywork together.
Note: No clip is included with these parts. You Must have Genuine DZUS PANEX style clips to fit.
If you are not sure, we strongly recommend you purchase a replacement clip.
Kit Includes:
1 - 6mm Button head Panex Fasteners
Length: 12mm
Coating: Zinc Plate with Chromate
2 - Retaining Washers.
Material: High density polyethylene
OLD D3 Style Dzus Panex Bolts:
Previous Generation D3 Style Dzus Panex Bolt
Dzus Bolts Specs & Drawing
Additional Dzus Bolt Specs / Info
(L) Working Length: 12mm
Shaft Length : 15mm
Grip Range: 3.5mm to 5.4mm
Maximum Grip with out washers
Minimum Grip using 2 washers
Minimum bodywork Hole size: 7.2mm
English: 9/32nd Inch
Compatible D3 Dzus Panex Hardware
Links
Description & Link to Product
DZUS PANEX D8
Clip on Retainer
Link:
[ CLICK HERE ]
DZUS PANEX D8
Rivet on Retainer
Link:
[ CLICK HERE ]
DZUS PANEX D3
Retaining Washer
Link:
[ CLICK HERE ]
