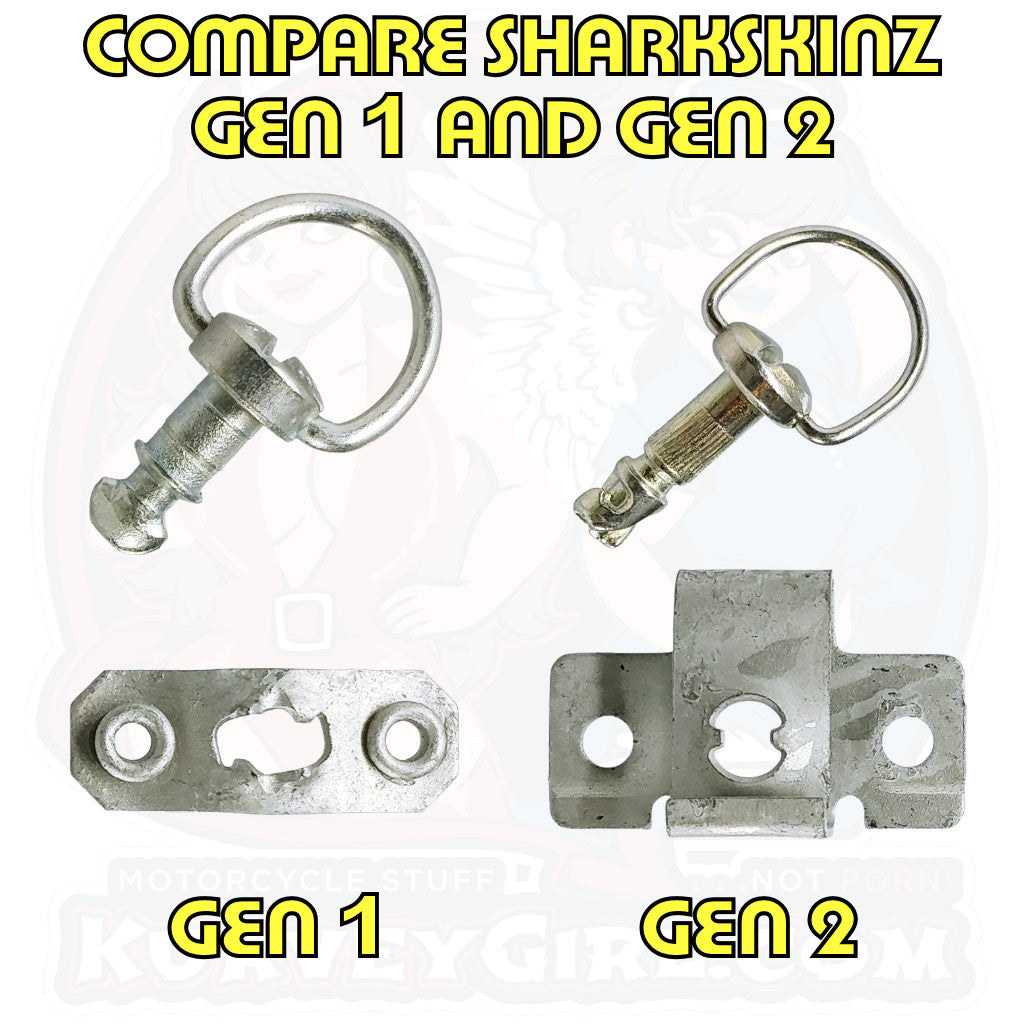

Dzus Sharkskinz iOneMoto Compare Gen 1 vs Gen 2 D Ring Bolt Rivet Plate
Dzus Bolt Kit 2020/06 Sharkskinz IOneMoto 6 Pack
Dzus SharkSkinz IOneMoto Bolt Kit Full 2020 Picture Image
Dzus SharkSkinz iOneMoto Spring Plate 2020 Drawing Dimensions Measurement
Dzus SharkSkinz IOneMoto Bolt 2020 Drawing Size Dimensions Image
Dzus Sharkskinz iOneMoto Compare Gen 1 vs Gen 2 D Ring Bolt Rivet Plate

SHARKSKINZ iOneMoto - Style Dzus : 6pc Kit (2020/06+)

$49.00 USD
/
Shipping calculated at checkout.
  • In stock
  • Inventory on the way
Compatible replacement hardware for
Post June 2020 SharkSkinz / iOneMoto Bodywork.
For Pre June 2020 SharkSkinz hardware, click on the following links for compatible hardware.
[Link to Pre June 2020 SharkSkinz Style Dzus Bolt Hardware Kit]
[Link to Pre June 2020 SharkSkinz Style Dzus Spring Plate Kit]



DESCRIPTION FITMENT SHIPPING & RETURNS PART NUMBER(S) ADDITIONAL INFO
DESCRIPTION
Complete 6pc Dzus kit for Sharkskinz iOneMoto Bodywork.
  • Kit is designed to match the Post June 2020 Sharkskinz / iOneMoto style Dzus kits
  • Note: Sharkskinz / iOneMoto Style Dzus Bolts and Spring Plates ARE NOT compatible with other Dzus fasteners!!!
Kit Includes:
1 - Sharkskinz / iOneMoto Compatible Dzus Bolt Material: Steel
Finish: Zinc Plated
6 - Sharkskinz / iOneMoto Compatible Rivet Plate Material: Steel
Finish: Zinc immersion coating
12 - Pop Rivets Material: Aluminum
12 - Retainer Washers
  • 6 Black Plastic (Material: Nylon)
  • 6 Metal Locking Washer (Material: Stainless Steel)


SharkSkinziOneMoto Post June 2020 6pc Piece Dzus Kit​

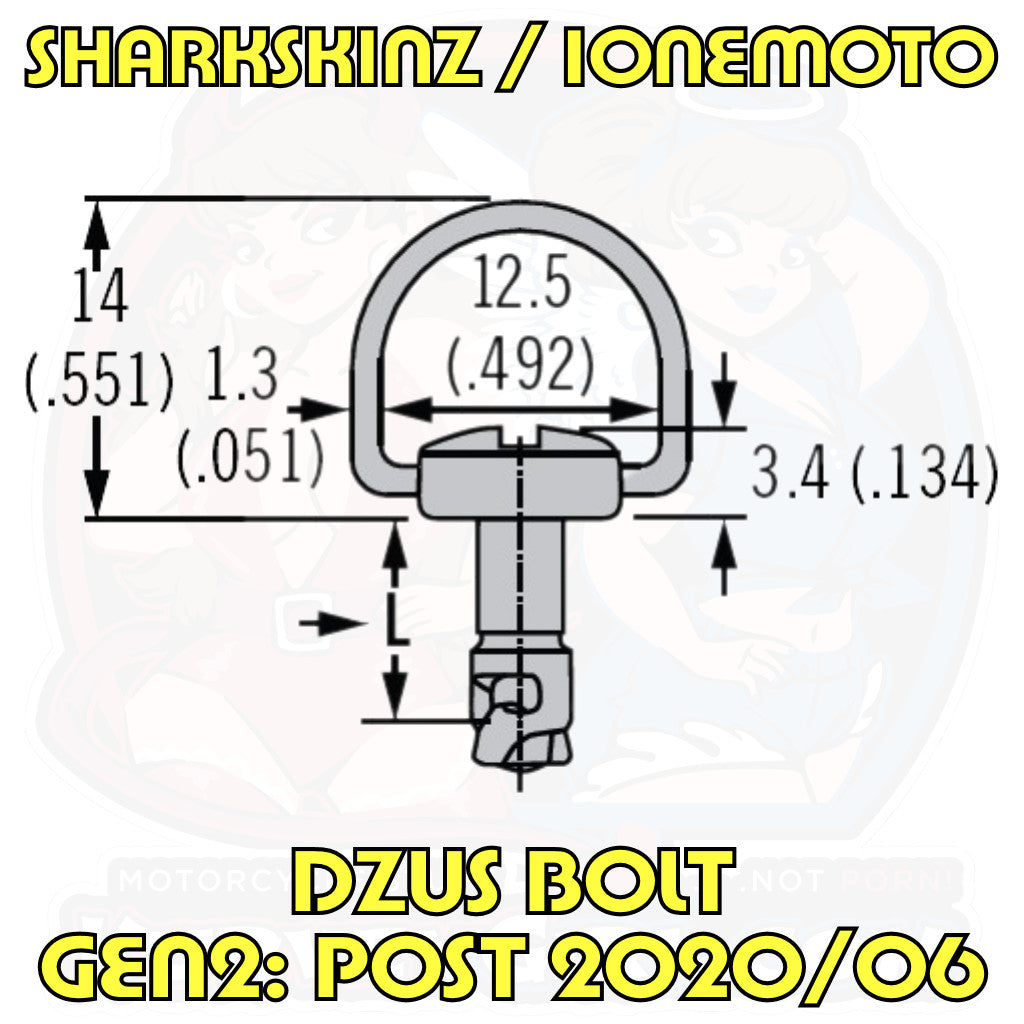

Sharkskinz Compatible Dzus Bolt Drawing:


Sharkskinz iOneMoto - Compatable Dzus Bolt DrawingKurveyGirl​



Dzus Bolt Specs / Info

Head Diameter: 9.5mm / 0.375in
Ring Diameter: 15.1mm / 0.5in

Dzus Bolt only works with SHARKSKINZ / iOneMoto Post June 2020 style Dzus Rivet Plates.

Dzus Bolt IS NOT COMPATIBLE with:
  • Pre June 2020 Sharkskinz Dzus Hardware.
  • Dzus Panex - D3 - 1st Generation.
  • Dzus Panex - D8 - 2nd Generation.
  • Dzus Pro.

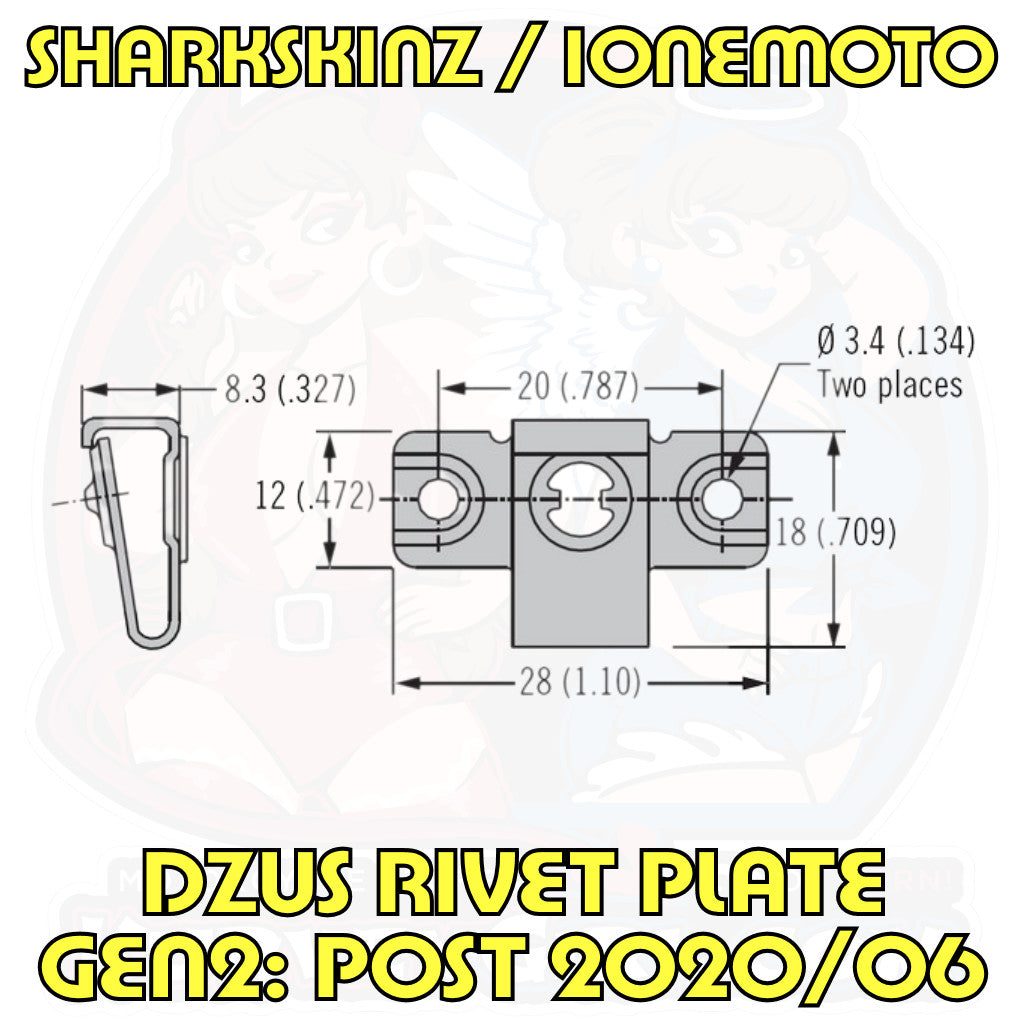

Sharkskinz Compatible Spring Plate:


Sharkskinz iOneMoto Spring Rivet Plate Dimensionskurveygril​
Rivet Plate Specs / Info

Pop Rivet Spacing: 20mm / 0.787in

Spring Plate only works with SHARKSKINZ / iOneMoto Post June 2020 style Dzus Bolts.

Spring Plate IS NOT COMPATIBLE with:
  • Pre June 2020 Sharkskinz Dzus Hardware.
  • Dzus Panex - D3 - 1st Generation.
  • Dzus Panex - D8 - 2nd Generation.
  • Dzus Pro.
FITMENT



Sharkskinz Compatible Dzus Bolt Drawing:


Sharkskinz iOneMoto - Compatable Dzus Bolt DrawingKurveyGirl​



Dzus Bolt Specs / Info

Head Diameter: 9.5mm / 0.375in
Ring Diameter: 15.1mm / 0.5in

Dzus Bolt only works with SHARKSKINZ / iOneMoto Post June 2020 style Dzus Rivet Plates.

Dzus Bolt IS NOT COMPATIBLE with:
  • Pre June 2020 Sharkskinz Dzus Hardware.
  • Dzus Panex - D3 - 1st Generation.
  • Dzus Panex - D8 - 2nd Generation.
  • Dzus Pro.
Sharkskinz Compatible Spring Plate:


Sharkskinz iOneMoto Spring Rivet Plate Dimensionskurveygril​
Rivet Plate Specs / Info

Pop Rivet Spacing: 20mm / 0.787in

Spring Plate only works with SHARKSKINZ / iOneMoto Post June 2020 style Dzus Bolts.

Spring Plate IS NOT COMPATIBLE with:
  • Pre June 2020 Sharkskinz Dzus Hardware.
  • Dzus Panex - D3 - 1st Generation.
  • Dzus Panex - D8 - 2nd Generation.
  • Dzus Pro.
