KurveyGirl.com Universal Reservoir Bracket
Inspired by the "Ladybird" Bracket.
Our "Ladybird" style bracket is true to the original shape and function of the classic bracket. Made from high quality stainless steel that is strong but still can be shaped by YOU into your own CUSTOM Reservoir bracket. As always, $1 of every order goes to the Road Racing World Airfence fund.
Reservoir Bracket Kit Information:
Material: Stainless Steel Construction
Finish: Matte top finish with Machining Marks along the sides and mounting hole.
Part Length: Approximately 4 Inches Long

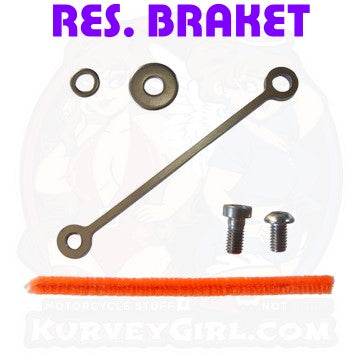

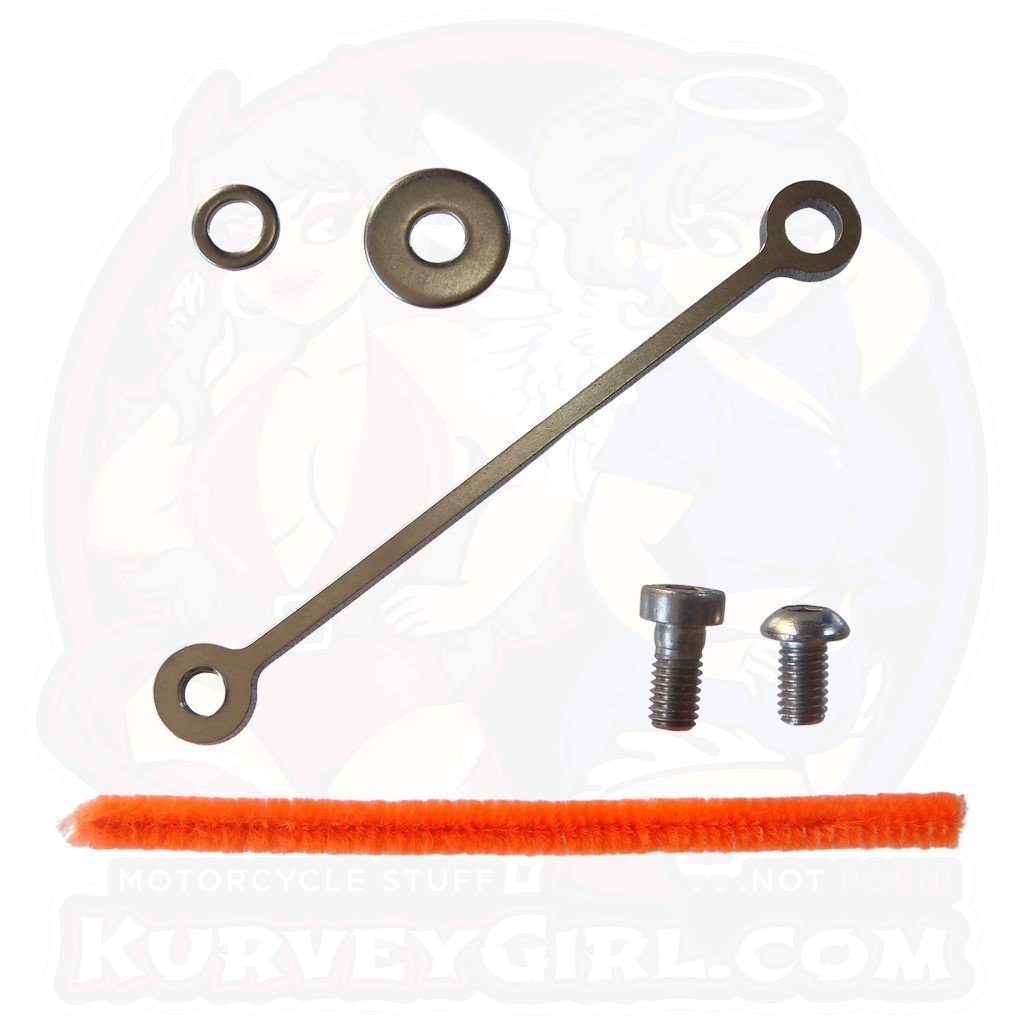

Kit Includes:
4 Inch Bendable Reservoir Bracket
M6 Stainless Steel Button Head Fastener
M6 Stainless Steel Low Profile Cap Head Fastener
Note: Fits most reservoir mounting holes. Anti Vibration rubber washers may require a longer bolt.
Large Stainless Steel Washer
Small Stainless Steel Washer
Note: Fits most reservoir mounting application.
Flexible "Pipe Cleaner" to help plan your bends
Approximately 4 inches long

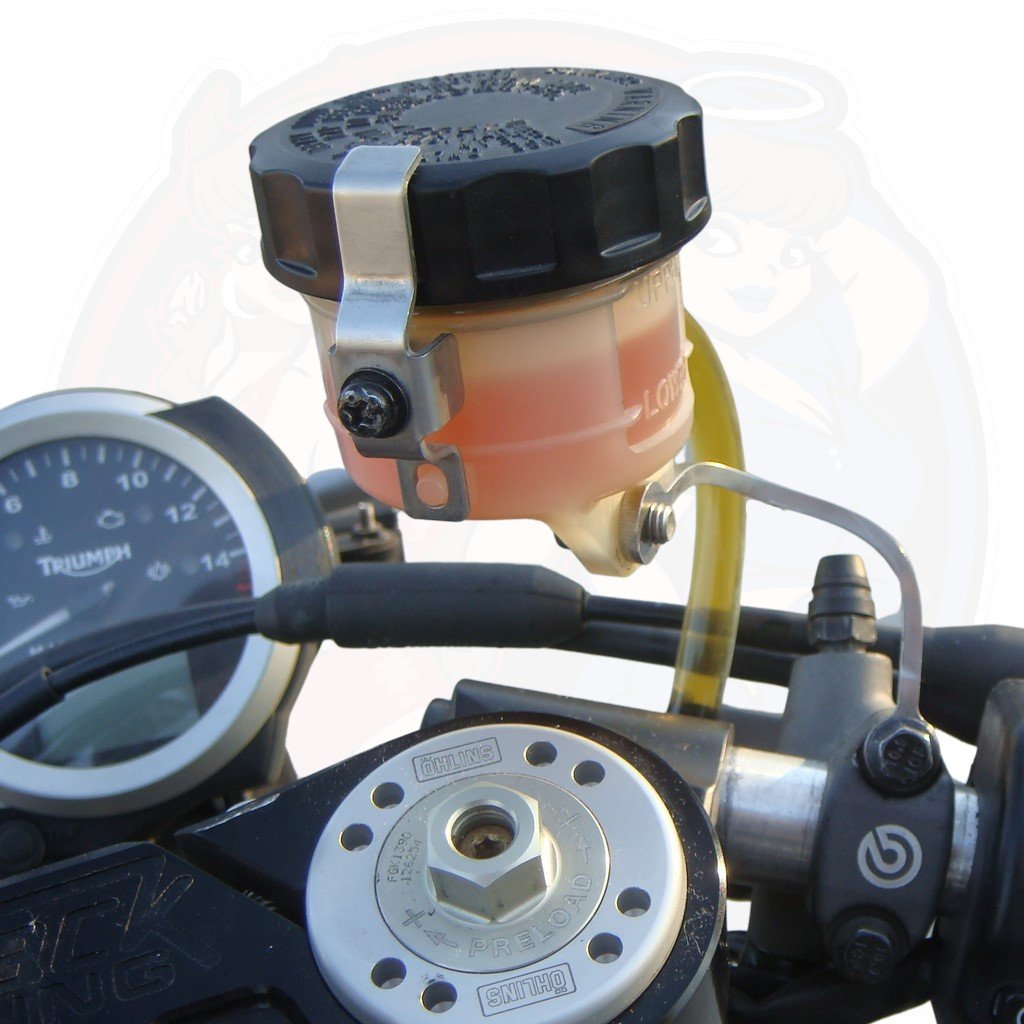

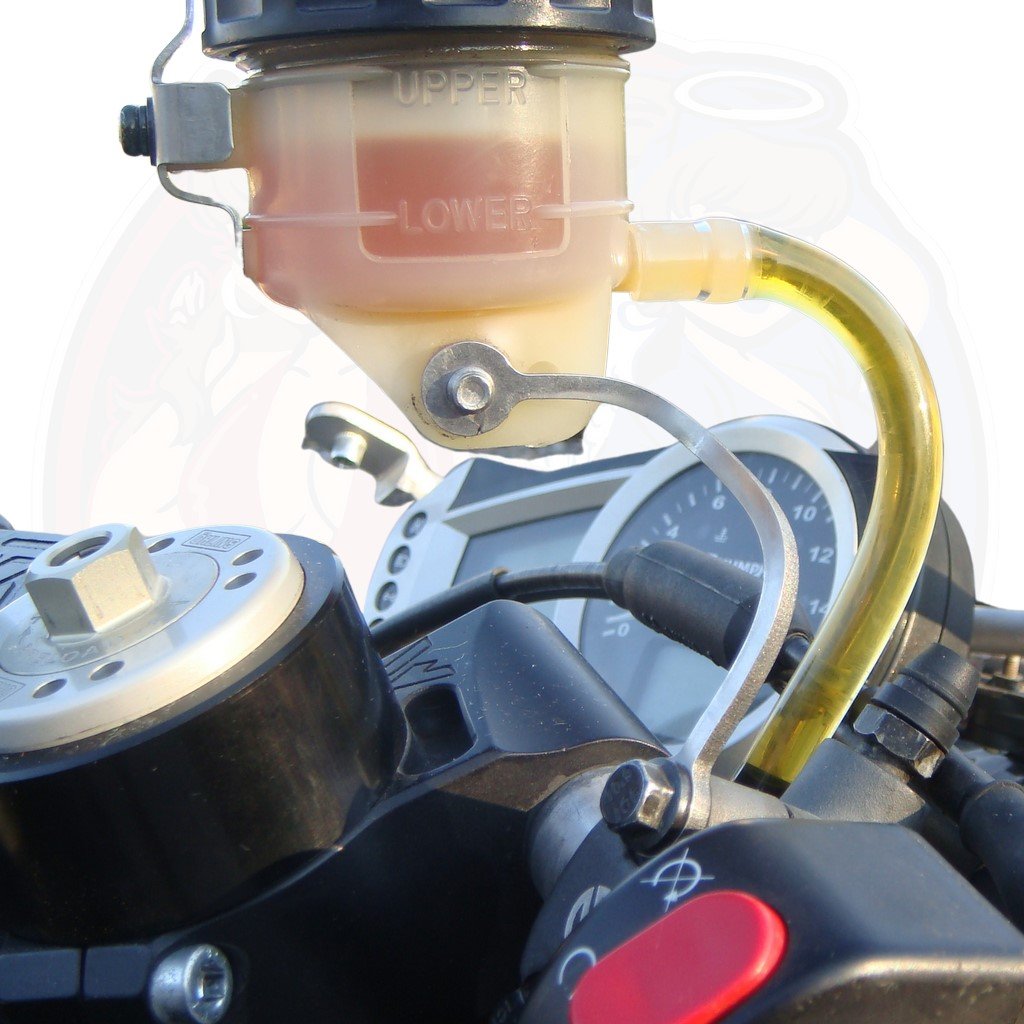

Example Mounting on a Triumph Race Motorcycle.
Reservoir Bracket does not come pre bent. You create your own custom mount for your specific application.
FAQ: How to I bend this bracket into my own personal reservoir mount.
1: The use of a vice with soft Jaws will help bend the bracket.
2: Use the included "Pipe Cleaner" to create your planned shape before you start bending.
3: Bracket is very stiff, and while possible to bend with hand pressure the effort will be VERY HIGH
4: Use a "Rod" as a bending point to create a nice radius with your bends.
* Note: Not using a "Rod" to bend might crease or crack the bracket.
5: The use of FLAT JAWED pliers can help aid in bending the bracket near the two mounting tabs.
* Note: Pliers with "Teeth" May leave marks in the bracket!!!
6: DO NOT BEND WHILE attached to master cylinder mount.
* We are not responsible for damage to your master cylinder!!!
