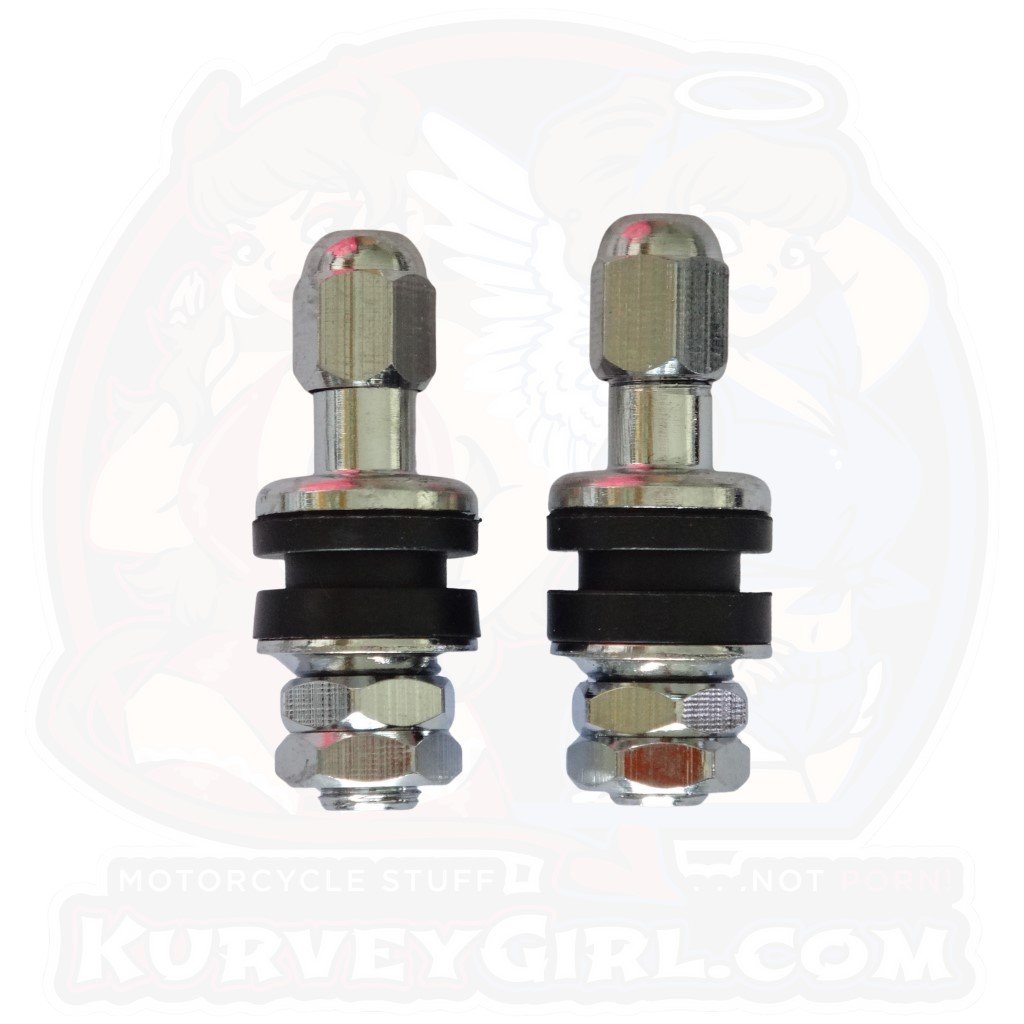

Valve Stem Set Enkei Short Metal 2 Pack

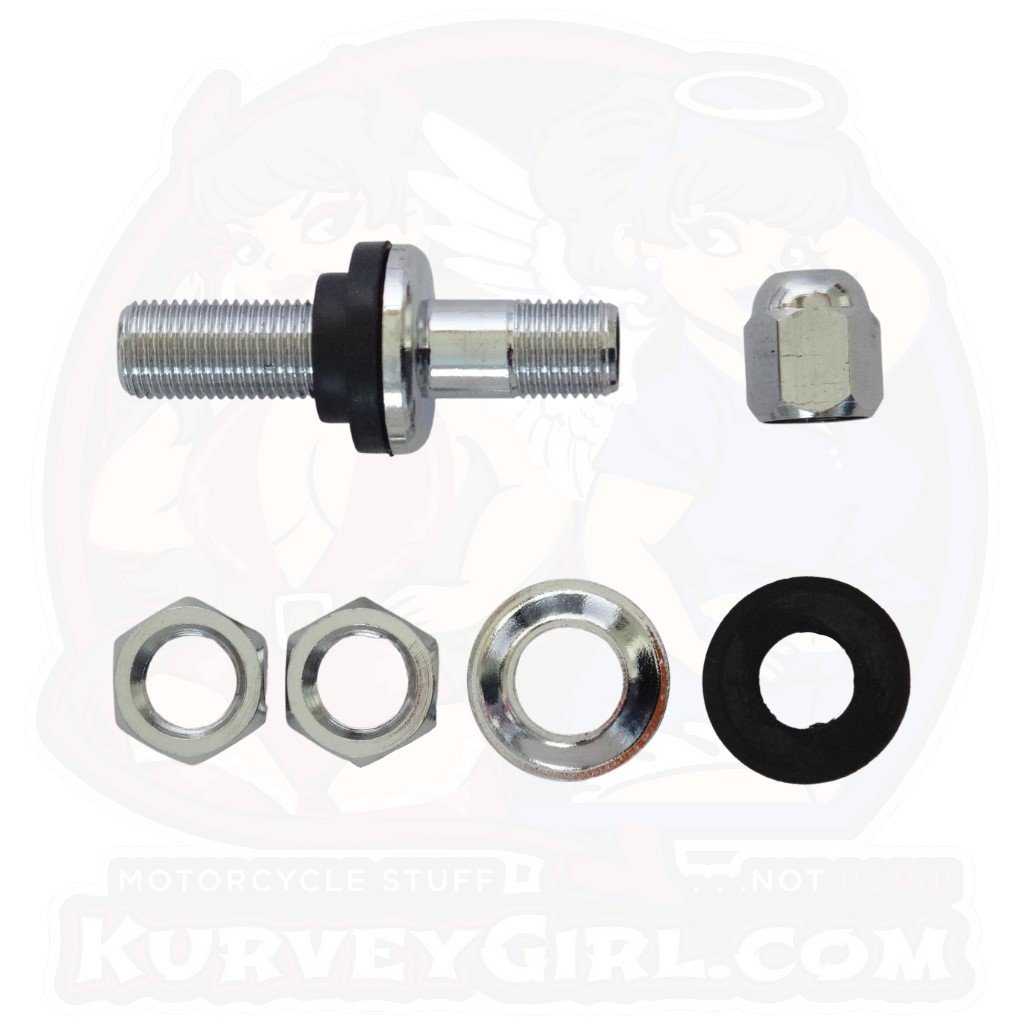

Valve Stem Set Enkei Short Metal 2 Pack Parts

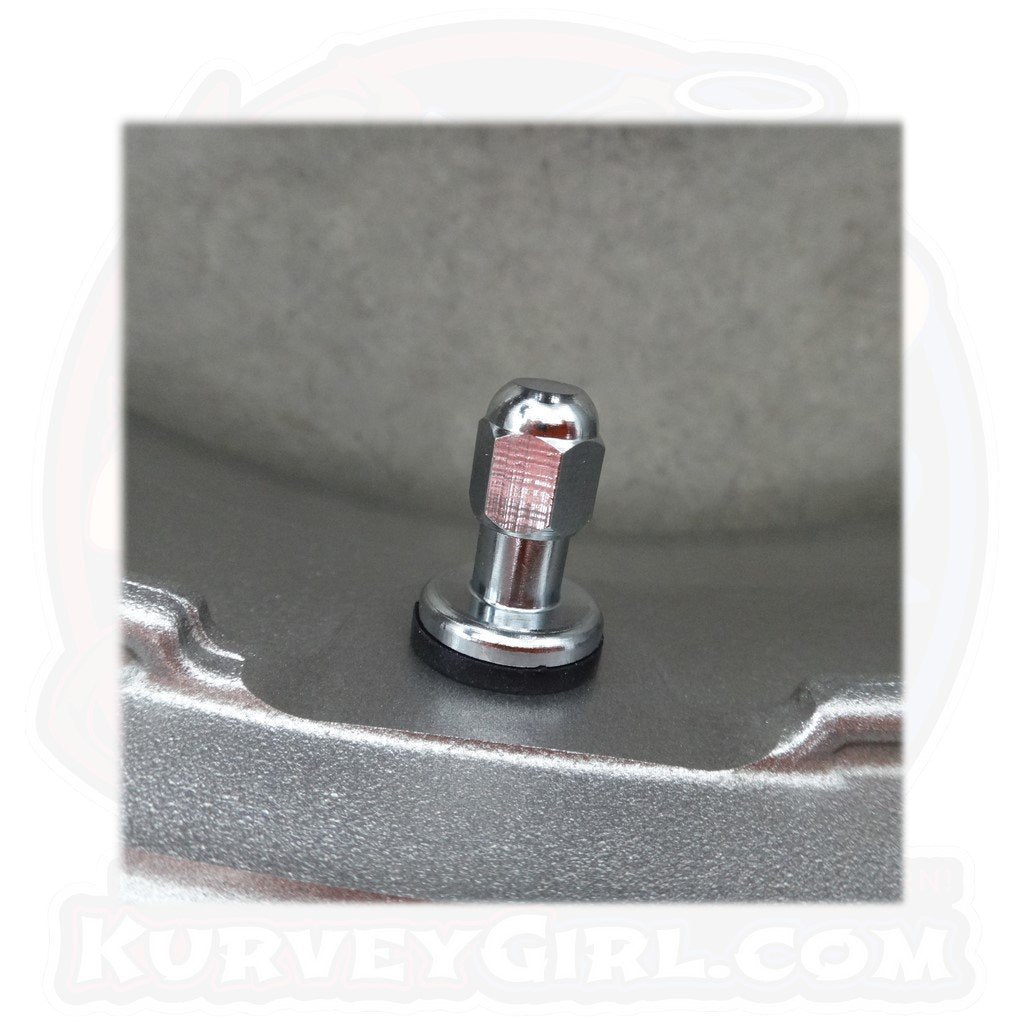

Valve Stem Set Enkei Short Metal 2 Pack Installed

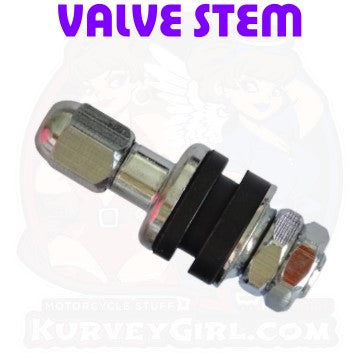

Valve Stem Set Enkei Short Metal 2 Pack Parts Side View

Enkei - 3/4" Short Metal Valve Stem - 11.3mm - Set (2pcs)

$8.00 USD Regular price
/
Shipping calculated at checkout.
  • In stock
  • Inventory on the way
DESCRIPTION FITMENT SHIPPING & RETURNS PART NUMBER(S) ADDITIONAL INFO
DESCRIPTION

Enkei 3/4" Super Short Metal Valve Stems for your Motorcycle (and Car) - Package of 2

When space is tight and you need the shortest all metal valve stem, this is your pick.  All metal construction with double seal for the best sealing.

Enkei 3/4 Inch Motorcycle Valve Stems Main Enkei 3/4 Inch Motorcycle Valve Stems Installed
Features:
  • Super Short 3/4" Valve Stem, for lighter weight for racing applications.
  • 2 Valves per package
  • Valve weight: 22g
  • Size: 11.3mm (0.453") Rim Hole Opening.
  • Easier access to valve stem.
  • Ultra Low profile design.
  • All metal construction.
  • Double air seal for the best sealing possible.
  • Double internal locking nuts keeps everything together.
  • Metal Valve Cap included.
  • Rated to 200psi
Fitting:   These valve stems fit most Japanese and American Motorcycles with a standard 11.3mm (0.453") rim hole opening.
  • Some Italian and some older European motorcycles use a 8.3mm (0.327") rim hole.
  • These parts will not work for these applications.
  • Please check before ordering.
Assembly Instructions:
  1. Remove both locking nuts, one washer and lower seal from valve stem (See picture below)
  2. Clean both valve housing and inside and outside of valve stem hole on rim.
  3. Insert valve onto rim, taking care not to damage the gasket at the base of the valve stem.
  4. Re-Attach lower seal, washer and one locking nut.
  5. Tighten first locking nut to 2.25Nm (20in-lb) to 4.5Nm (40in-lb), then attach second nut to double lock valve stem on motorcycle.
Note:  Excessive torque may deform and/or damage the rubber seal gasket.
Enkei 3/4 Inch Motorcycle Valve Stems Parts Enkei 3/4 Inch Motorcycle Valve Stems Installed 2
Special Note:  $1 of purchase will go to the Road Racing World Action Fund.
