$22.00 USD
/
Shipping calculated at checkout.
DESCRIPTION FITMENT SHIPPING & RETURNS PART NUMBER(S) ADDITIONAL INFO
DESCRIPTION
Complete Replacement Kit: 20pcs, with 2 pages of installation instructions!!!
  • Upgrade your DRZ-400's appearance with Black Finish Fasteners and new Black Oxide Coated Zinc Washers.
  • Everything you need to completely replace your Dzus® fasteners on your DRZ-400.  Nothing is re-used.
  • The Kit also includes 2 pages of step by step instructions with pictures to help you install the kit.

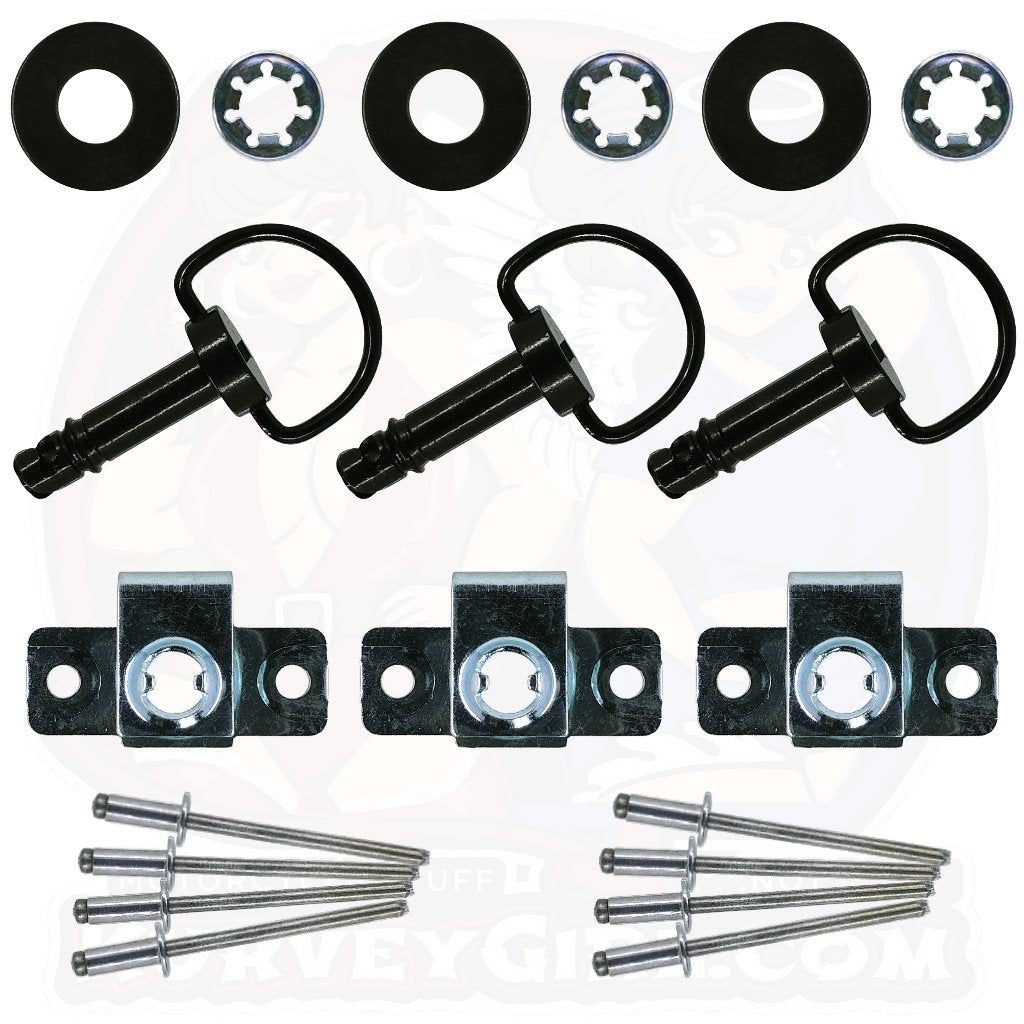

Kit Includes:

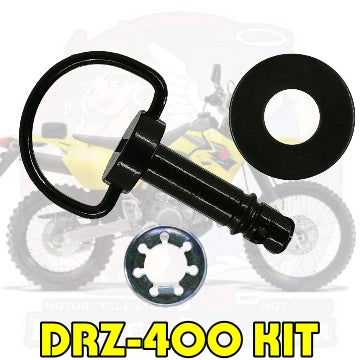

3 - 6mm D-Ring Head Panex Fasteners Working Length: 21mm
Coating: Zinc Plate with Black Chromate
Note: Black Chromate is not a non-scratch finish
3 - Body Washers in Silver Finish  Coating: Black Oxide coated, Zinc base finish
3 - Metal Retaining washers Material: Stainless Steel
3 - 6mm Rivet on Panex Retainers Coating: Zinc Plate with Chromate
8 - 5/8" Pop Rivets For attaching Rivet on Retainers to DRZ-400 airbox
2 extra pop rivets just in case
2 Pages of Step by Step instructions Complete instructions with photos.
Dzus® Bolts Specs & Drawing
Additional Dzus® Bolt Specs / Info

(L) Working Length: 21mm
Shaft Length : 24mm

Grip Range: 12.5mm to 14.4mm
Maximum Grip with out washers
Minimum Grip using 2 washers

Minimum bodywork Hole size: 7.2mm
English: 9/32nd Inch
Dzus® Clip Specs & Drawing
Dzus® Clip Specs / Info

Max hole from edge: 12mm

Minimum flat space for clip: 35mm

Minimum clearance behind bodywork:11mm
Dzus® is a Registered Trademark of Southco Inc.
