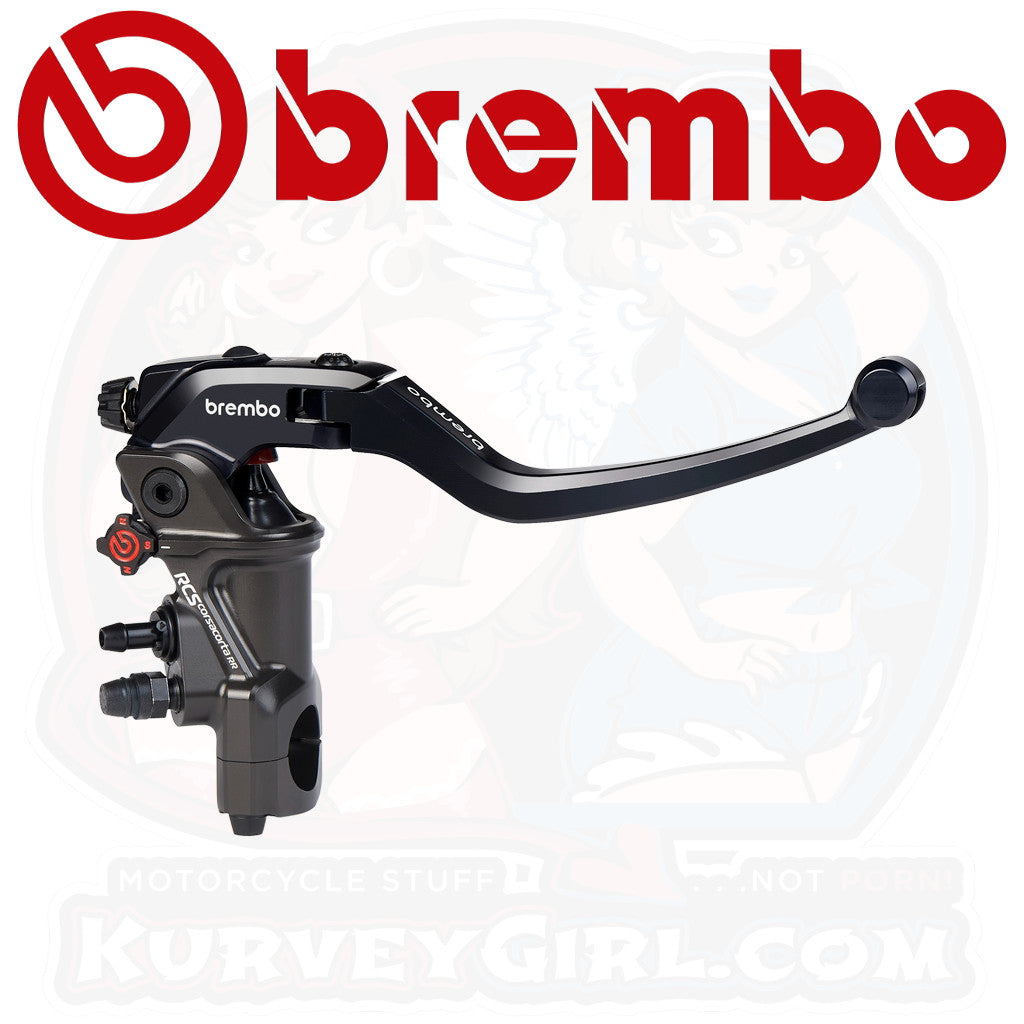

Brembo 19 RCS Corsa Corta RR Brake Master Cylinder 110E71110 110.E711.10 2024

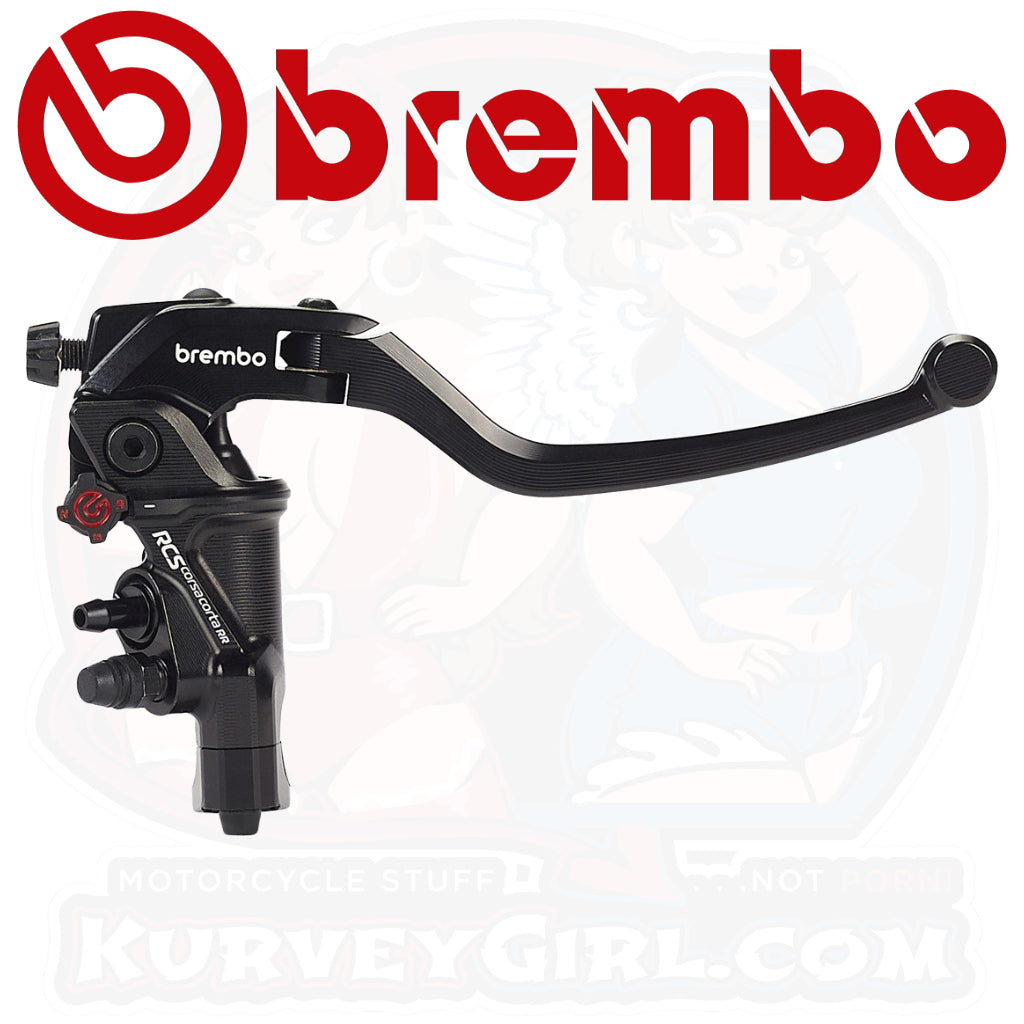

Brembo 19 RCS Corsa Corta RR Billet Brake Master Cylinder 110E71110 110.E711.10 ISO 2024

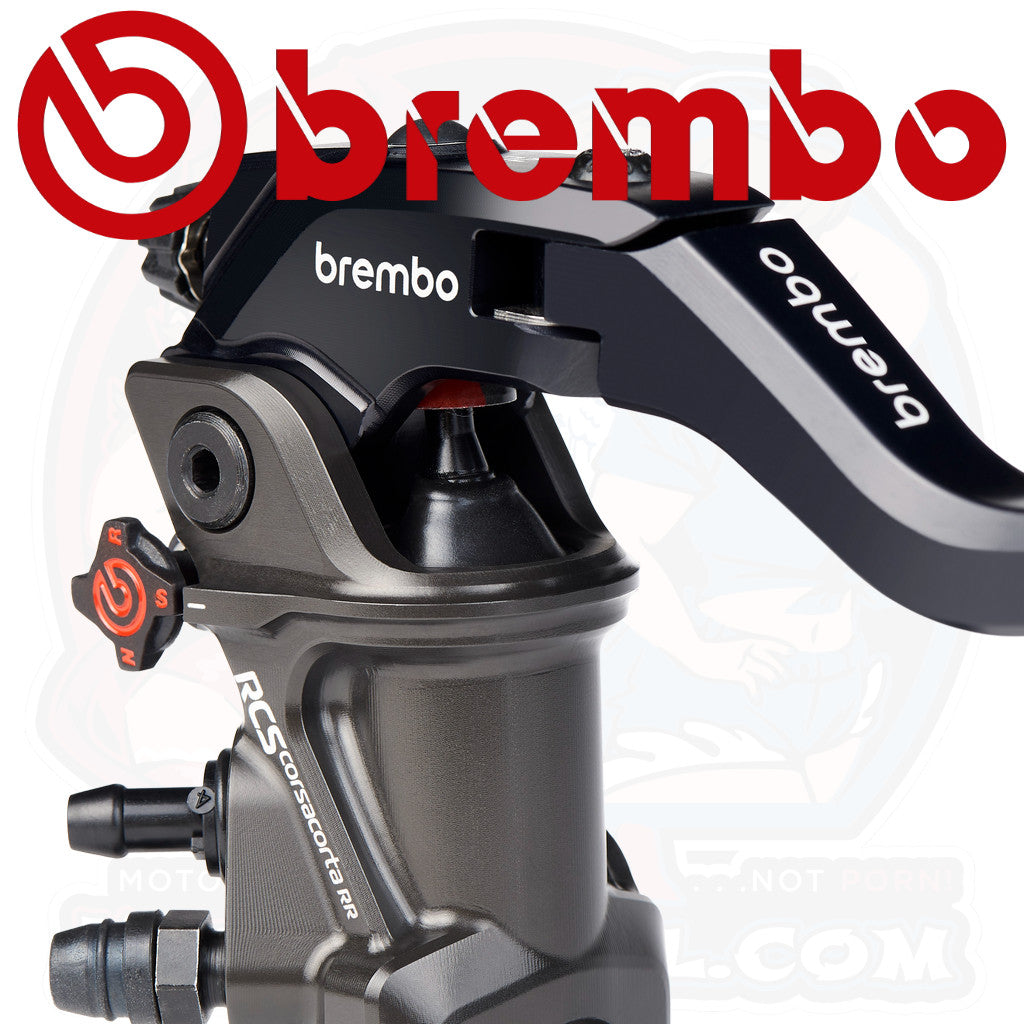

Brembo 19 RCS Corsa Corta RR Billet Brake Master Cylinder 110E71110 110.E711.10 Close 2024

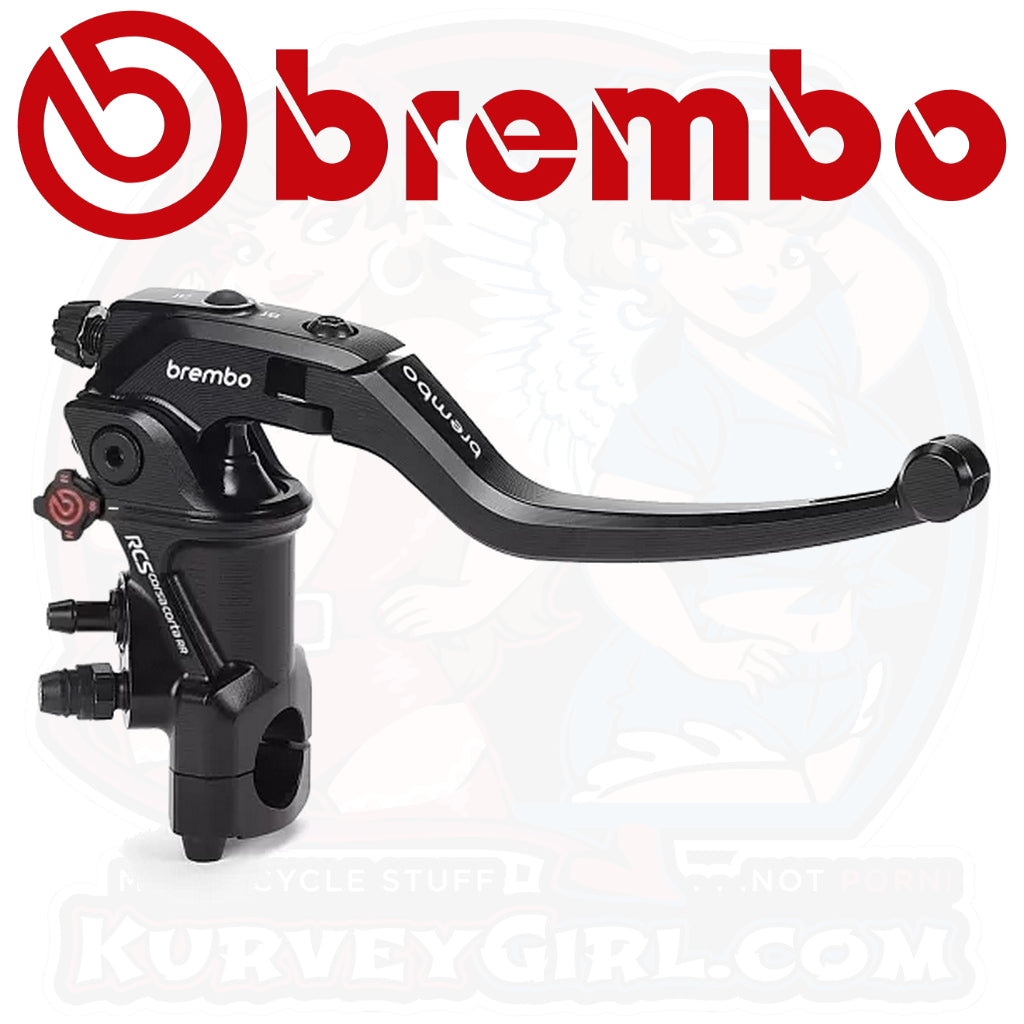

Brembo 19 RCS Corsa Corta RR Billet Brake Master Cylinder 110E71110 110.E711.10 Front 2024

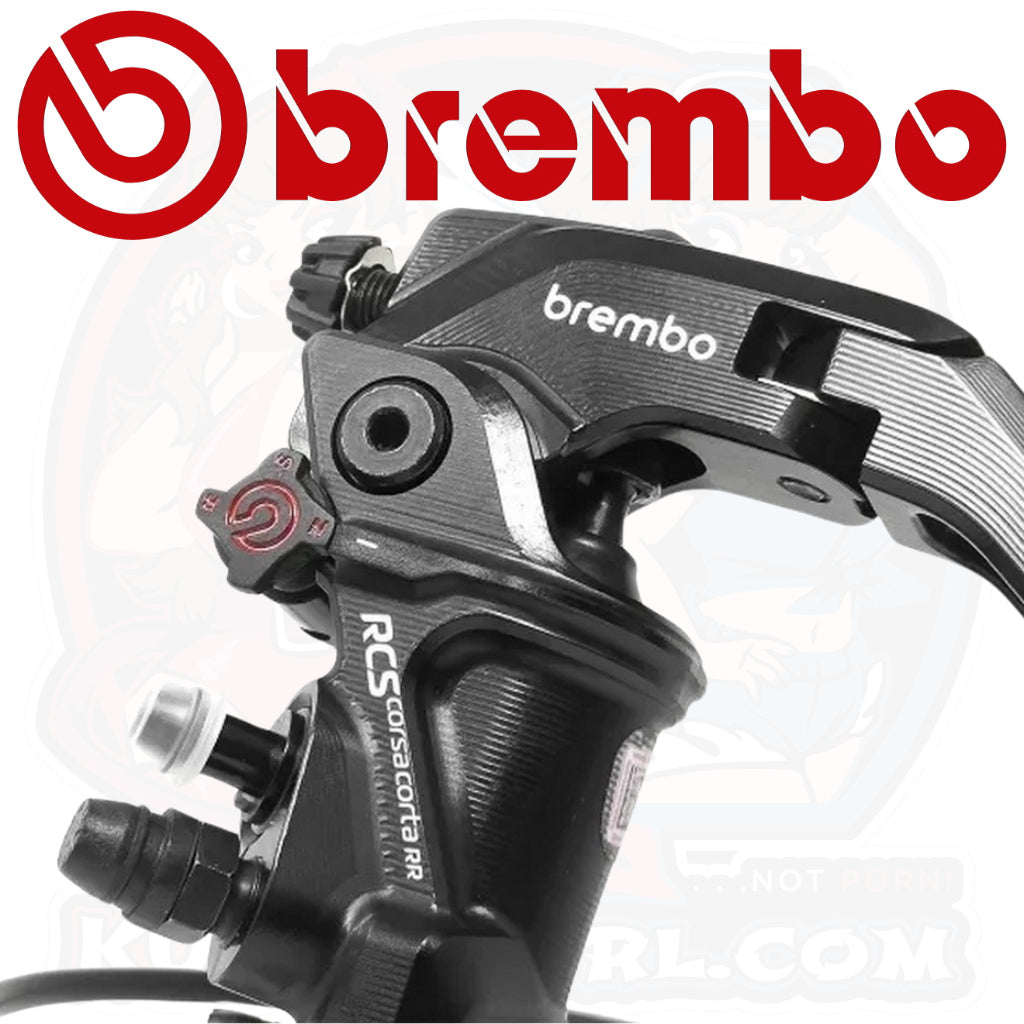

Brembo 19 RCS Corsa Corta RR Billet Brake Master Cylinder 110E71110 110.E711.10 Side 2024
KurveyGirl Brembo Kit includes Double Banjo and tygon tubing free of charge

BREMBO 19 RCS Corsa Corta RR Billet Brake Master Cylinder (110.E711.10) (110E71110)

$695.00 USD Regular price
/
Shipping calculated at checkout.
  • In stock
  • Inventory on the way

Shipping to USA Only


Shipping & Return Information:
Shipping Information:
  • Master Cylinders are only shipped to the Payment Method Billing address.
  • Shipping to US Addresses ONLY.
  • Signature Required at time of delivery.
  • No Shipping to freight forwarding services.
Return Information:
  • Brembo Master Cylinders are a non-returnable item.
  • All Master Cylinders are serviced and warrantied though Brembo USA's national distributor.
If you have questions about this policy, please contact us before ordering.


DESCRIPTION FITMENT SHIPPING & RETURNS PART NUMBER(S) ADDITIONAL INFO
DESCRIPTION
Brembo Racing Logo
BREMBO 19 RCS CORSA CORTA RR, BILLET RADIAL BRAKE MASTER CYLINDER



Model:
BREMBO 19 RCS CORSA CORTA RR
BILLET RADIAL BRAKE MASTER CYLINDER
Part Number:
110.E711.10 (110E71110) Standard Lever
[Standard Lever = Folding Lever]
Return Information: Master Cylinders are a non-returnable item.
- All Master Cylinders are serviced and warrantied though Brembo USA's national distributor.
- If you have questions about this policy, please contact us before ordering.
Special Fitting Note: For customers with Brembo M50, Stylema, and Stylema R Calipers.

Brembo 19 RCS Corsa Corta RR Billet Brake Master
Cylinder 110E71110 110.E711.10

Special Feature: 19 RCS CORSA CORTA RR offers three (3) Different Responsiveness Modes:
  • N: Normal Setting:
    • The bite point starts more gradually, making it suitable for city riding or braking in poor grip conditions.
  • S: Sport Setting:
    • The bite point is shorter than in the N setting, producing a more dynamic response suitable for sport riding.
  • R: Race Setting:
    • Shortens the initial stage of the bite point to produce the same immediate response of the master cylinders used in MotoGP.  This setting is "Track Only", and should not be used for street riding.

Brembo 19 RCS Corsa
Corta RadialMaster Cylinder 110.c740.10 Control Modes

Note: Standard Brembo RCS Corsa Corta Model shown above.
The same controls and operation on the Brembo RCS Corsa Corta RR Billet Master Cylinder.


KurveyGirl.com Bonus Kit Parts:
Every Kit Includes:
  1. Brembo 19 RCS CORSA CORTA RR Billet Radial Brake Master Cylinder Assembly.
  2. Tygon 2375 Tubing:
    • 6mm Diameter
    • Length: 12 inches (150mm)
  3. Titanium Double Banjo Bolt:
    • Size:  M10 x 1.0
    • Double Banjo Bolt for Dual Brake Line setup.
    • Banjo Bolt is Pre Drilled for Safety Wire.
  4. Brembo Brake light switch, Normally Closed (N/C) type for brake application.
    • Brembo Service P/N: 110.4671.95 (110467195)
    • See Reference microswitch operation information below

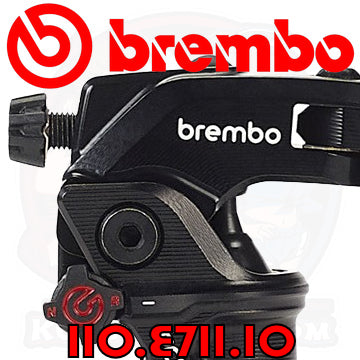

View of Responsiveness Knob:
Brembo 19 RCS Corsa Corta RR Billet Brake Master
Cylinder 110E71110 110.E711.10 Close
Attachment: Fits Standard 7/8" Bar Diameter
Features:

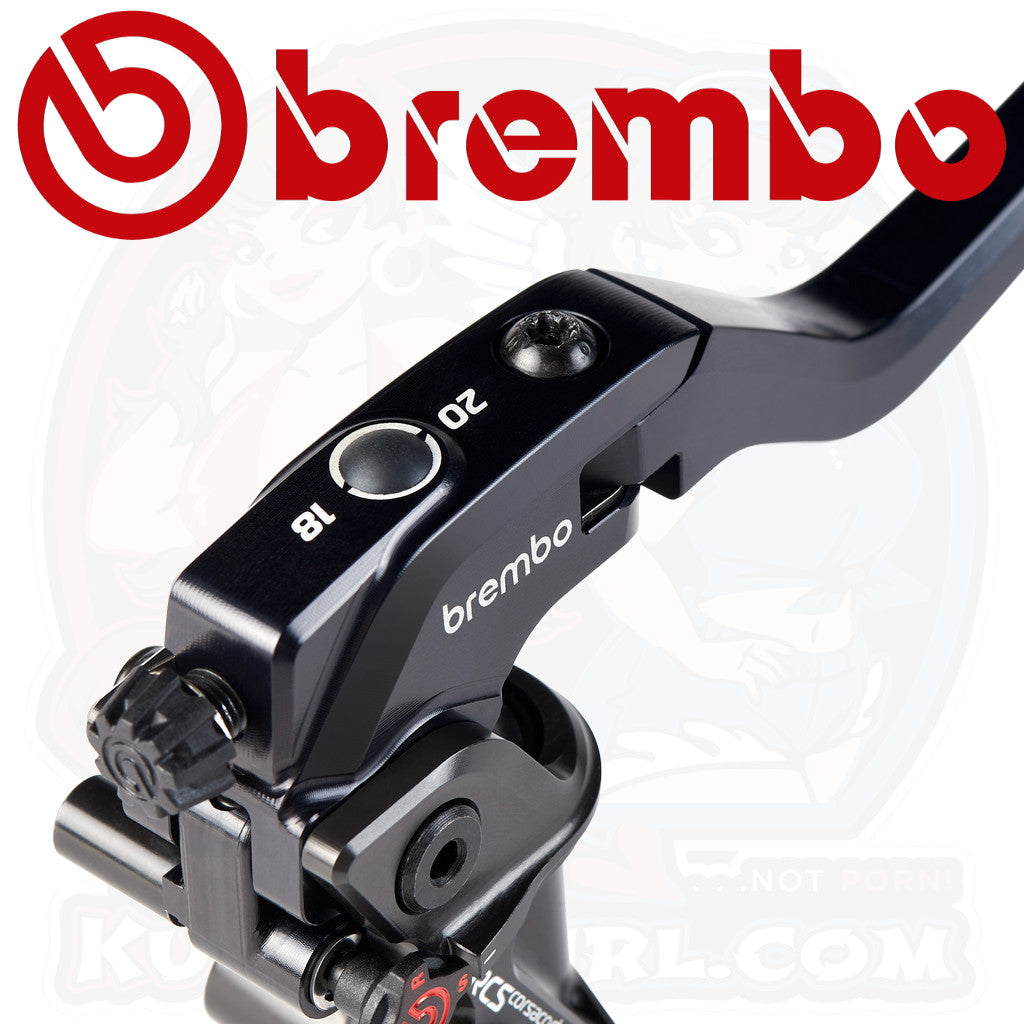

  • Adjustable pivot distance: RCS system

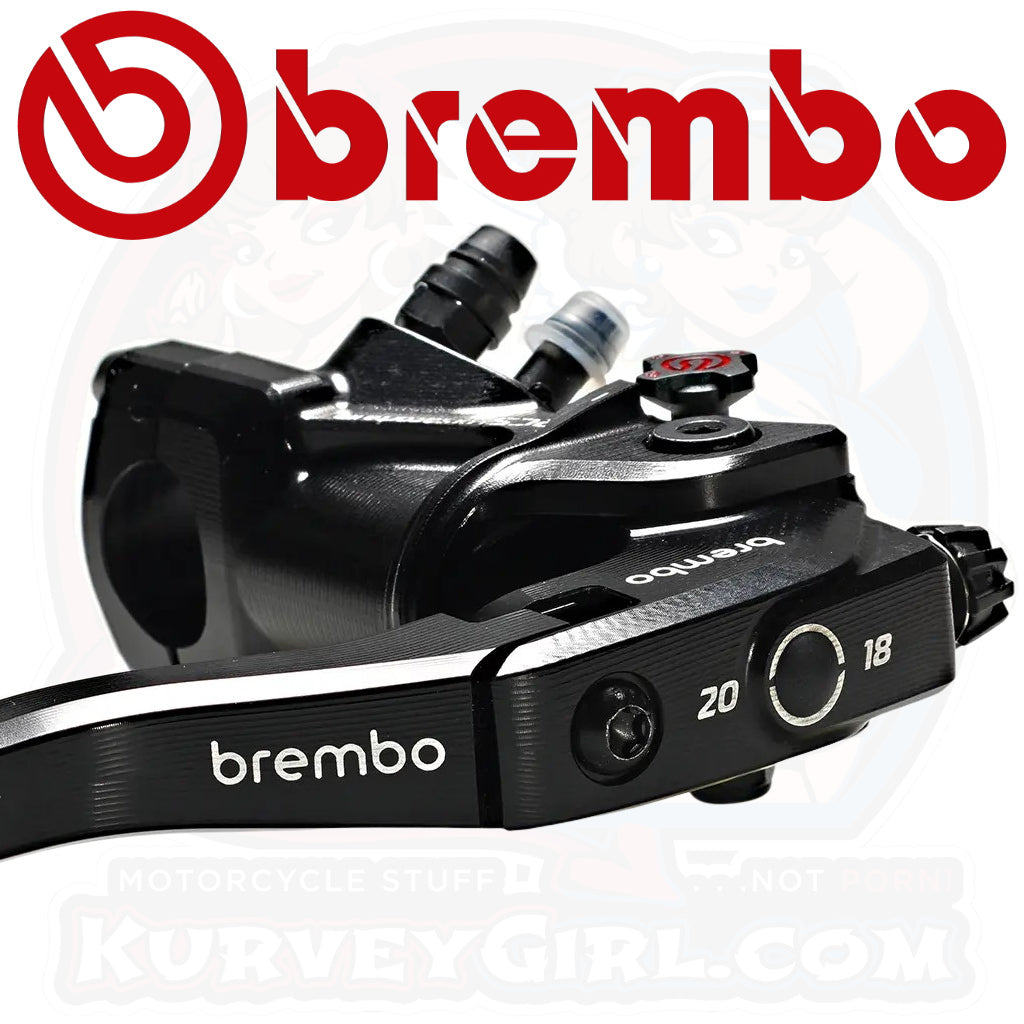

    • Rider can set the brake lever pivot point at one of two distances: 18 or 20 mm
    • Adjustment is simple, by turning a roller cam located on the front of the lever clevis.
  • MOTO GP piston assembly:
    • The piston, seals and push-rod are the same as those of master cylinders used by all riders in MotoGP and World Superbike.
  • 3 Different Responsiveness Modes:
    • N: Normal Setting
    • S: Sport Setting
    • R: Race Setting
  • Master cylinder body construction:
    • The body of the Master Cylinder is machined from billet, like the master cylinders used in MotoGP and SBK.
  • Surface Finish: Hard anodization (Ultra-hard oxide)
    • This durable film affords especially high resistance to abrasion and corrosion.
  • Brake lever features:
    • The brake lever is made up of two main components: the Racing Lever Clevis, and the lever itself, forged and hinged to the clevis.
    • The clevis incorporates a patent system allowing angular movement only in the event that the bike should happen to fall or crash.
    • This prevents the lever from rotating accidentally, and provides increased dynamic safety.
    • The lever is hinged to the cylinder body by way of a precision pin and bush assembly, guaranteeing optimum rigidity, better feel and especially high resistance to wear.
  • Brake light switch:
    • A housing has been included specifically to accept the mechanical switch of a brake light circuit, when the 19 RCS CORSA CORTA RR is set up for street use.
    • A Brake light switch is included in the KurveyGirl.com Brembo 19 RCS CORSA CORTA RR Kit.
Microswitch Operation:
  • The microswitch operates as shown in the image below.
    • Brakes Off (Lever Released), microswitch is in a OPEN/OFF condition.
    • Brakes On (Lever Pulled In), microswitch is in a CLOSED/ON condition.

Brembo Micro Switch opperation
master cylinders 110.4671.95 110467195

  • Please review the electrical requirements of your current brake application to identify if a Normally Closed microswitch will work for your application.

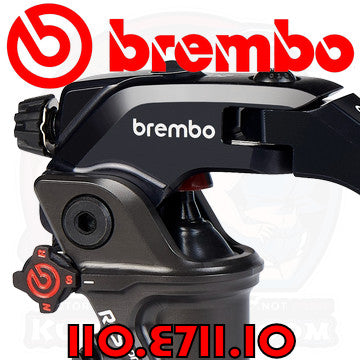

Adjustment Knobs:
Brembo 19 RCS Corsa Corta RR Billet Brake Master
Cylinder 110E71110 110.E711.10 Front


Control Features:

Brembo 19 RCS
Corsa Corta Radial Master Cylinder 110.C740.40
110C74040 Control Features


Note: Standard Brembo RCS Corsa Corta Model shown above.
The same controls and operation on the Brembo RCS Corsa Corta RR Billet Master Cylinder.

Brembo Racing Logo
Not Available for International Shipping!!!
Shipping only available for USA



FITMENT
SHIPPING & RETURNS
Shipping & Return Information:
Shipping Information:
  • Master Cylinders are only shipped to the Payment Method Billing address.
  • Shipping to US Addresses ONLY.
  • No Shipping to freight forwarding services.
Return Information:
  • All Brembo Master Cylinders, Levers, Accessories, Service and Repair Parts are a non-returnable items.
  • All Master Cylinders, Levers, Accessories, Service and Repair Parts are serviced and warrantied though Brembo USA's national distributor.
If you have questions about this policy, please contact us before ordering.



PART NUMBER(S)
Part Number 110.E711.10 (110E71110) Standard Lever
[Standard Lever = Folding Lever]
