Brembo 19 RCS 1 Inch Bar Radial Brake Master Cylinder 110A89710 110.A897.10
Brembo 19 RCS 1 inch Bar Radial Brake Master Cylinder 110A89710 110.A897.10
KurveyGirl Brembo Kit includes Double Banjo and tygon tubing free of charge

BREMBO 19 RCS 1in Bar Radial Brake Master Cylinder (110.A897.10) (110A89710)

$329.00 USD Regular price
/
Shipping calculated at checkout.
  • In stock
  • Inventory on the way

Shipping to USA Only

Shipping & Return Information:
Shipping Information:
  • Master Cylinders are only shipped to the Payment Method Billing address.
  • Shipping to US Addresses ONLY.
  • Signature Required at time of delivery.
  • No Shipping to freight forwarding services.
Return Information:
  • Brembo Master Cylinders are a non-returnable item.
  • All Master Cylinders are serviced and warrantied though Brembo USA's national distributor.
If you have questions about this policy, please contact us before ordering.

DESCRIPTION FITMENT SHIPPING & RETURNS PART NUMBER(S) ADDITIONAL INFO
DESCRIPTION

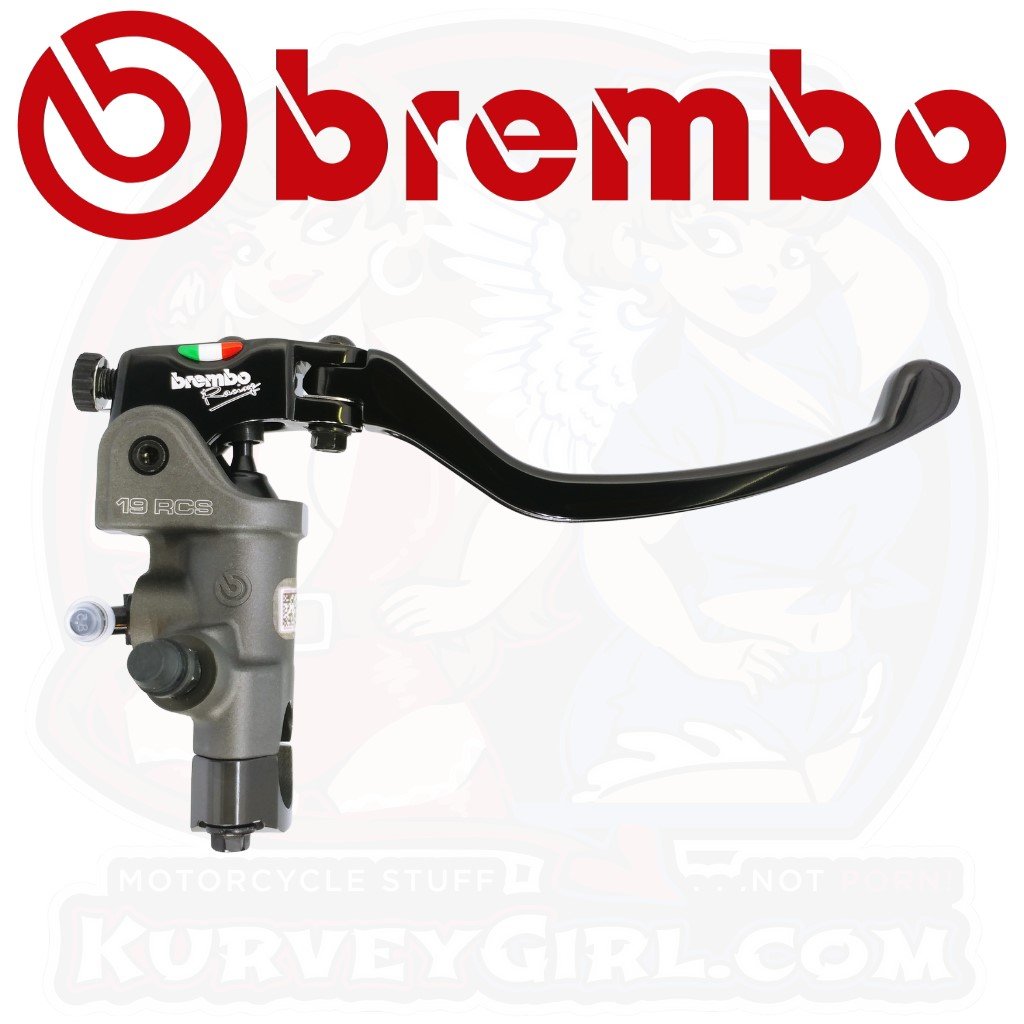

Brembo Racing Logo BREMBO 19 RCS RADIAL BRAKE MASTER CYLINDER
Fits 1inch HANDLE BARS
(Harley Davidson & V-Twin Models)



Model BREMBO 19 RCS for 1inch (1") Handle Bars
RADIAL BRAKE MASTER CYLINDER
Part Number 110.A897.10 - Standard Lever
[Standard Lever = Folding Lever]

Brembo 19 RCS Radial Master
Cylinder 1in bar harley davison 110.A897.10 110A89710

KurveyGirl.com

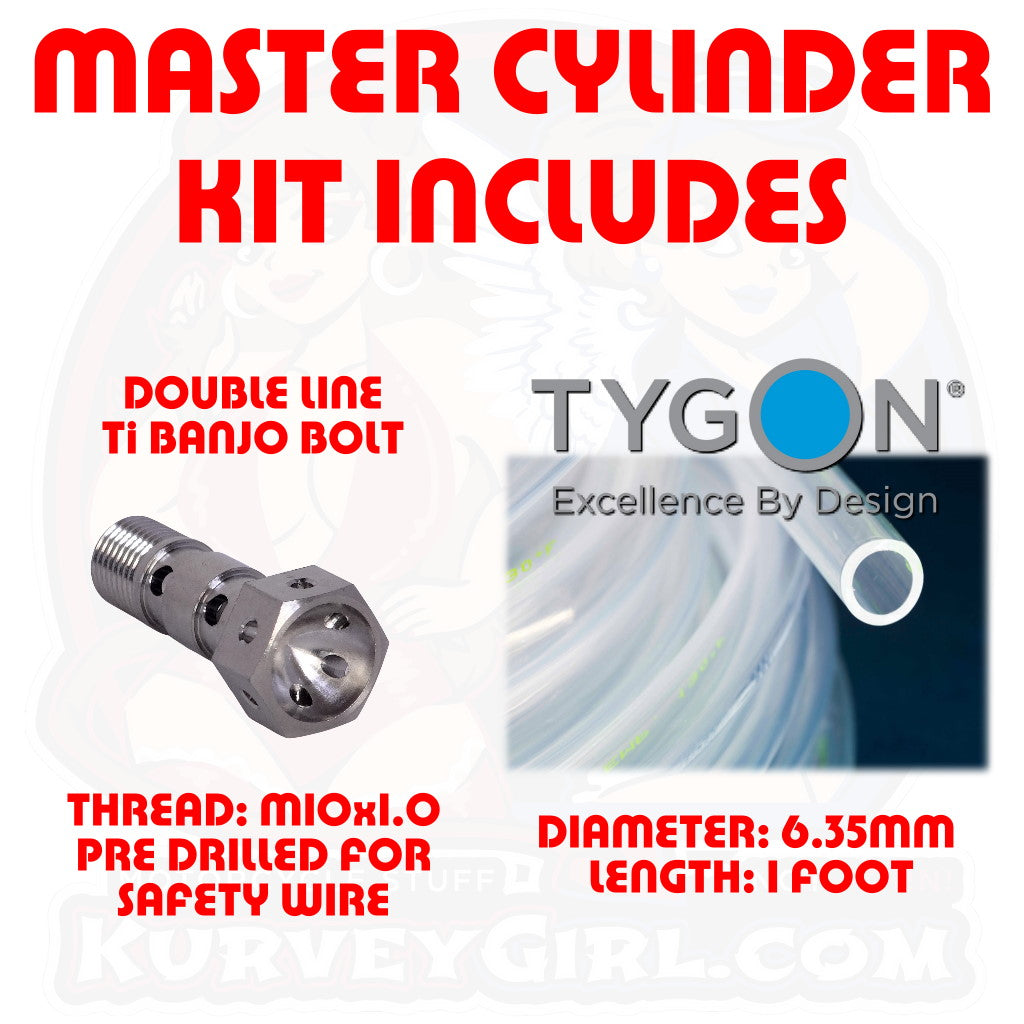

Bonus Kit Parts
Every Kit Includes:
  1. Brembo 19 RCS Radial Brake Master Cylinder Assembly for 1inch handle bars
  2. Tygon 2375 Tubing:
    • 6mm Diameter
    • Length: 12 inches (150mm)
  3. Titanium Double Banjo Bolt:
    • Size:  M10 x 1.0
    • Double Banjo Bolt for Dual Brake Line setup.
    • Banjo Bolt is Pre Drilled for Safety Wire.
  4. Brembo Brake light switch, Normally Closed (N/C) type for brake application.
    • Brembo Service P/N: 110.4671.95 (110467195)
    • See Reference microswitch operation information below
Return Information: Master Cylinders are a non-returnable item.
- All Master Cylinders are serviced and warrantied though Brembo USA's national distributor.
- If you have questions about this policy, please contact us before ordering.
Attachment Fits 1" Bar Diameter found on many Harley Davidson models.
Features
  • Adjustable pivot distance: RCS system
    • Rider can set the brake lever pivot point at one of two distances: 18 or 20 mm
    • Adjustment is simple, by turning a roller cam located on the front of the lever clevis.
  • MOTO GP piston assembly:
    • The piston, seals and push-rod are the same as those of master cylinders used by all riders in MotoGP and World Superbike.
  • Master cylinder body construction:
    • The body of the master cylinder is an aluminum alloy forging, machined on CNC equipment with weight-relieved by milling.
  • Surface Finish: Hard anodization (Ultra-hard oxide)
    • This durable film affords especially high resistance to abrasion and corrosion.
  • Brake lever features:
    • The brake lever is made up of two main components: the Racing Lever Clevis, and the lever itself, forged and hinged to the clevis.
    • The clevis incorporates a patent system allowing angular movement only in the event that the bike should happen to fall or crash.
    • This prevents the lever from rotating accidentally, and provides increased dynamic safety.
    • The lever is hinged to the cylinder body by way of a precision pin and bush assembly, guaranteeing optimum rigidity, better feel and especially high resistance to wear.
  • Brake light switch:
    • A housing has been included specifically to accept the mechanical switch of a brake light circuit, when the 19 RCS is set up for street use.
    • A Brake light switch is included in the KurveyGirl.com Brembo 19 RCS Kit.
Microswitch Operation:
  • The microswitch operates as shown in the image below.
    • Brakes Off (Lever Released), microswitch is in a OPEN/OFF condition.
    • Brakes On (Lever Pulled In), microswitch is in a CLOSED/ON condition.

Brembo Micro Switch opperation
master cylinders 110.4671.95 110467195

  • Please review the electrical requirements of your current brake application to identify if a Normally Closed microswitch will work for your application.
Manufacture Brembo Racing Logo
