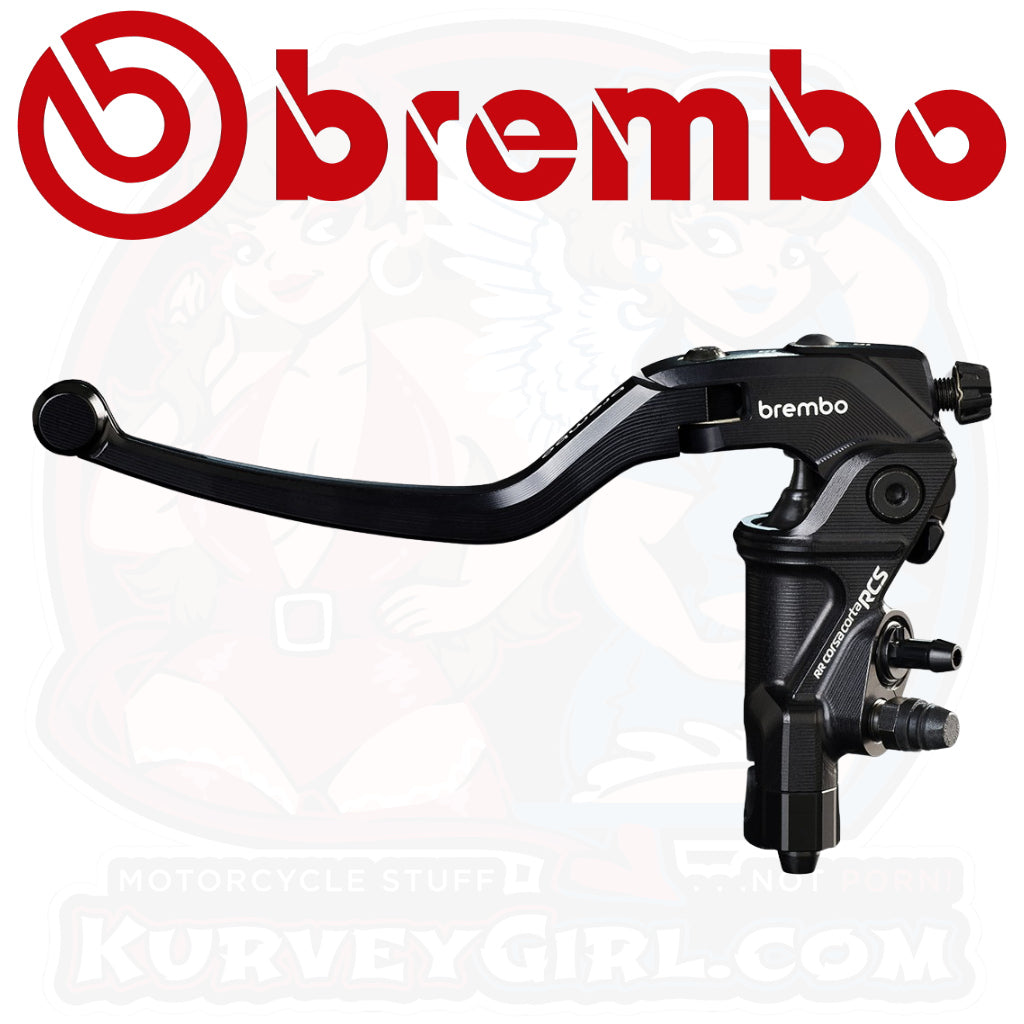

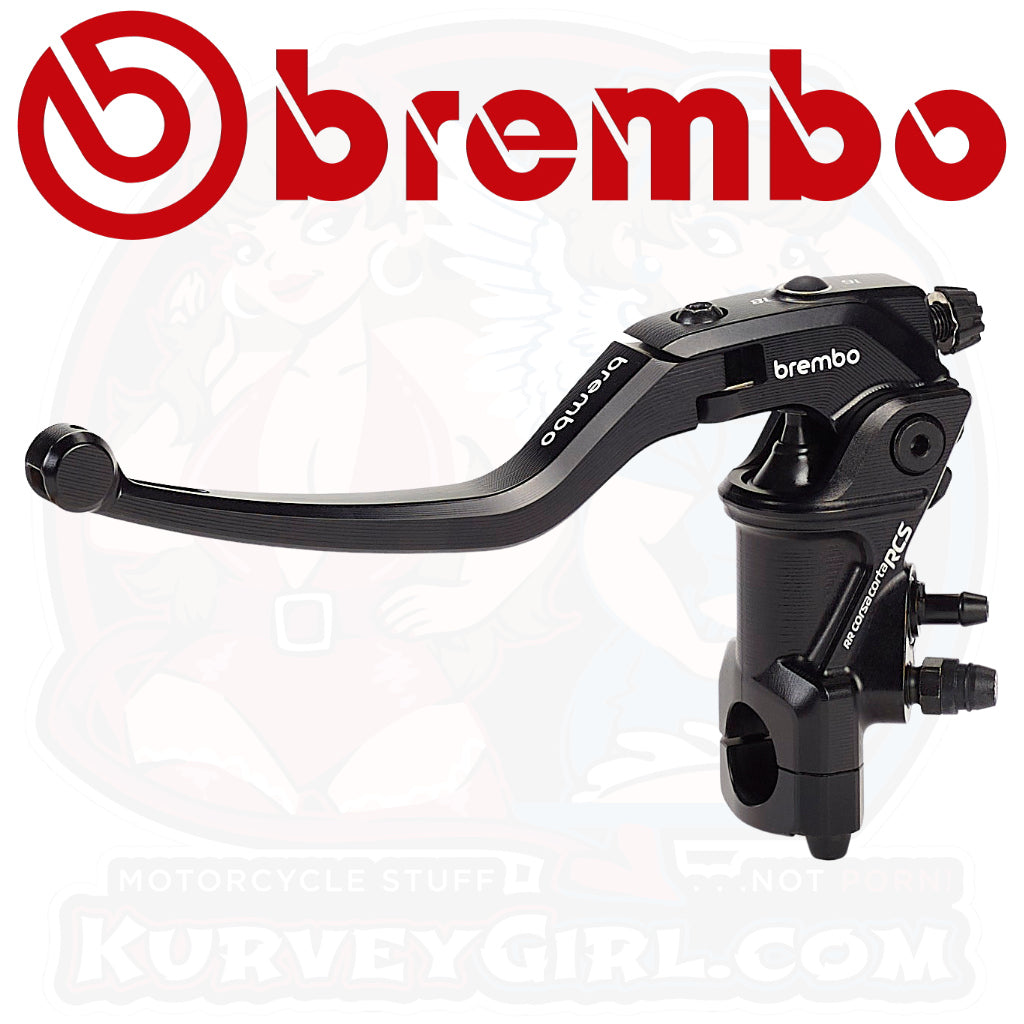

BREMBO 16 RCS CORSA CORTA RR, BILLET RADIAL CLUTCH MASTER CYLINDER

BREMBO 16 RCS CORSA CORTA RR
BILLET RADIAL CLUTCH MASTER CYLINDER

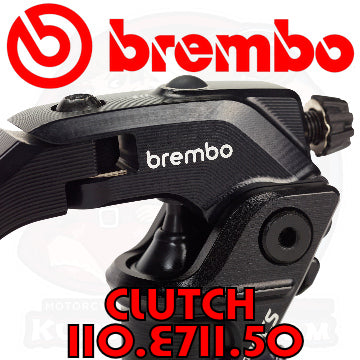

110.E711.50 (110E71150) Standard Lever
[Standard Lever = Folding Lever]

• Adjustable pivot distance: RCS system

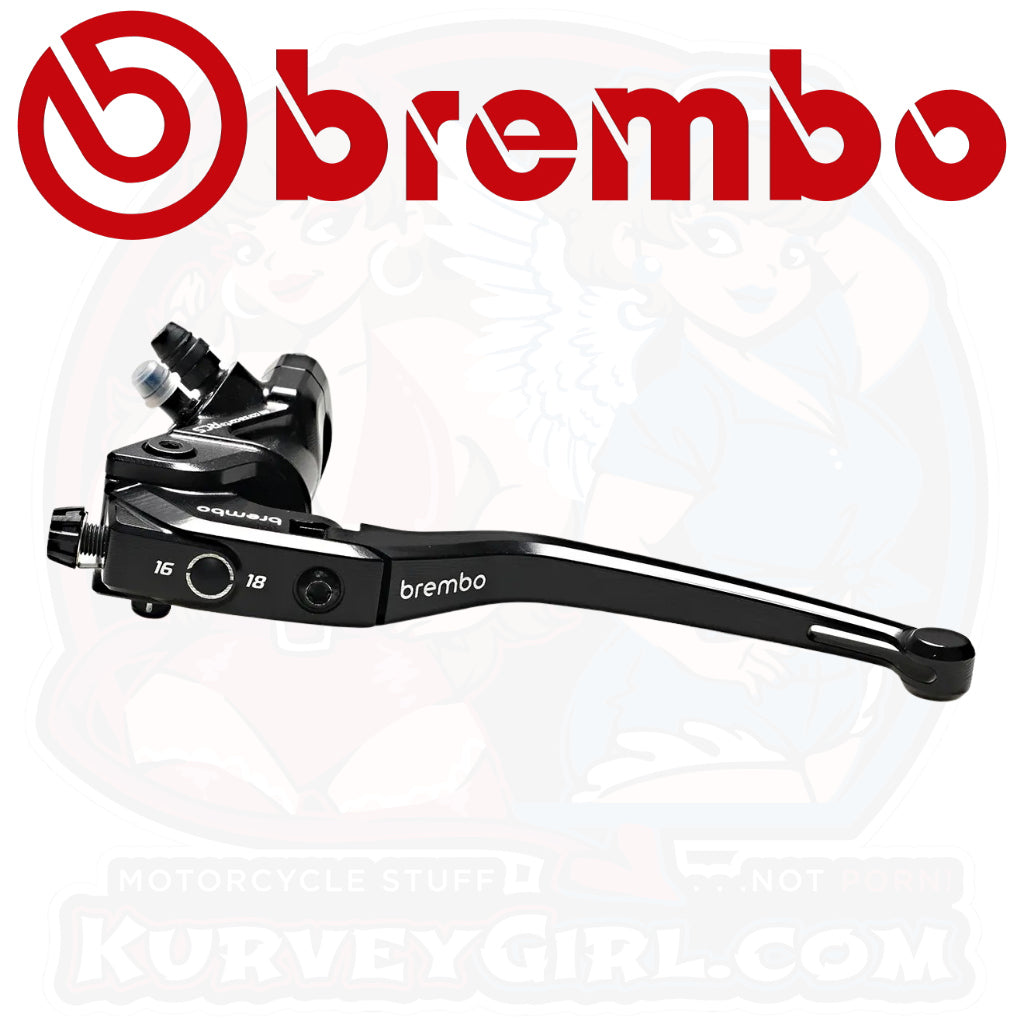

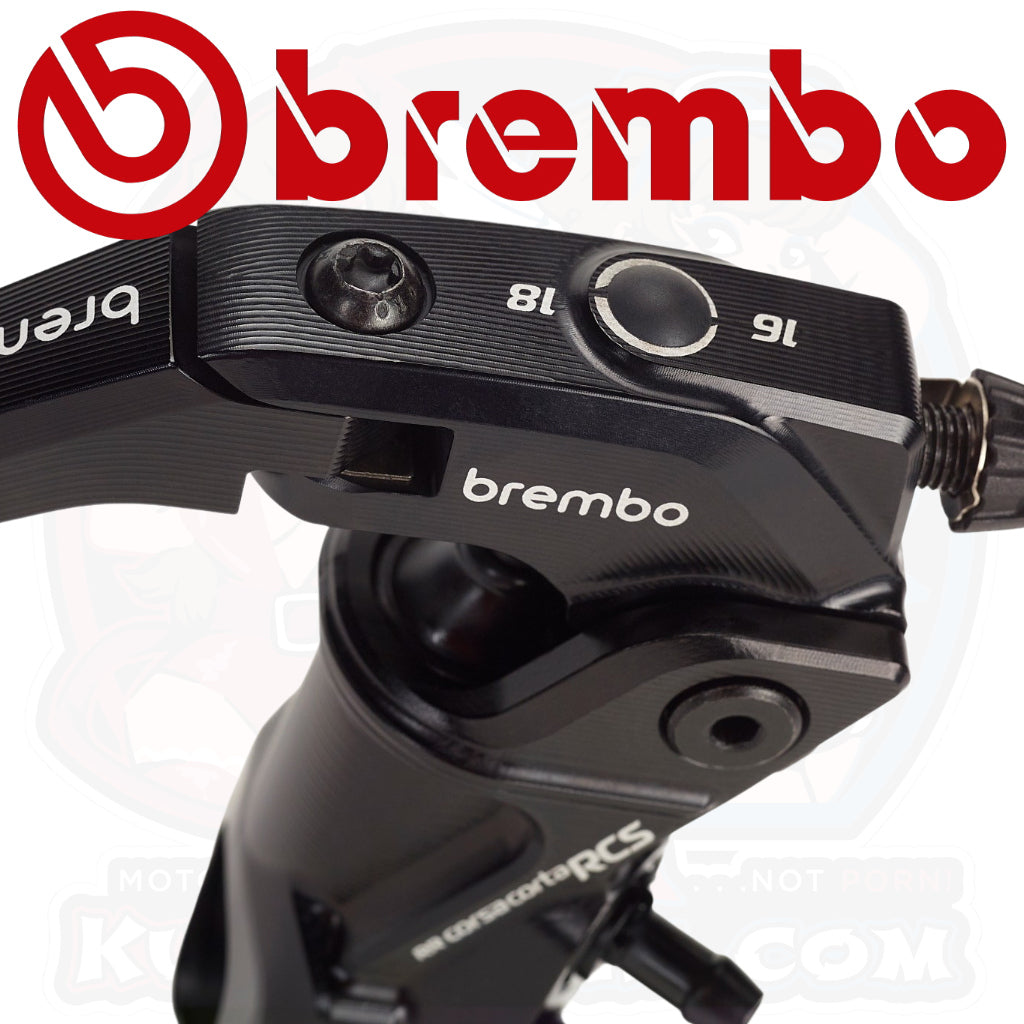

  • Rider can set the clutch lever pivot point at one of two distances: 16 or 18 mm
  • Adjustment is simple, by turning a roller cam located on the front of the lever clevis.
• MOTO GP piston assembly:
  • The piston, seals and push-rod are the same as those of master cylinders used by all riders in MotoGP and World Superbike.
• Master cylinder body construction:
  • The body of the Master Cylinder is machined from billet, like the master cylinders used in MotoGP and SBK.
• Surface Finish: Hard anodization (Ultra-hard oxide)
  • This durable film affords especially high resistance to abrasion and corrosion.
• Clutch lever features:

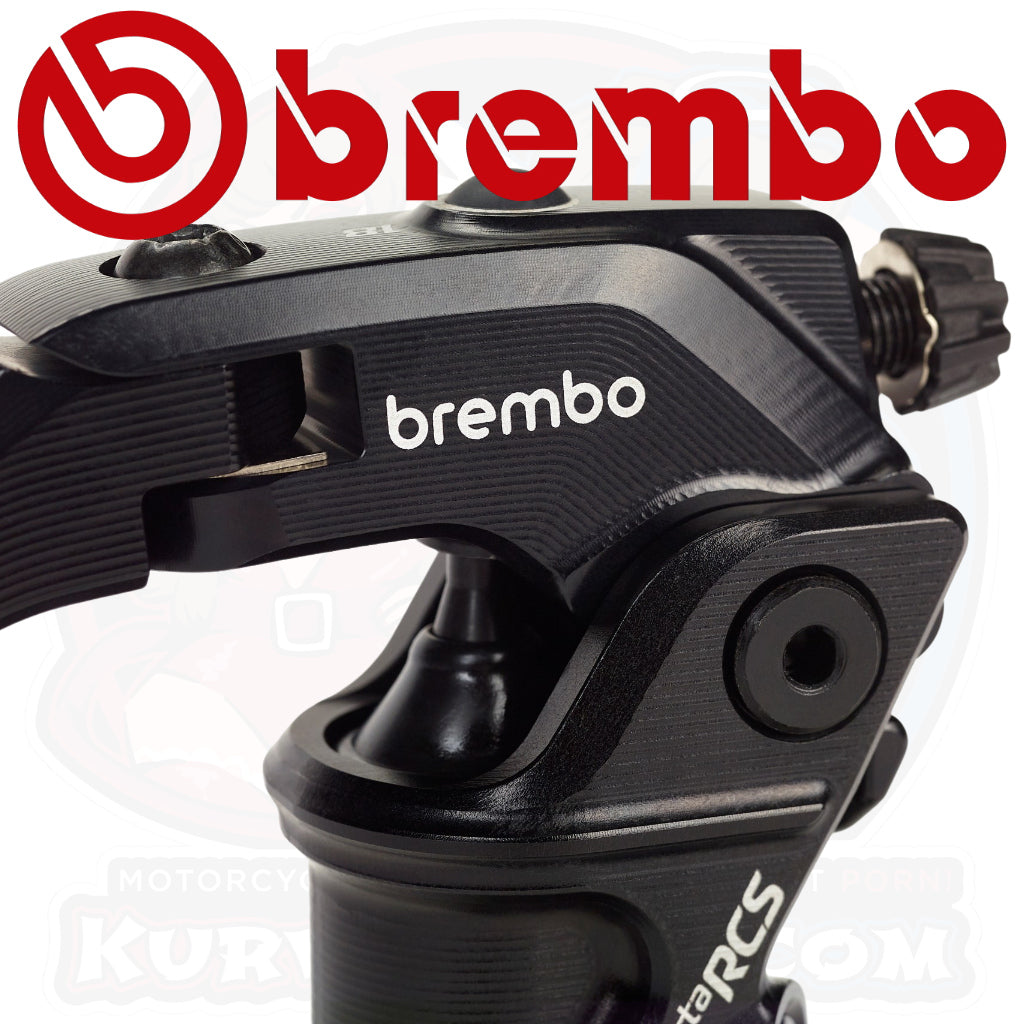

  • The clutch lever is made up of two main components: the Racing Lever Clevis, and the lever itself, forged and hinged to the clevis.
  • The clevis incorporates a patent system allowing angular movement only in the event that the bike should happen to fall or crash.
  • This prevents the lever from rotating accidentally, and provides increased dynamic safety.
  • The lever is hinged to the cylinder body by way of a precision pin and bush assembly, guaranteeing optimum rigidity, better feel and especially high resistance to wear.

1. Responsiveness Modes: 16 RCS CORSA CORTA RR Clutch does not offer the three (3) Different Responsiveness Modes:
2. No Built in Microswitch: 16 RCS CORSA CORTA RR Clutch does not offer a clutch operation switch.

• The 16 RCS CORSA CORTA RR Clutch does not have a provision for a Microswitch and is not possible to add a mechanical switch.

1. Brembo 16 RCS CORSA CORTA RR Billet Radial Clutch Master Cylinder Assembly.
2. Tygon 2375 Tubing:
   • 6mm Diameter
   • Length: 12 inches (150mm)
3. Titanium Single Line Banjo Bolt:
   • Size:  M10 x 1.0
   • Banjo Bolt is Pre Drilled for Safety Wire.

- All Master Cylinders are serviced and warrantied though Brembo USA's national distributor.
- If you have questions about this policy, please contact us before ordering.

• Master Cylinders are only shipped to the Payment Method Billing address.
• Shipping to US Addresses ONLY.
• No Shipping to freight forwarding services.

• All Brembo Master Cylinders, Levers, Accessories, Service and Repair Parts are a non-returnable items.
• All Master Cylinders, Levers, Accessories, Service and Repair Parts are serviced and warrantied though Brembo USA's national distributor.
