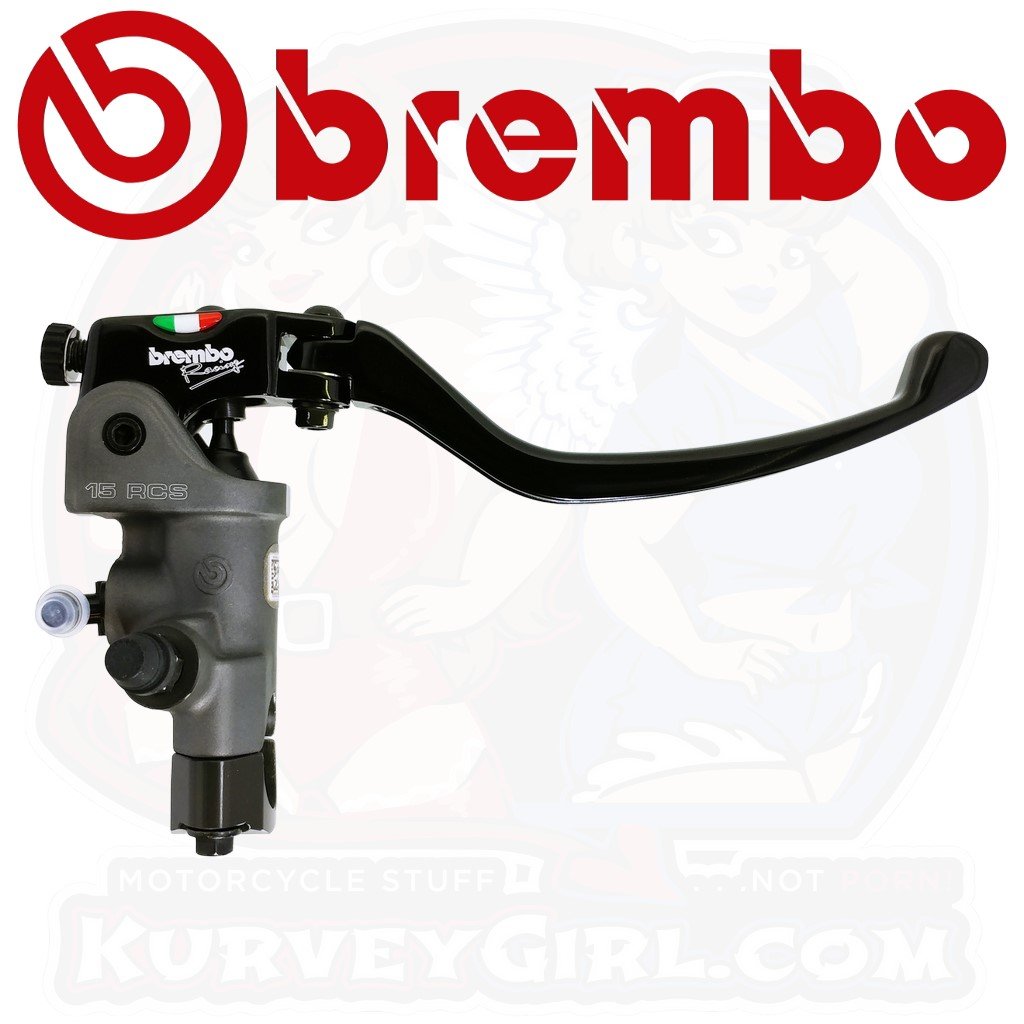

BREMBO 15 RCS Radial Brake Master Cylinder Kit, Long Lever (110.A263.30) (110A26330)

​

1. Brembo 15 RCS Radial Brake Master Cylinder Assembly.

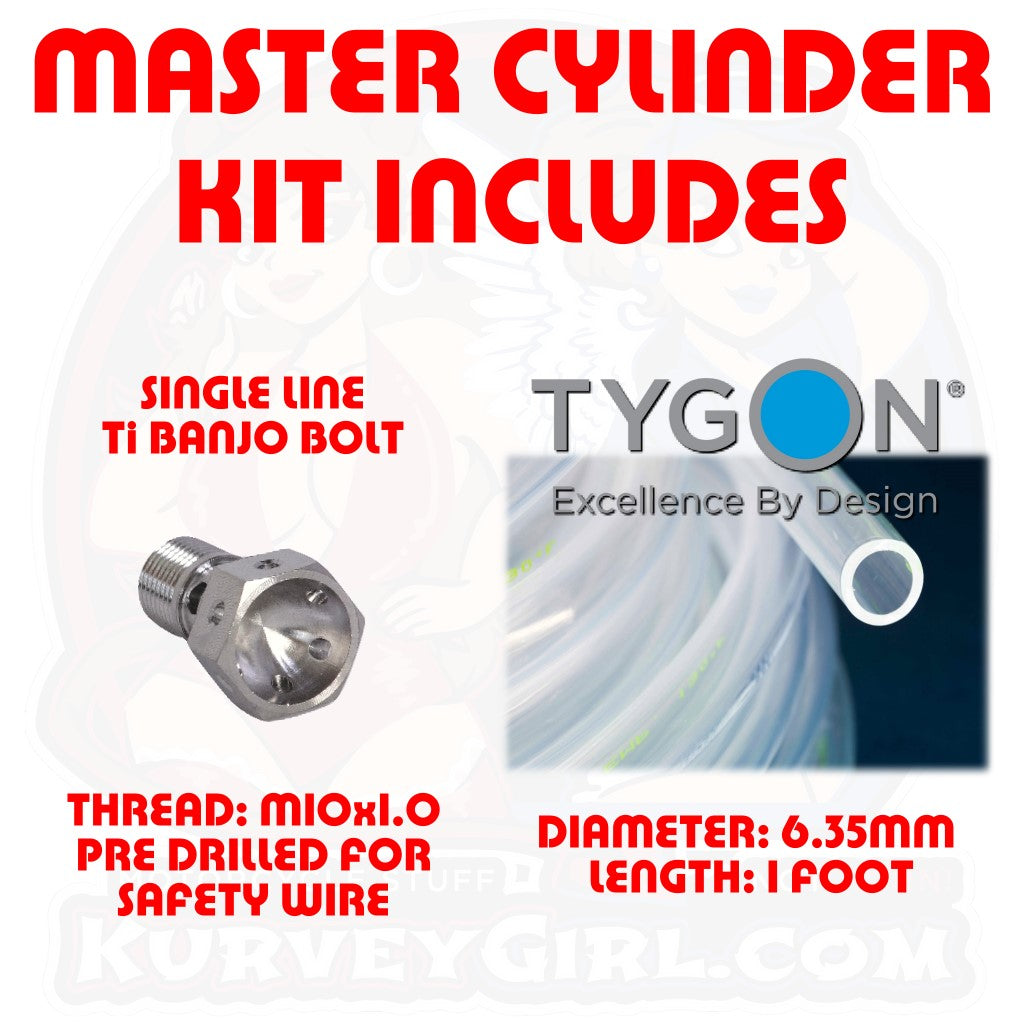

2. Tygon 2375 Tubing:
   • 6mm Diameter
   • Length: 12 inches (150mm)
3. Titanium Single Line Banjo Bolt:
   • Size:  M10 x 1.0
   • Banjo Bolt is Pre Drilled for Safety Wire.
4. Brembo Brake light switch, Normally Closed (N/C) type for brake application.
   • Brembo Service P/N: 110.4671.95 (110467195)
   • See Reference microswitch operation information below

• 15RCS is designed for single disc applications.
  • If you are not sure you should buy the Brembo 15 RCS, please contact us first.
• Adjustable pivot distance: RCS system
  • Rider can set the brake lever pivot point at one of two distances: 18 or 20 mm
  • Adjustment is simple, by turning a roller cam located on the front of the lever clevis.
• MOTO GP piston assembly:
  • The piston, seals and push-rod are the same as those of master cylinders used by all riders in MotoGP and World Superbike.
• Master cylinder body construction:
  • The body of the master cylinder is an aluminum alloy forging, machined on CNC equipment with weight-relieved by milling.
• Surface Finish: Hard anodization (Ultra-hard oxide)
  • This durable film affords especially high resistance to abrasion and corrosion.
• Brake lever features:
  • The brake lever is made up of two main components: the Racing Lever Clevis, and the lever itself, forged and hinged to the clevis.
  • The clevis incorporates a patent system allowing angular movement only in the event that the bike should happen to fall or crash.
  • This prevents the lever from rotating accidentally, and provides increased dynamic safety.
  • The lever is hinged to the cylinder body by way of a precision pin and bush assembly, guaranteeing optimum rigidity, better feel and especially high resistance to wear.
• Brake light switch:
  • A housing has been included specifically to accept the mechanical switch of a brake light circuit, when the 15 RCS is set up for street use.
  • A Brake light switch is included in the KurveyGirl.com Brembo 15 RCS Kit.

• The microswitch operates as shown in the image below.
  • Brakes Off (Lever Released), microswitch is in a OPEN/OFF condition.
  • Brakes On (Lever Pulled In), microswitch is in a CLOSED/ON condition.

• Master Cylinders are only shipped to the Payment Method Billing address.
• Shipping to US Addresses ONLY.
• No Shipping to freight forwarding services.

• All Brembo Master Cylinders, Levers, Accessories, Service and Repair Parts are a non-returnable items.
• All Master Cylinders, Levers, Accessories, Service and Repair Parts are serviced and warrantied though Brembo USA's national distributor.
