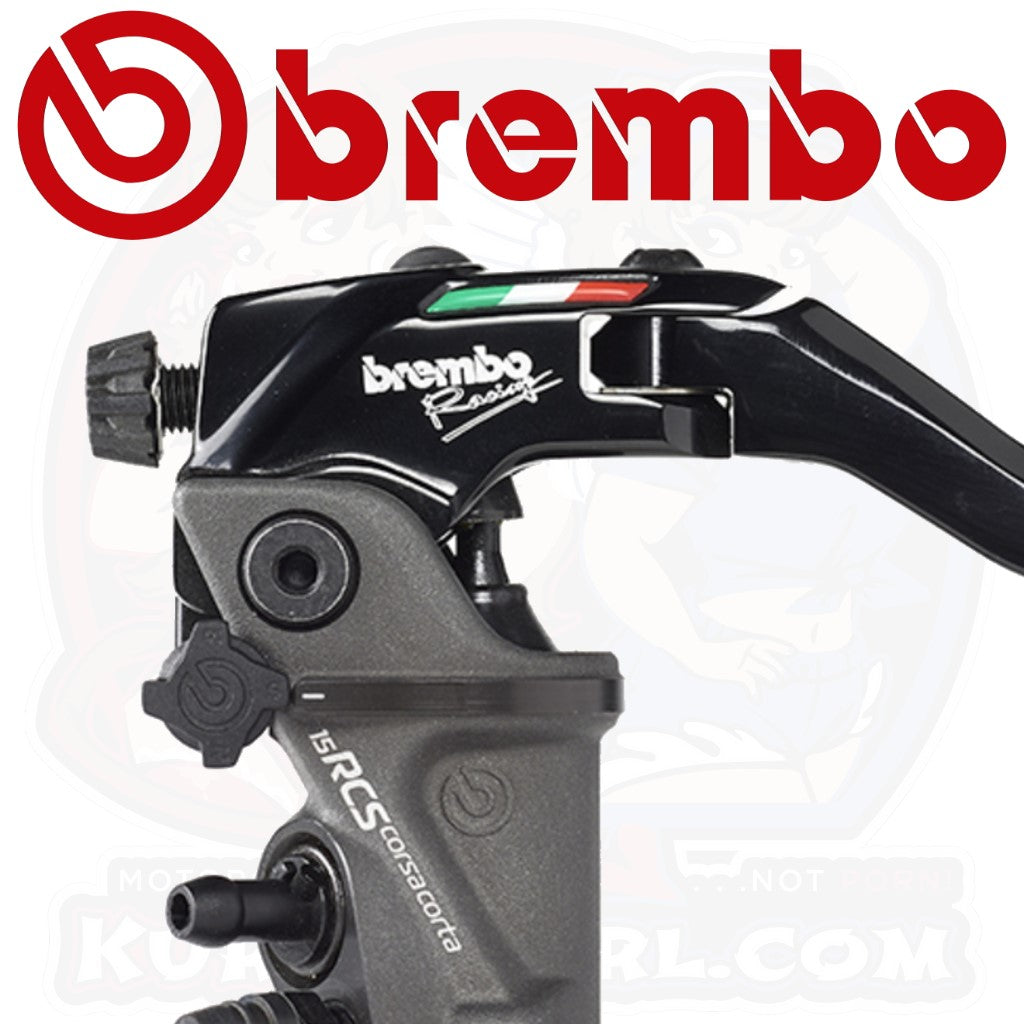

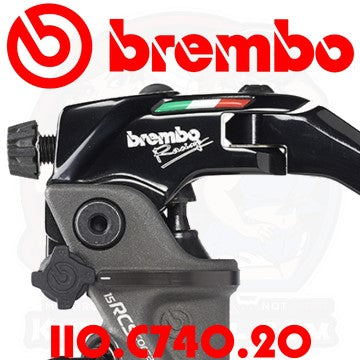

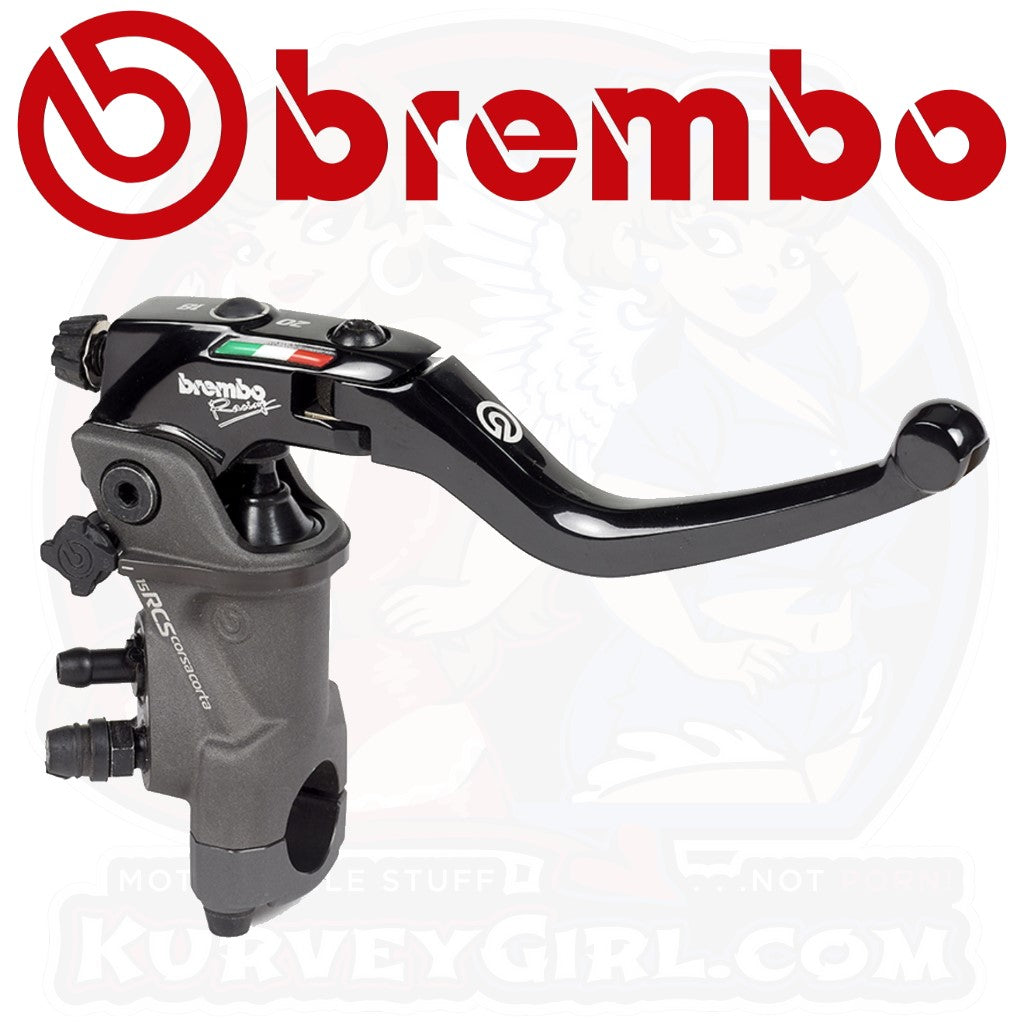

BREMBO 15 RCS Corsa Corta Brake Master Cylinder, Short Lever (110.C740.20) (110C74020)

• N: Normal Setting:
  • The bite point starts more gradually, making it suitable for city riding or braking in poor grip conditions.
• S: Sport Setting:
  • The bite point is shorter than in the N setting, producing a more dynamic response suitable for sport riding.
• R: Race Setting:
  • Shortens the initial stage of the bite point to produce the same immediate response of the master cylinders used in MotoGP.  This setting is "Track Only", and should not be used for street riding.

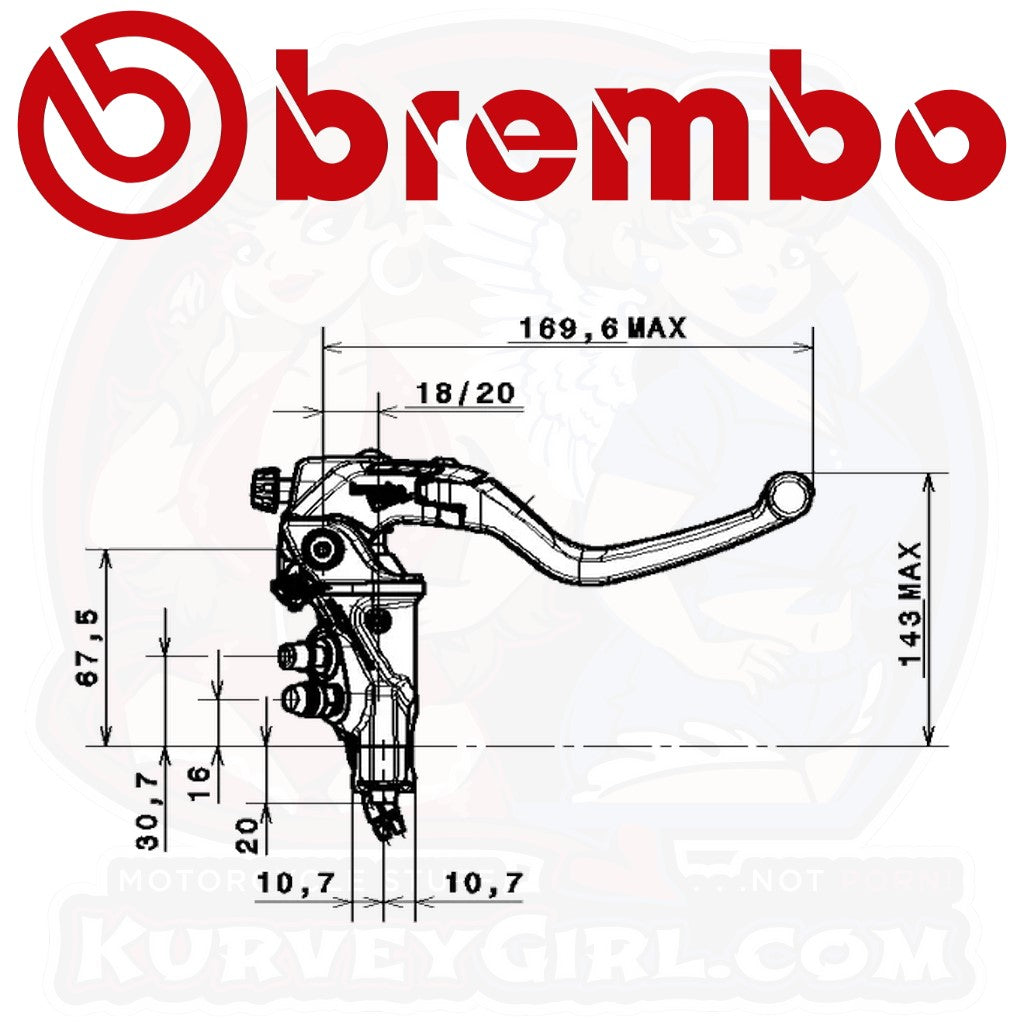

• Adjustable pivot distance: RCS system
  • Rider can set the brake lever pivot point at one of two distances: 18 or 20 mm
  • Adjustment is simple, by turning a roller cam located on the front of the lever clevis.
• MOTO GP piston assembly:
  • The piston, seals and push-rod are the same as those of master cylinders used by riders in MotoGP and World Superbike.
• 3 Different Responsiveness Modes:
  • N: Normal Setting
  • S: Sport Setting
  • R: Race Setting
• Master cylinder body construction:
  • The body of the master cylinder is an aluminum alloy forge-casting, and machined on CNC equipment.
• Surface Finish: Hard anodization (Ultra-hard oxide)
  • This durable film affords especially high resistance to abrasion and corrosion.
• Brake lever features:
  • The brake lever is made up of two main components: the Racing Lever Clevis, and the lever itself, forged and hinged to the clevis.
  • The clevis incorporates a patent system allowing angular movement only in the event that the bike should happen to fall or crash.
  • This prevents the lever from rotating accidentally, and provides increased dynamic safety.
  • The lever is hinged to the cylinder body by way of a precision pin and bush assembly, guaranteeing optimum rigidity, better feel and especially high resistance to wear.
• Brake light switch:
  • A Brembo Brand Normally Closed (N/C) Brake light switch is included in the Brembo 15 RCS CORSA CORTA Kit.
  • Please review the electrical requirements of your current brake application to identify if a Normally Closed microswitch will work for your application.

1. Tygon 2375 Tubing:
   • 1/4" (6.35mm) Diameter
   • Length: 12 inches (150mm)
2. KurveyGirl Brand Titanium Single Line Banjo Bolt:
   • Size:  M10x1.0
   • Banjo Bolt is Pre Drilled for Safety Wire.

• Included Brembo Brake light switch is a Normally Closed (N/C) type for brake application.
• Brembo Service P/N: 110.4671.95 (110467195)

• Brakes Off (Lever Released), microswitch is in a OPEN/OFF condition.
• Brakes On (Lever Pulled In), microswitch is in a CLOSED/ON condition.

Please review the electrical requirements of your current brake application to identify if a Normally Closed microswitch will work for your application.

• Master Cylinders are only shipped to the Payment Method Billing address.
• Shipping to US Addresses ONLY.
• No Shipping to freight forwarding services.

• All Brembo Master Cylinders, Levers, Accessories, Service and Repair Parts are a non-returnable items.
• All Master Cylinders, Levers, Accessories, Service and Repair Parts are serviced and warrantied though Brembo USA's national distributor.
