| Model |

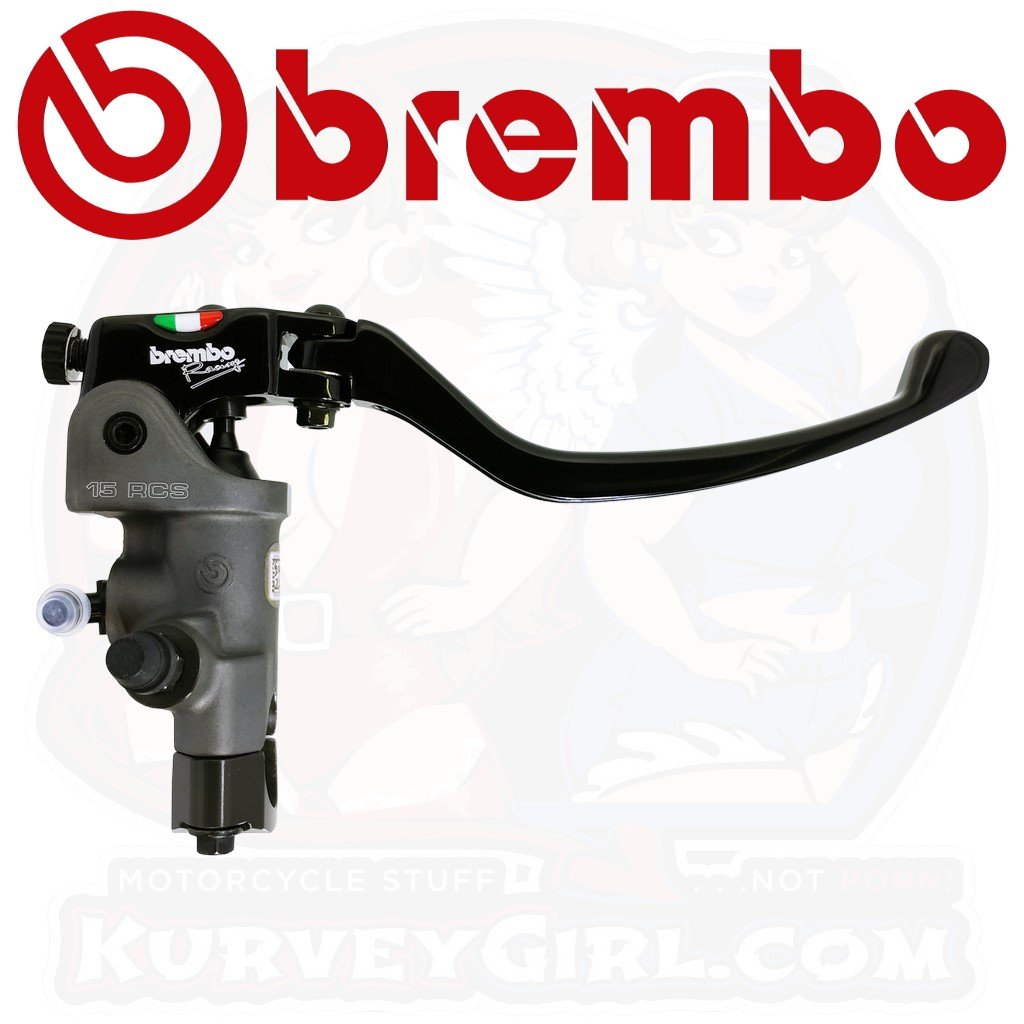

BREMBO 15 RCS for 1inch (1") Handle Bars
RADIAL BRAKE MASTER CYLINDER
|
| Part Number |
110.A897.30 - Standard Lever
[Standard Lever = Folding Lever]
|
|
|
KurveyGirl.com
Bonus Kit Parts |

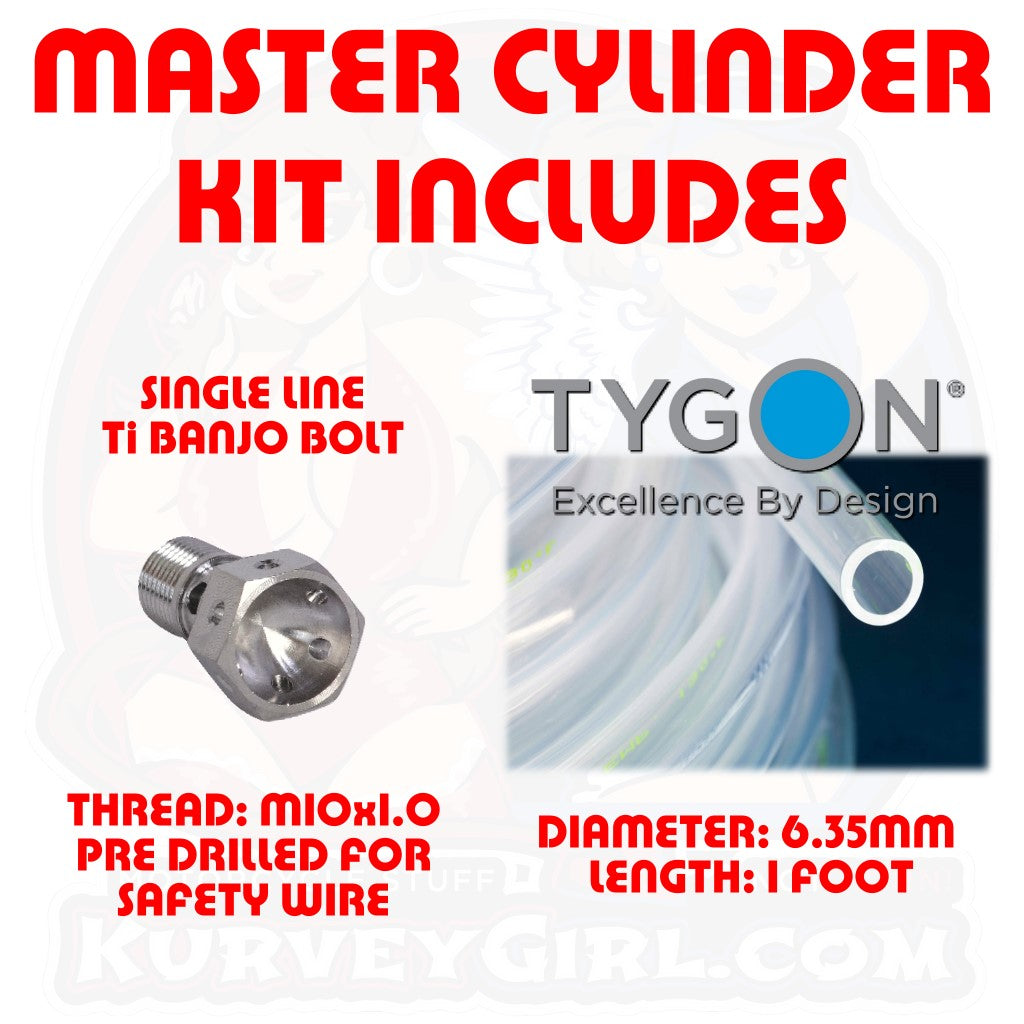

Every Kit Includes:
- Brembo 15 RCS Radial Brake Master Cylinder Assembly for 1inch handle bars
- Tygon 2375 Tubing:
- 6mm Diameter
- Length: 12 inches (150mm)
- Titanium Single Line Banjo Bolt:
- Size: M10 x 1.0
- Banjo Bolt is Pre Drilled for Safety Wire.
- Brembo Brake light switch, Normally Closed (N/C) type for brake application.
- Brembo Service P/N: 110.4671.95 (110467195)
- See Reference microswitch operation information below
|
| Return Information: |
Master Cylinders are a non-returnable item.
- All Master Cylinders are serviced and warrantied though Brembo USA's national distributor.
- If you have questions about this policy, please contact us before ordering. |
| Attachment |
Fits 1" Bar Diameter found on many Harley Davidson models. |
| Features |
- Adjustable pivot distance: RCS system
- Rider can set the brake lever pivot point at one of two distances: 18 or 20 mm
- Adjustment is simple, by turning a roller cam located on the front of the lever clevis.
- MOTO GP piston assembly:
- The piston, seals and push-rod are the same as those of master cylinders used by all riders in MotoGP and World Superbike.
- Master cylinder body construction:
- The body of the master cylinder is an aluminum alloy forging, machined on CNC equipment with weight-relieved by milling.
- Surface Finish: Hard anodization (Ultra-hard oxide)
- This durable film affords especially high resistance to abrasion and corrosion.
- Brake lever features:
- The brake lever is made up of two main components: the Racing Lever Clevis, and the lever itself, forged and hinged to the clevis.
- The clevis incorporates a patent system allowing angular movement only in the event that the bike should happen to fall or crash.
- This prevents the lever from rotating accidentally, and provides increased dynamic safety.
- The lever is hinged to the cylinder body by way of a precision pin and bush assembly, guaranteeing optimum rigidity, better feel and especially high resistance to wear.
- Brake light switch:
- A housing has been included specifically to accept the mechanical switch of a brake light circuit, when the 15 RCS is set up for street use.
- A Brake light switch is included in the KurveyGirl.com Brembo 15 RCS Kit.
|
| Microswitch Operation: |
- The microswitch operates as shown in the image below.
- Brakes Off (Lever Released), microswitch is in a OPEN/OFF condition.
- Brakes On (Lever Pulled In), microswitch is in a CLOSED/ON condition.
- Please review the electrical requirements of your current brake application to identify if a Normally Closed microswitch will work for your application.
|
| Manufacture |
 |
| International Shipping |
Not Available for International Shipping!!!
Shipping only available for USA
|
