BREMBO 14 RCS RADIAL CLUTCH MASTER CYLINDER.
- Brembo 14RCS Improves clutch feel and has easy leverage adjustments.
|
Fitting Notes regarding OEM Clutch Safety Switch:
- The 14 RCS Clutch Master Cylinder does not have a provision for a Mechanical Microswitch to be installed on the Brembo Clutch Master Cylinder.
- The use of a Banjo Pressure switch, Part Number 06.2610.30, is the recomended option from Brembo.
- A Banjo Pressure switch is not included with the 14 RCS Clutch Master Cylinder
|
| Model: BREMBO 14 RCS - RADIAL CLUTCH MASTER CYLINDER |
| Part Number: 110.A263.65 |
| Lever Type: Standard RCS Type, Folding "4 Finger" Lever |
| Attachment: Fits Standard 7/8" Bar Diameter. |
Fitting Notes:
The Brembo 14 RCS Clutch Master cylinder is used some Supermoto / Supermotard motorcycles.
Note: Please check your application carefully before ordering. |
Return Information:
Brembo Master Cylinders are a non-returnable item.
- All Master Cylinders are serviced and warrantied though Brembo USA's national distributor.
- If you have questions about this policy, please contact us before ordering. |
 |
Brembo Features:
- Adjustable pivot distance: RCS system
- Rider can set the clutch lever pivot point at one of two distances: 16 or 18 mm
- Adjustment is simple, by turning a roller cam located on the front of the lever clevis.
- MOTO GP piston assembly:
- The piston, seals and push-rod are the same as those of master cylinders used by riders in MotoGP and World Superbike.
- Master cylinder body construction:
- The body of the master cylinder is an aluminum alloy forge-casting, and machined on CNC equipment.
- Surface Finish: Hard anodization (Ultra-hard oxide)
- This durable film affords especially high resistance to abrasion and corrosion.
- Clutch lever features:
- The clutch lever is made up of two main components: the Racing Lever Clevis, and the lever itself, forged and hinged to the clevis.
- The clevis incorporates a patent system allowing angular movement only in the event that the bike should happen to fall or crash.
- This prevents the lever from rotating accidentally, and provides increased dynamic safety.
- The lever is hinged to the cylinder body by way of a precision pin and bush assembly, guaranteeing optimum rigidity, better feel and especially high resistance to wear.
|

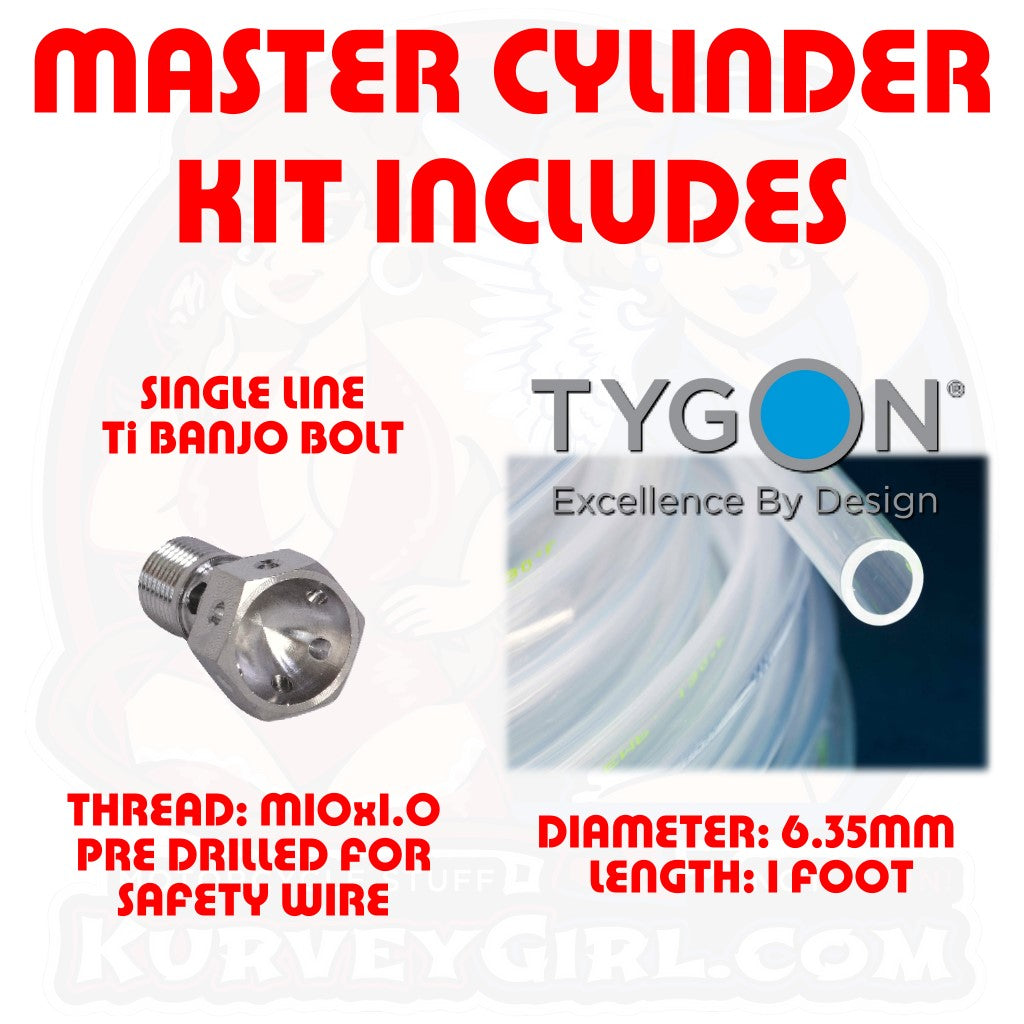

KurveyGirl.com Bonus Kit Parts:
- Tygon 2375 Tubing:
- 1/4" (6.35mm) Diameter
- Length: 12 inches (150mm)
- KurveyGirl Brand Titanium Single Line Banjo Bolt:
- Size: M10x1.0
- Banjo Bolt is Pre Drilled for Safety Wire.
|
 |
|
Not Available for International Shipping!!!
Shipping only available for USA
|
