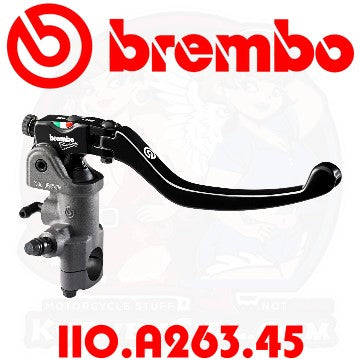

Brembo 14 RCS Radial Brake Master Cylinder Kit Close Up 110A26345 110.A263.45
Brembo 14 RCS Radial Brake Master Cylinder Kit 110A26345 110.A263.45 Main2

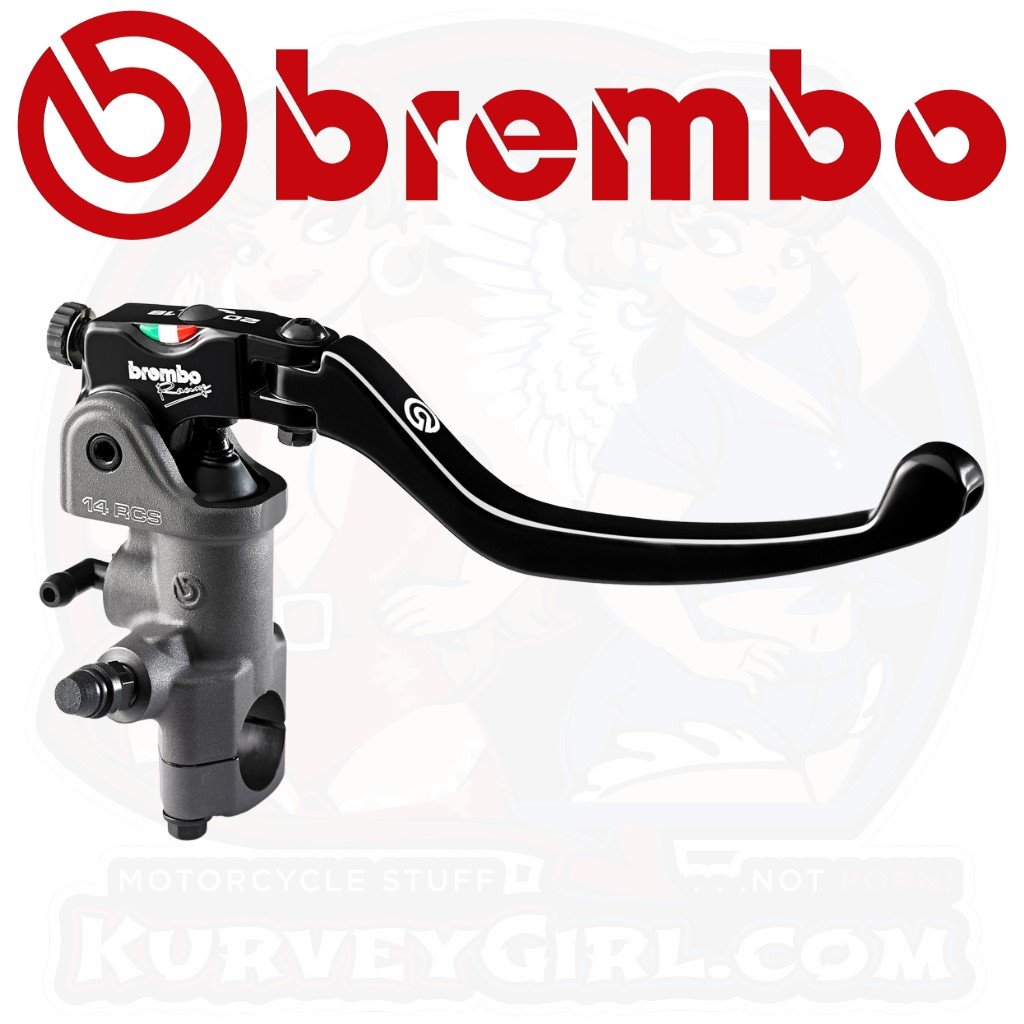

Brembo 14 RCS Radial Brake Master Cylinder Kit 110A26345 110.A263.45
Brembo 14 RCS Radial Brake Master Cylinder Kit 110A26345 110.A263.45
KurveyGirl Brembo Kit includes Double Banjo and tygon tubing free of charge
Brembo 14 RCS Radial Brake Master Cylinder Kit Close Up 110A26345 110.A263.45
Brembo 14 RCS Radial Brake Master Cylinder Kit 110A26345 110.A263.45 Main2
Brembo 14 RCS Radial Brake Master Cylinder Kit 110A26345 110.A263.45
Brembo 14 RCS Radial Brake Master Cylinder Kit 110A26345 110.A263.45
KurveyGirl Brembo Kit includes Double Banjo and tygon tubing free of charge

BREMBO 14 RCS Radial Brake Master Cylinder Kit (110.A263.45) (110A26345)

$275.00 USD
/
Shipping calculated at checkout.
  • In stock
  • Inventory on the way

Shipping to USA Only

Shipping & Return Information:
Shipping Information:
  • Master Cylinders are only shipped to the Payment Method Billing address.
  • Shipping to US Addresses ONLY.
  • Signature Required at time of delivery.
  • No Shipping to freight forwarding services.
Return Information:
  • Brembo Master Cylinders are a non-returnable item.
  • All Master Cylinders are serviced and warrantied though Brembo USA's national distributor.
If you have questions about this policy, please contact us before ordering.

DESCRIPTION FITMENT SHIPPING & RETURNS PART NUMBER(S) ADDITIONAL INFO
DESCRIPTION
Brembo Racing LogoBREMBO 14 RCS "Underbone" RADIAL BRAKE MASTER CYLINDER: For Single Disc Applications!!!!



Model BREMBO 14 RCS
RADIAL BRAKE MASTER CYLINDER
Part Number 110.A263.45 Standard Lever
          [Standard Lever = Folding Lever]
Special Note: 14 RCS was developed single disc applications.
If you are not sure you should buy the Brembo 14 RCS, please contact us first!!!!
Brembo 14 RCS Radial MasterCylinder 110.A263.45 Dogbone

KurveyGirl.com
Bonus Kit Parts
Every Kit Includes:
  1. Brembo 14 RCS Radial Brake Master Cylinder Assembly.
  2. Tygon 2375 Tubing:
    • 6mm Diameter
    • Length: 12 inches (150mm)
  3. Titanium Single Line Banjo Bolt:
    • Size:  M10 x 1.0
    • Banjo Bolt is Pre Drilled for Safety Wire.
  4. Brembo Brake light switch, Normally Closed (N/C) type for brake application.
    • Brembo Service P/N: 110.4671.95 (110467195)
    • See Reference microswitch operation information below
Return Information: Master Cylinders are a non-returnable item.
- All Master Cylinders are serviced and warrantied though Brembo USA's national distributor.
- If you have questions about this policy, please contact us before ordering.
Attachment Fits Standard 7/8" Bar Diameter
Features
  • 14RCS "Underbone" is designed for single disc applications.
    • If you are not sure you should buy the Brembo 14 RCS, please contact us first.
  • Adjustable pivot distance: RCS system
    • Rider can set the brake lever pivot point at one of two distances: 18 or 20 mm
    • Adjustment is simple, by turning a roller cam located on the front of the lever clevis.
  • MOTO GP piston assembly:
    • The piston, seals and push-rod are the same as those of master cylinders used by all riders in MotoGP and World Superbike.
  • Master cylinder body construction:
    • The body of the master cylinder is an aluminum alloy forging, machined on CNC equipment with weight-relieved by milling.
  • Surface Finish: Hard anodization (Ultra-hard oxide)
    • This durable film affords especially high resistance to abrasion and corrosion.
  • Brake lever features:
    • The brake lever is made up of two main components: the Racing Lever Clevis, and the lever itself, forged and hinged to the clevis.
    • The clevis incorporates a patent system allowing angular movement only in the event that the bike should happen to fall or crash.
    • This prevents the lever from rotating accidentally, and provides increased dynamic safety.
    • The lever is hinged to the cylinder body by way of a precision pin and bush assembly, guaranteeing optimum rigidity, better feel and especially high resistance to wear.
  • Brake light switch:
    • A housing has been included specifically to accept the mechanical switch of a brake light circuit, when the 14 RCS is set up for street use.
    • A Brake light switch is included in the KurveyGirl.com Brembo 14 RCS Kit.
Microswitch Operation:
  • The microswitch operates as shown in the image below.
    • Brakes Off (Lever Released), microswitch is in a OPEN/OFF condition.
    • Brakes On (Lever Pulled In), microswitch is in a CLOSED/ON condition.

Brembo Micro Switch opperation master cylinders 110.4671.95 110467195

  • Please review the electrical requirements of your current brake application to identify if a Normally Closed microswitch will work for your application.
Manufacture Brembo Racing Logo
Information From Brembo's November 5th, 2013 Press Release
New 14 RCS master cylinder
The brand new 14 RCS master cylinder from Brembo allows riders to choose between heavy or gradual braking depending on road conditions and weather, personal taste and the overall feeling of the motorcycle.
  • The 14 RCS, with a 14 mm diameter floating piston can be used on most single disc braking systems with 2-pistons fixed or floating calipers.
  • The RCS system (Ratio Click System) is the pioneering adjustment that enables the rider to achieve his ideal riding style.
With the new 14 RCS pump it is like to have two master cylinders in one product. The 14x18 mm enables more gradual braking and requires a longer lever stroke while the 14x20 mm generates a more classic road riding feeling.

However, the configuration can be changed in a matter of seconds by setting the ratio distance between values of “18” or “20” by simply turning the regulator on the front face of the steering arm 180 degrees with a screwdriver. The cam system (red marking when set to 18 mm, black marking when set to 20 mm) adjusts
the distance between the pivot point and mounting point on the lever pushrod by 2 millimeters. This redistributes the braking force without altering performance.

In common with all RCS master cylinders, the 14 RCS also features a microswitch kit for the brake light actuation and a special connection fitting for the hydraulic hose.

This new master cylinder can be used on the most popular scooter with single 2-piston fixed caliper, or floating, with single disc, ensuring top performance for this category.
International Shipping
Not Available for International Shipping!!!
Shipping only available for USA



FITMENT
SHIPPING & RETURNS
Shipping & Return Information:
Shipping Information:
  • Master Cylinders are only shipped to the Payment Method Billing address.
  • Shipping to US Addresses ONLY.
  • No Shipping to freight forwarding services.
Return Information:
  • All Brembo Master Cylinders, Levers, Accessories, Service and Repair Parts are a non-returnable items.
  • All Master Cylinders, Levers, Accessories, Service and Repair Parts are serviced and warrantied though Brembo USA's national distributor.
If you have questions about this policy, please contact us before ordering.
