Valve Stem Angled 83 Degree 8.3 mm Aluminum Silver 2 Pack
Valve Stem Drawing Measurements Angled 83 Degree 8.3 mm Gen 2 Aluminum 2 Pack Racing Bridgeport
Valve Stem Angled 83 Degree 8.3 mm Aluminum Silver 2 Pack Racing Bridgeport 2
Valve Stem Angled 83 Degree 8.3 mm Aluminum Silver 2 Pack Racing Bridgeport
Valve Stem Angled 83 Degree 8.3 mm Aluminum Silver 2 Pack Racing Bridgeport
KurveyGirl Bridgeport Valve Stems 11.3mm 8.3mm Original Made in Italy Genuine

83deg Aluminum 8.3mm Racing Angled Valve Stems - Silver (2 pcs)

$29.99 USD Regular price
/
Shipping calculated at checkout.
Free Shipping in USA
DESCRIPTION FITMENT SHIPPING & RETURNS PART NUMBER(S) ADDITIONAL INFO
DESCRIPTION
Free Shipping in USA
BRIDGEPORT 2nd Generation 83° Aluminum Racing Angled Valve Stem For Most Italian and Triumph Motorcycle Wheels (8.3mm)
  • Rim Hole: 8.3mm
  • Color: SILVER

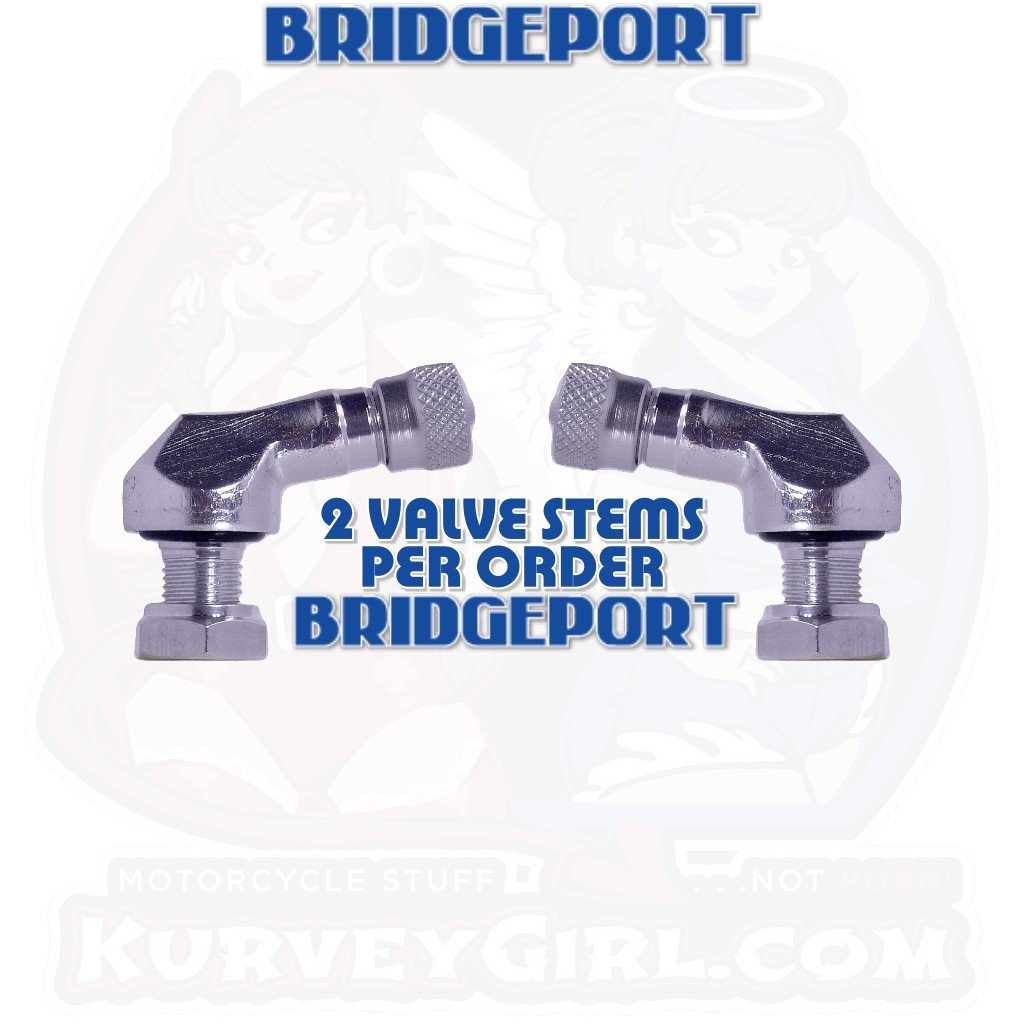

  • Qty: 2 Valve Stems Per Order

Note: Most every Japanese OEM tubeless tire rim since the early 80's, uses the larger 11.3mm (0.453in) valve stem.

  • BRIDGEPORT 2nd GEN valve stem with updated smooth side design
    • Same mounting and sealing system as 1st GEN design.
  • Ultra light weight valve stem, for when only the absolute best will do in a valve stem.
  • These are the same valve stems used by Ducati (8.3mm Size).

8.3mm ValveStem - 2 Pack - Bridgeport - 2ndGeneration - 8.3mm - SILVER
Free Shipping in USAFree Shipping in USAFREE SHIPPING IN USA
Shipped Via USPS 1st Class Mail
Discounted shipping for International customers.
Valve Stem Features:
  • Size: 8.3mm (0.357in) [Valve Stem Opening in Rim]
    • Small European Sized: See fitting notes below
  • Fits:
    • Most Italian (Ducati, MV Agusta, Aprilia) and Triumph Motorcycles
    • Aftermarket Racing Wheels [Examples: Cerchi Antera, Marvic, Marchesini, OZ Racing, Brembo]
  • Valve angled at 83° for easy access for inflating and checking tire pressure.
  • Qty: 2 Valves per package.
  • Weight: 9g per valve.

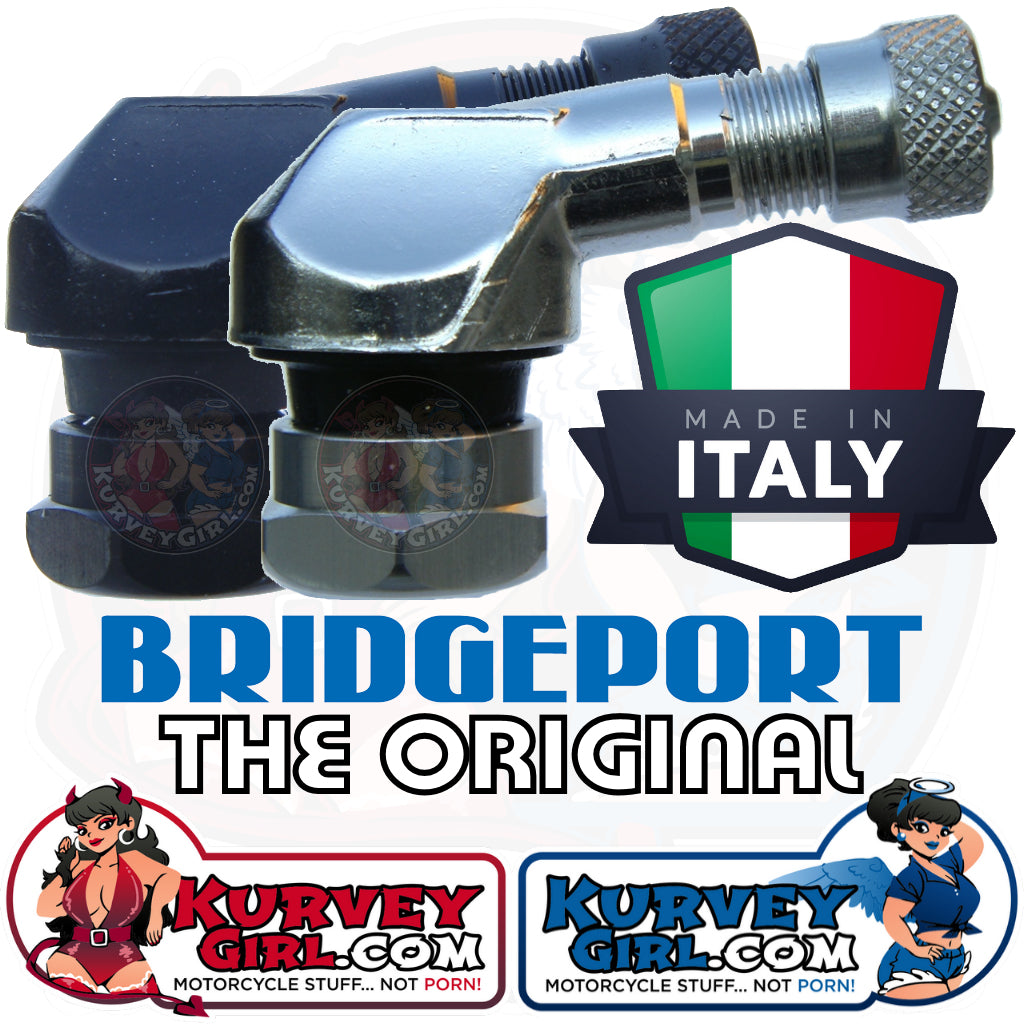

  • Made in Italy.
  • All aluminum construction.
  • Fixed to the rim with a locking nut, so it can not be bent or come free of your rim.
  • Inside air valve does not open at high speed due to centrifugal force.
COLOR: SILVER

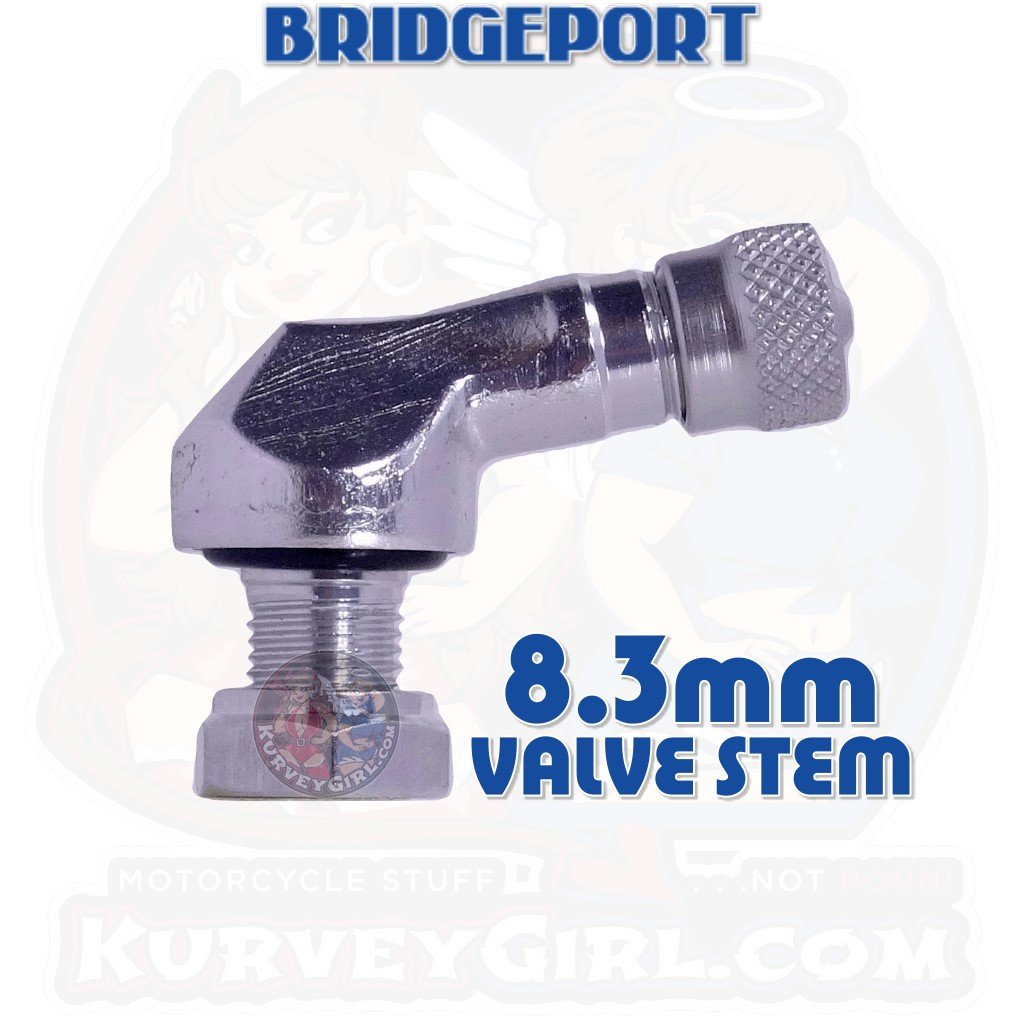

8.3mmValveStem - Bridgeport - 2nd Generation - 8.3mm - SideView - SILVER
Assembly Instructions:
  1. Remove old valve stem
  2. Clean both valve body and valve stem hole on rim.
  3. Insert valve onto rim, taking care not to damage the gasket at the base of the valve stem.
  4. Attach the nut on the inside of the rim to the valve stem threaded body.
  5. Set valve stem torque to 7Nm to 10Nm. (5.1~7.3 ft-lb / 62~88 in-lb)
Note:  Excessive torque may damage the all aluminum valve stem threads.

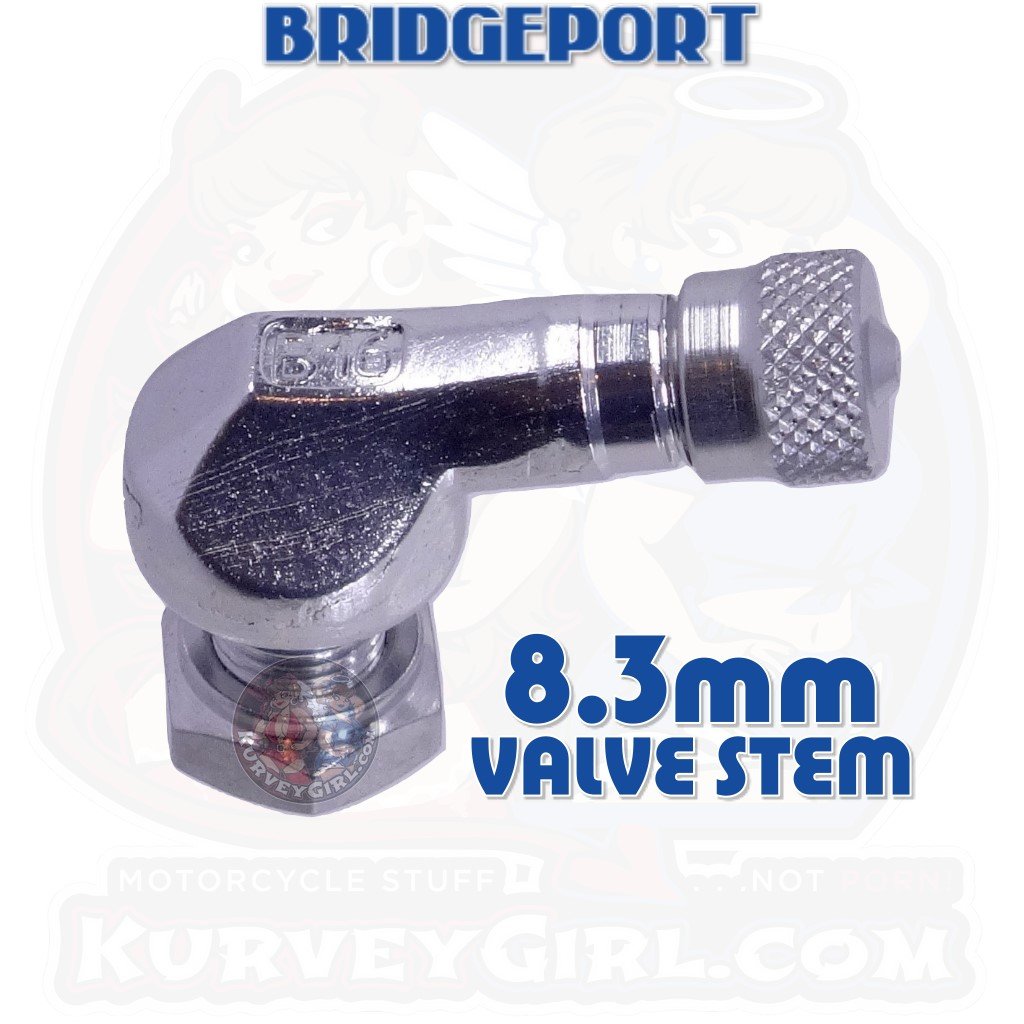

8.3mm ValveStem - Bridgeport - 2ndGeneration - 8.3mm - ISO - SILVER
2nd Gen Bridgeport Valve Stem Installed 2015 Yamaha R1 wheel kurveygirl
2nd Gen Valve Stem Front View:
(11.3mm Valve Stem Shown)
2nd Gen Bridgeport Valve Stem Installed 2015 Yamaha R1 wheel kurveygirl Back
2nd Gen Valve Stem Front View:
(11.3mm Valve Stem Shown)
Fitting general rule of thumb: 8.3mm fits most Italian (Ducati, MV Agusta, Aprilia) and Triumph Motorcycles.

Additional fitting information: Valve stems needs a flat region of 15.3mm (0.6in) around the valve stem.
  • To check the clearance, use a socket that is about 16mm in outer diameter.
  • Place socket around the current valve stem with the valve stem sticking though the center of the socket.
  • If you have a flat region that fits a socket of about 16mm, then you should have enough clearance.
After Market Rim Fitting:
  • Rule of Thumb: 8.3mm Fits Aftermarket Rims (Cerchi Antera, Marvic, Marchesini, OZ Racing, Brembo, Etc.)
    • Check the rim opening, some used rims have been modified to accept the larger 11.3mm valve stem.
    • Some manufactures make special "Street" rims with 11.3mm.
  • Check your aftermarket rim valve stem hole before ordering!!!
