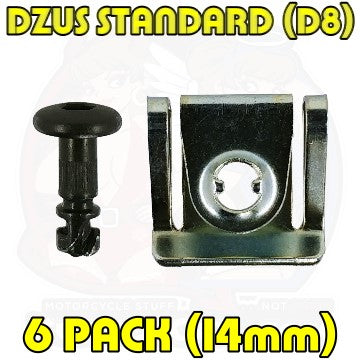

| Complete 6pcs Kit for attaching OEM motorcycle bodywork together. 14mm Dzus® bolts are longer to fit plastic bodywork, or 3 panels of fiberglass bodywork together. |
| These button head bolts provide a more "OEM" look and require an Allen Tool to remove the bolts from the bodywork. For those people who have bought aftermarket fiberglass bodywork for the STREET and want a cleaner "OEM" Look to their fasteners. |

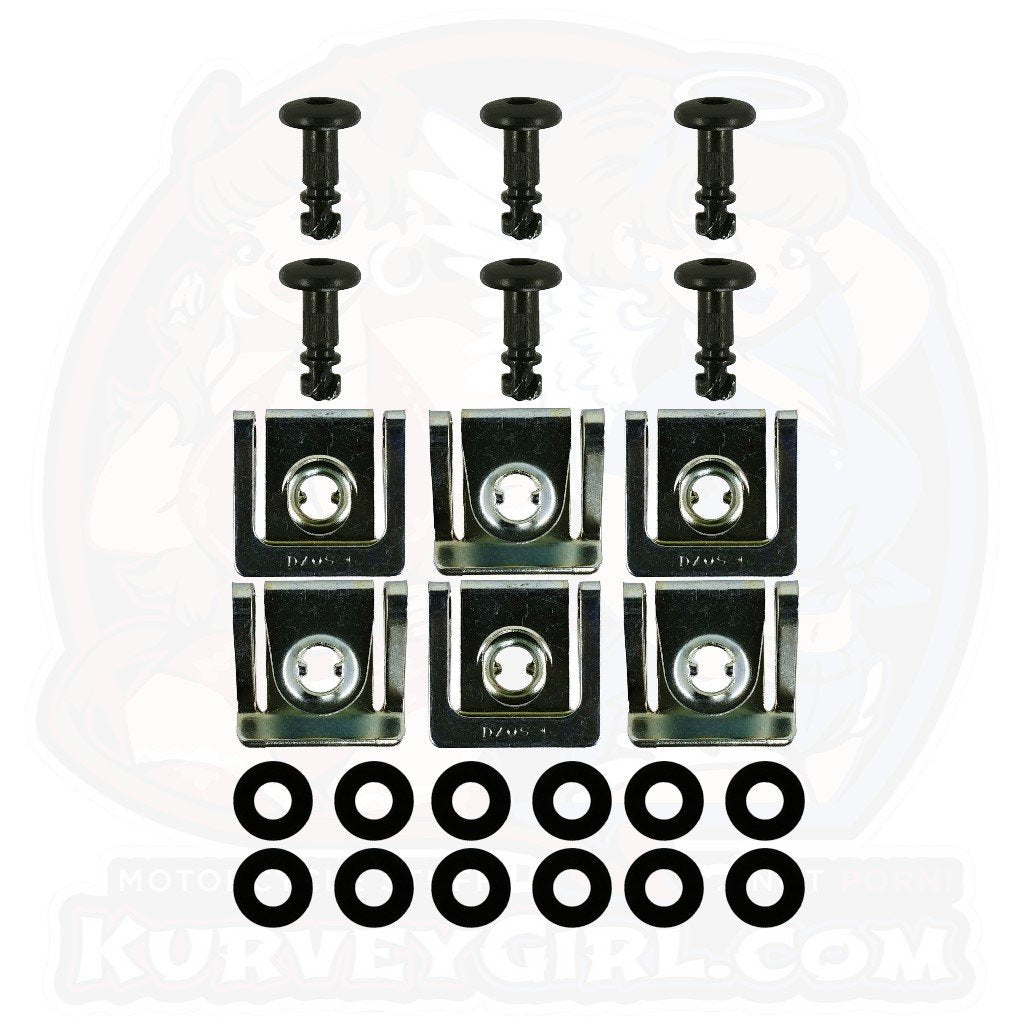

| Kit Includes: | |
| 6 - 6mm Button Head Panex D8 Fasteners | Length: 14mm Coating: Zinc Plate with BLACK Chromate |
| 6 - 6mm Clip on Panex D8 Retainers | Coating: Zinc Plate with Chromate |
| 14 - Retaining Washers. | Material: High density polyethylene 2 extra washers for your tool box |
| Note: Street bikes OEM bodywork mounting tabs most likely will require some modification for most motorcycles. This is a "Do It Yourself" KIT and removal of OEM wellnuts and Spring nuts will be required. OEM Bodywork mounting tabs may require some trimming to mount Dzus® clip to same location as the OEM Wellnuts and Spring Nuts. The use of a razor blade, rotary trim tool and drill bit will help remove plastic ribs for space around clip and enlarge the mounting hole to fit the 6mm Dzus® bolt. | |
|
NEW D8 Style Dzus® Panex Bolts:
|
|
  |
|
| Combine 4pcs and 6pcs kits to create custom kit sizes... | ||
| 4pcs kits | 6pcs kits | Total Number of Dzus® |
| 1 - 4 pcs kit | 1 - 6 pcs kit | 10 Dzus® Pcs |
| 2 - 4 pcs kit | 1 - 6 pcs kit | 14 Dzus® Pcs |
| 1 - 4 pcs kit | 2 - 6 pcs kit | 16 Dzus® Pcs |
| Dzus® Button Head Bolts Specs & Drawing | |
 |
Additional Dzus® Bolt Specs / Info
|
| Dzus® Clip Specs & Drawing | |
 |
Dzus® Clip Specs / Info
|
| Dzus® is a Registered Trademark of Southco Inc. |
