Dzus Pro D4 Slot Head S-Spring Clip On Black 45 6 Pack
Dzus Pro Slot Head S-Spring Clip On 45 6 Pack Black
Dzus Pro Slot Head Bolt 45 Spare Part Black
Dzus Pro Slot Head Bolt 45 Spare Part Black Iso

6pc: Fiberglass Bodywork, DZUS PRO (D4), Slot Head, S-Spring, Clip-On, Black, (45)

$39.50 USD Regular price
/
Shipping calculated at checkout.
  • In stock
  • Inventory on the way
DESCRIPTION FITMENT SHIPPING & RETURNS PART NUMBER(S) ADDITIONAL INFO
DESCRIPTION

6 Piece - BLACK FINISH DZUS PRO SLOT HEAD KIT

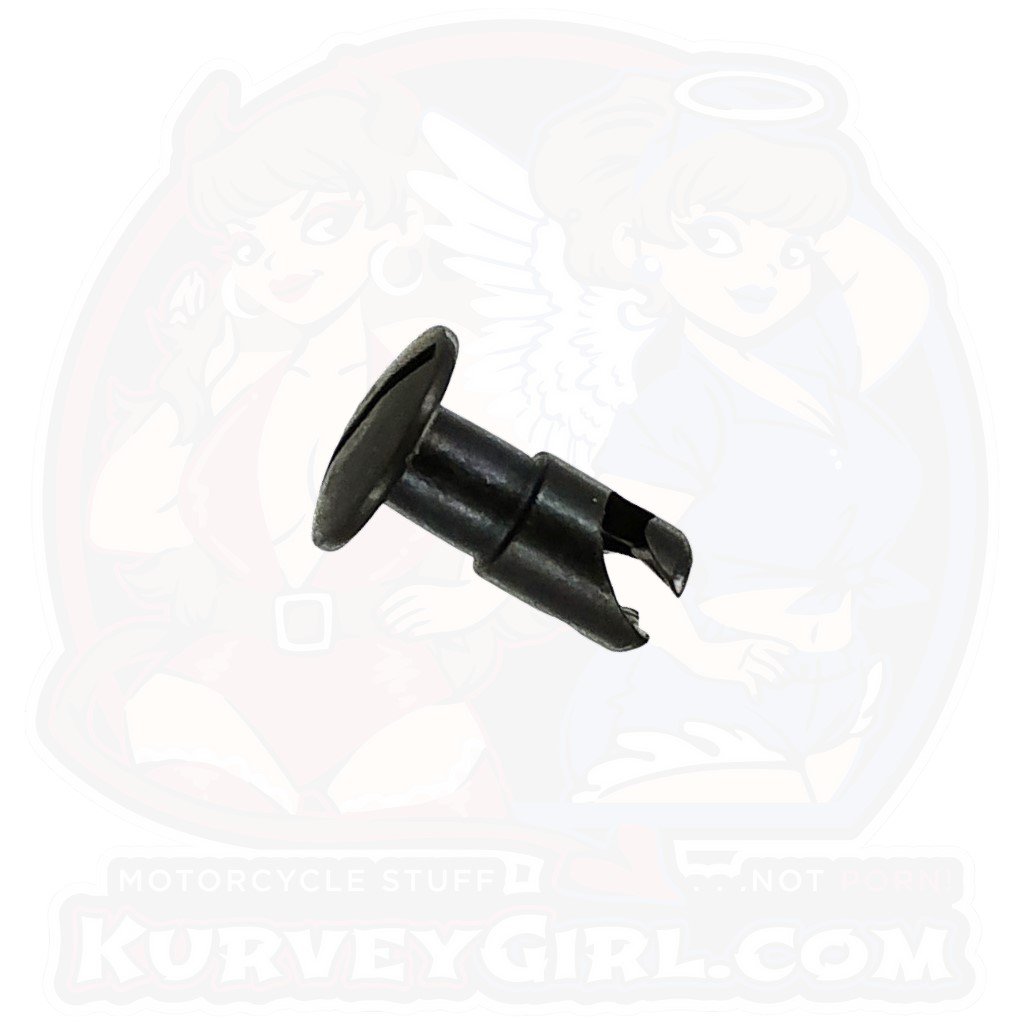

DzusPro Black Slot Head Bolt - Detail - D4 Dzus® Professional Grade Fasteners: Same style fasteners found on top motorcycle road racing bikes.  Spring Retention system for maximum grip.
  • This kit is for the professional racer who takes their bodywork off several times a race weekend!!!!
  • Note: This kit is for the person who has installed Motorcycle Fiberglass Bodywork before!!!
  • Slot Head Dzus® bolts duplicate the "Factory Racer" look that you see on Top Factory MotoGP and MotoAmerica team race bikes.
  • Note: This kit includes Clip-On Fasteners, providing easier installation!!!

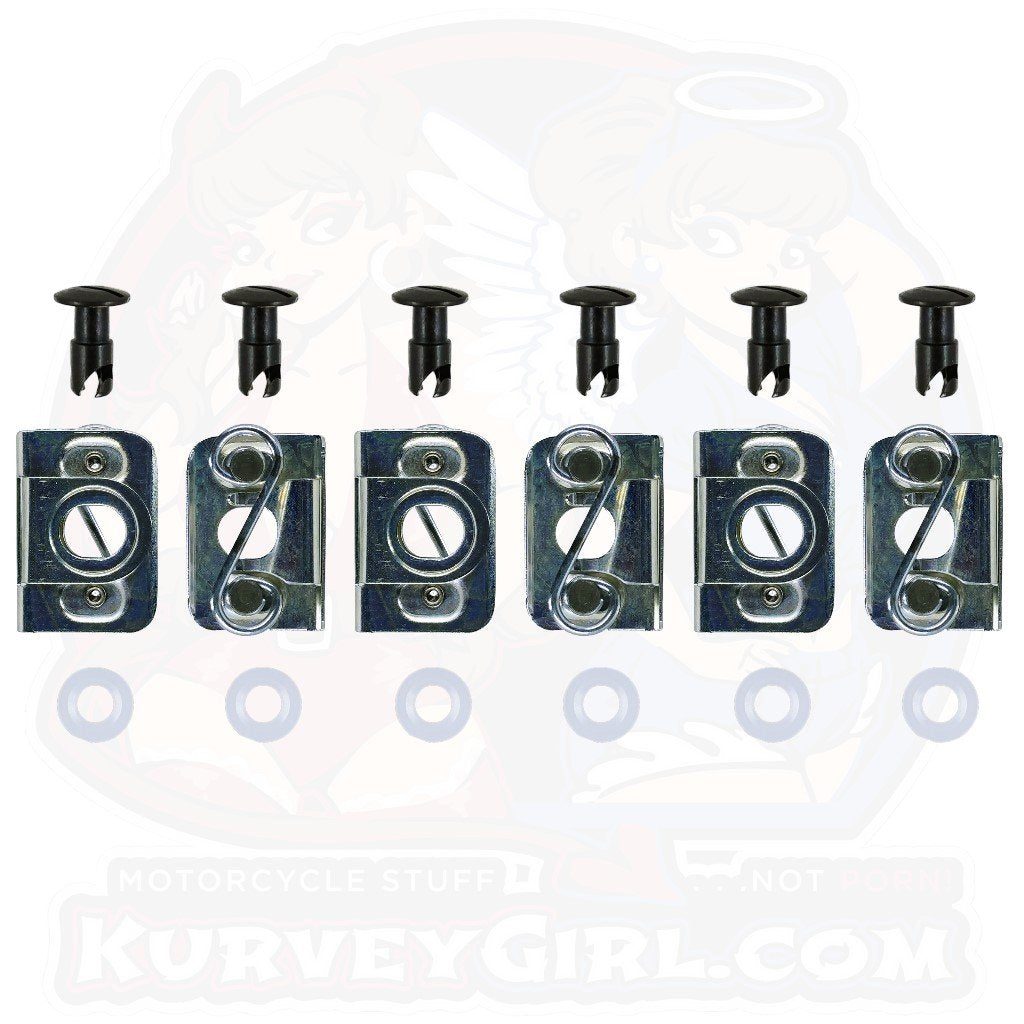

Kit Includes:
6 - 6mm Slot Head Dzus® Fasteners (Stud Bolt) Coating: Black Oxide
6 - S-Spring Clip-On Retainers Coating: Zinc Trivalent Clear with Trivalent Chromate Clear.
Finish Specifications: ASTM-B-633, Type III, SC 2
6 - Plastic Grommets (to hold the Stud Bolt on bodywork) Material: High density polyethylene

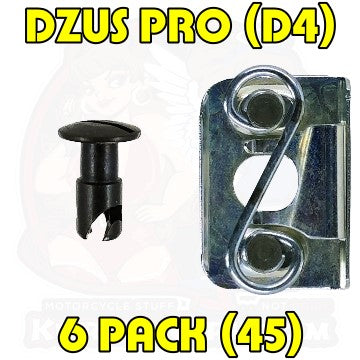

Dzus Pro - Silver - Slot Head - Black - Clip-On - 6Pack Kit - Main - D4

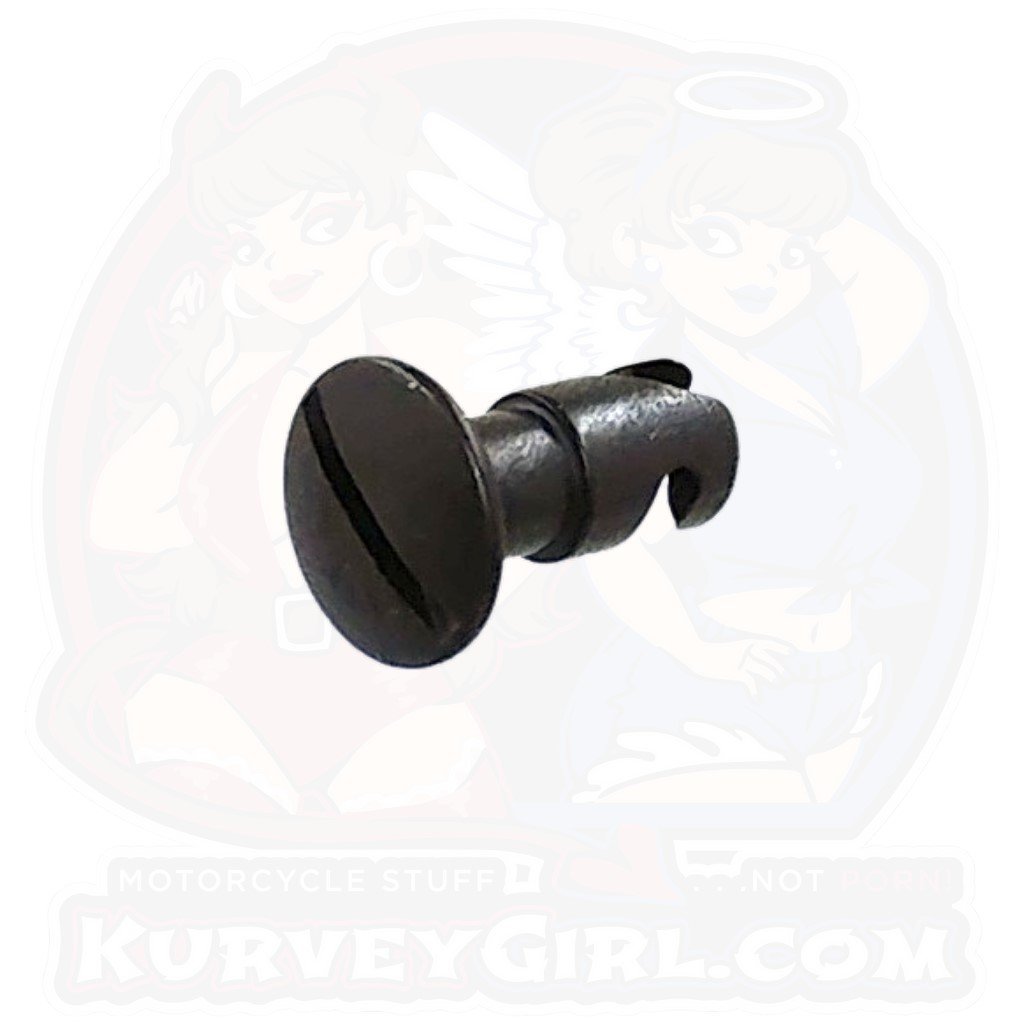

Dzus Pro - Black - Slot Head - Clip-On - Detail - D4


Dzus® Bolts Specs & Drawing
Dzus Pro - Slot Head Bolt - Drawing - D4
Additional Dzus® Pro Slot Head Bolt Specs / Info

  • (L) Dimension:  11.43mm (.450in)
  • (U) Under Cut Dimension:  5.72mm (.225in)
  • Grip Range: 4.0mm to 5.6mm
    • Maximum Grip with out washer
    • Minimum Grip using washer
  • Bodywork Hole size: 6.5mm (0.250in)

Dzus® Clip Specs & Drawing
Dzus Pro - Clip-On Plate Drawing
Dzus® Pro Clip-On Specs / Info

  • Recommended hole center from edge: 10.7mm (.420in)
  • Minimum flat space for clip: 20mm
  • Minimum clearance behind bodywork:13mm
  • (H) Dimension:  7.1mm (.280in)
Dzus® Clip Mounting Diagrams
Dzus Pro - Clip-On S-Spring - Install Diagram
Dzus® Pro - Clip On
Mounting Dimensions
  • Suggested Inner Panel (Frame) Thickness:
    • 0.91mm ~ 3.25mm (0.036in - 0.128in)
  • Minimum Flat Panel Thickness: ~20mm (0.75 in)
  • Suggested Mounting Hole Diameter: 12mm (0.475 in)
  • Mounted S-Spring to the inside of the body
Dzus Pro - Clip-On S-Spring - Install Diagram 2

Dzus® is a Registered Trademark of Southco Inc.
