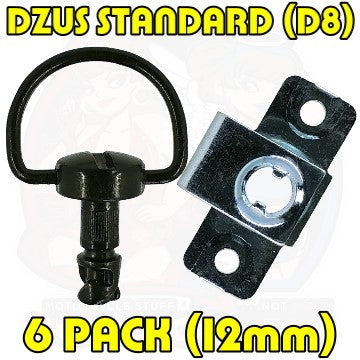

Dzus D8 12 mm D Ring Bolt Rivet On Black 6 Pack
Dzus D8 12 mm D Ring Rivet On 6 Pack Black

6pc: Fiberglass Bodywork, DZUS (D8), D-Ring, Rivet-On, Black, WL=12mm

$26.00 USD Regular price
/
Shipping calculated at checkout.
  • In stock
  • Inventory on the way
DESCRIPTION FITMENT SHIPPING & RETURNS PART NUMBER(S) ADDITIONAL INFO
DESCRIPTION
Complete 6pc Kit for attaching fiberglass motorcycle bodywork together.  12mm Dzus® bolts are the "Rule of Thumb" length for fiberglass bodywork.  12mm Dzus® bolts grip up to 5.4mm total bodywork thickness

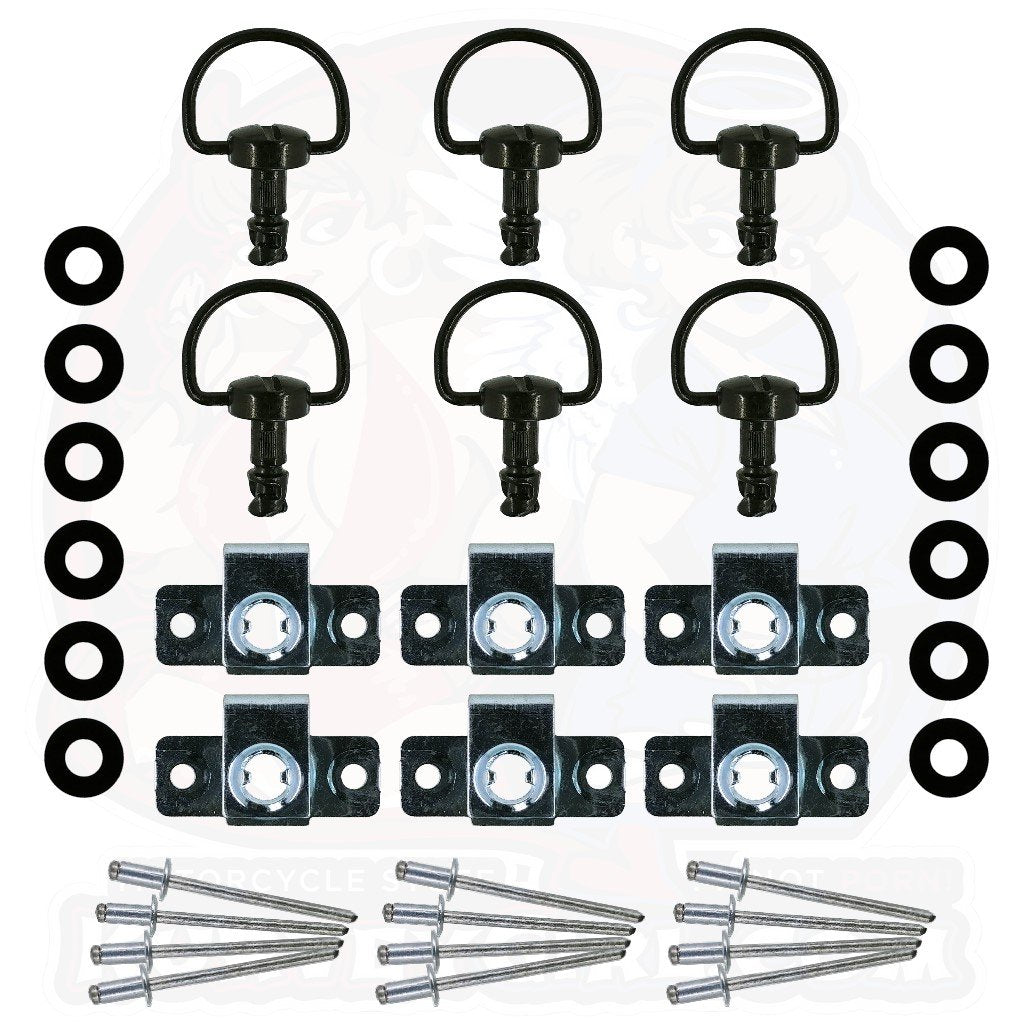

Kit Includes:
6 - 6mm D-Ring Panex D8 Fasteners Length: 12mm
Coating: Zinc Plate with BLACK Chromate
6 - 6mm rivet on Panex D8 Retainers Coating: Zinc Plate with Chromate
14 - Pop Rivets For attaching Rivet on Retainers
2 extra pop rivets just in case
14 - Retaining Washers. Material: High density polyethylene
2 extra washers for your tool box
NEW D8 Style Dzus® Panex Bolts:
  • New Generation Dzus® Panex Bolt that is lighter than original D3 Style Dzus® Panex Bolt
  • 100% Compatible with old D3 Mounting Hardware.
  • Thinner main bolt shaft with 6mm Engagement head.
  • New smaller Black retaining washers.
Dzus Panex D8 - 6 Pack - Rivet - Black - 12mm Working LengthDzus Panex D8 - Single Bolt Kit - Silver - Rivet On - Washers - Rivets - 12mm Working Length
Combine 4pcs and 6pcs kits to create custom kit sizes...
4pcs kits 6pcs kits Total Number of Dzus®
1 - 4 pcs kit 1 - 6 pcs kit 10 Dzus® Pcs
2 - 4 pcs kit 1 - 6 pcs kit 14 Dzus® Pcs
1 - 4 pcs kit 2 - 6 pcs kit 16 Dzus® Pcs
Dzus® Bolts Specs & Drawing
Dzus Panex D8 Bolt Specs - Drawing
Additional Dzus® Bolt Specs / Info

  • (L) Working Length: 12mm
  • Shaft Length : 15mm
  • Grip Range: 3.5mm to 5.4mm
    • Maximum Grip with out washers
    • Minimum Grip using 2 washers
  • Minimum bodywork Hole size: 6.2mm
    • English: 1/4 Inch
Dzus® Clip Specs & Drawing
Dzus Panex D8 Rivet Plate Specs - Drawing
Dzus® Rivet Plate Specs / Info

  • Minimum flat space for rivet plate mounting: 33mm
  • Minimum clearance behind bodywork: 9mm
  • Grip Range: 3.5mm to 5.4mm
    • Maximum Grip with out washers
    • Minimum Grip using 2 washers
Dzus® is a Registered Trademark of Southco Inc.
