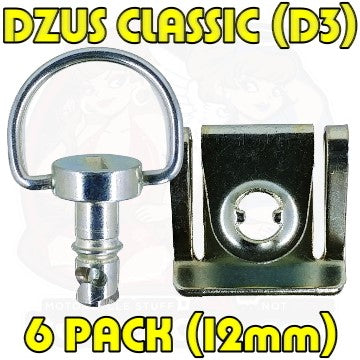

Name: 6pc: Fiberglass Bodywork, DZUS CLASSIC (D3), D-Ring, Clip-On, Silver, WL=12mm
Brand: Dzus
SKU: D3-D-SIL-C-12MM-6
Price: 37.0 USD
Availability: InStock

Dzus 12 mm D Ring Bolt Clip On Silver 6 Pack

$37.00 USD

Shipping calculated at checkout.

Quantity

In stock
Inventory on the way

DESCRIPTION FITMENT SHIPPING & RETURNS PART NUMBER(S) ADDITIONAL INFO

DESCRIPTION

Complete 6pc Dzus® Classic Kit for attaching fiberglass motorcycle bodywork together. 12mm Dzus® Classic bolts are the "Rule of Thumb" length for fiberglass bodywork. 12mm Dzus® Classic bolts grip up to 5.4mm total bodywork thickness

Kit Includes:
6 - 6mm D-Ring Panex D3 Fasteners	Length: 12mm Coating: Zinc Plate with Chromate
6 - 6mm Clip on Panex D3 Retainers	Coating: Zinc Plate with Chromate
12 - Retaining Washers.	Material: High density polyethylene Color: White
Dzus® Classic Style Panex Bolts (D3): 1st Generation Dzus® Panex Bolt that is thicker and heavier than current D8 Style Dzus® Panex Bolt 100% Compatible with newer D8 Mounting Hardware. Machined engagement head. Larger White retaining washers. Smaller Black D8 Style washers are not compatible with Dzus® Classic (D3) Bolts

Special Fitment Notes:

Armour Bodies Bodywork (Sold by Woodcraft CFM in USA) :

Reports that the bodywork lip is to short for the Dzus® Panex Clip On retainer to mount flat.
Some Armour Bodies mounting lips are only ~20mm (~0.75in) tall
Recommendation #1: Use A Rivet Mounting Hardware Kit - Link: All Rivet On Kits
Recommendation #2: Use Dzus® Pro Clip On Kit - Same clip that Armour Bodies/Woodcraft CFM uses - Link

"PIT-ECK" bodywork:

We have received information from a few customers, that "PIT-ECK" fiberglass bodywork, requires the longer OEM length Dzus® bolts (14mm).
Some bodywork thickness may be between 2.75mm and 3.25mm thick.
Please check your bodywork thickness if you have "PIT-ECK" or another off-brand bodywork - Please contact us if you have any questions
Link to : OEM Length Dzus® Bolts (14mm) Kits

Combine 4pcs and 6pcs kits to create custom kit sizes...
4pcs kits	6pcs kits	Total Number of Dzus®
1 - 4 pcs kit	1 - 6 pcs kit	10 Dzus® Pcs
2 - 4 pcs kit	1 - 6 pcs kit	14 Dzus® Pcs
1 - 4 pcs kit	2 - 6 pcs kit	16 Dzus® Pcs

Dzus® Bolts Specs & Drawing

Additional Dzus® Bolt Specs / Info

(L) Working Length: 12mm

Shaft Length : 15mm

Grip Range: 3.5mm to 5.4mm
- Maximum Grip with out washers
- Minimum Grip using 2 washers

Minimum bodywork Hole size: 7.2mm
- English: 9/32nd Inch

Dzus® Clip Specs & Drawing

Dzus® Clip Specs / Info

Max hole from edge: 12mm

Minimum flat space for clip: 25mm

Minimum clearance behind bodywork:12mm

Grip Range: 3.5mm to 5.4mm
- Maximum Grip with out washers
- Minimum Grip using 2 washers

Dzus® is a Registered Trademark of Southco Inc.
