| Complete 4pcs Kit for attaching OEM motorcycle bodywork together. 14mm Dzus® bolts are longer to fit plastic bodywork, or 3 panels of fiberglass bodywork together. Rivet Plates work in areas where a clip plate does do not fit. Rivet plates are wider than clip plates for mounting on tabs and/or bodywork |

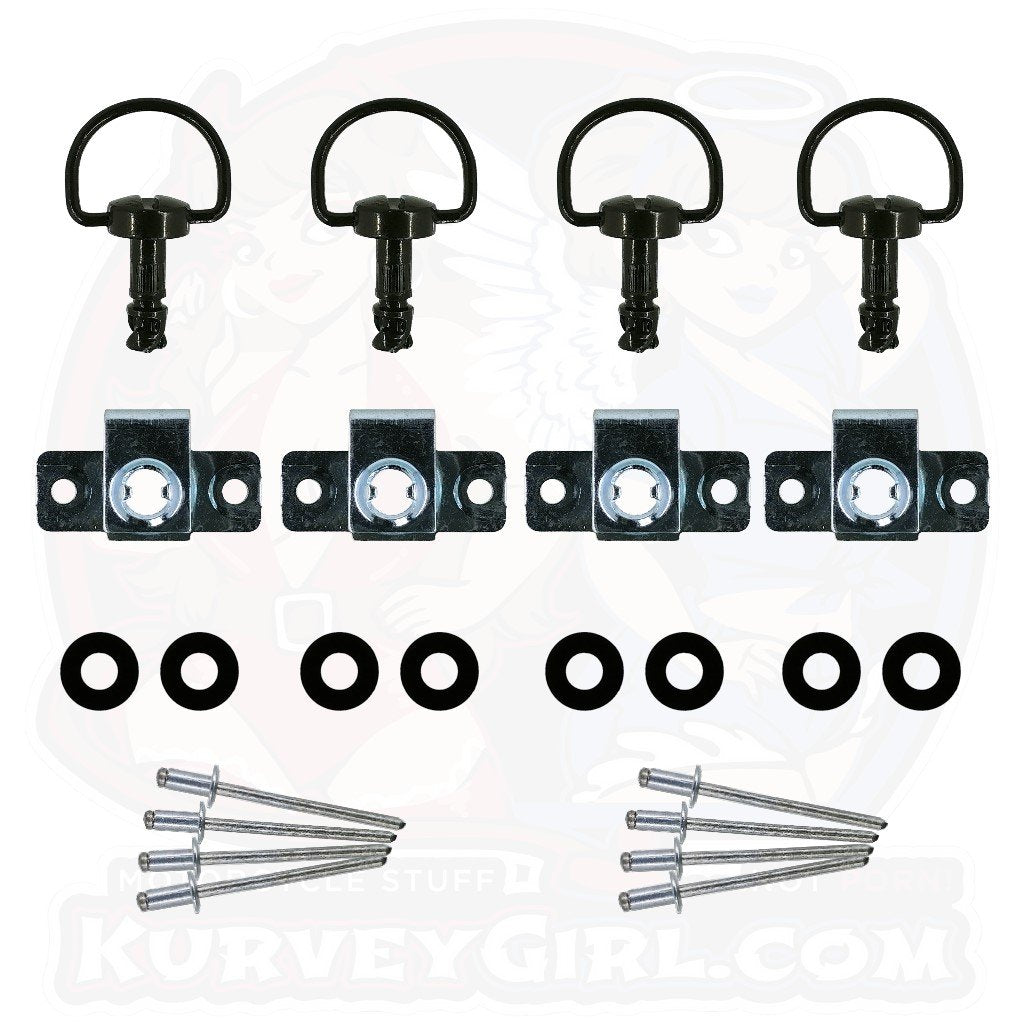

| Kit Includes: | |

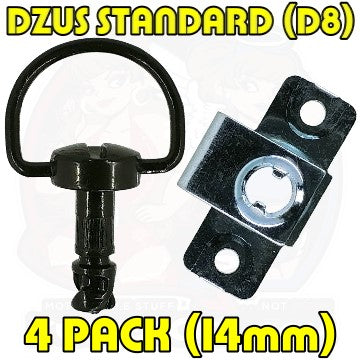

| 4 - 6mm D-Ring Panex D8 Fasteners | Length: 14mm Coating: Zinc Plate with BLACK Chromate |
| 4 - 6mm rivet on Panex D8 Retainers | Coating: Zinc Plate with Chromate |
| 10 - Pop Rivets | For attaching Rivet on Retainers 2 extra pop rivets just in case |
| 10 - Retaining Washers. | Material: High density polyethylene 2 extra washers for your tool box |
| Note: Street bikes OEM bodywork mounting tabs most likely will require some modification for most motorcycles. This is a "Do It Yourself" KIT and removal of OEM wellnuts and Spring nuts will be required. OEM Bodywork mounting tabs may require some trimming to mount Dzus® rivet plate to same location as the OEM Wellnuts and Spring Nuts. The use of a razor blade, rotary trim tool and drill bit will help remove plastic ribs for space around clip and enlarge the mounting hole to fit the 6mm Dzus® bolt. | |
|
NEW D8 Style Dzus® Panex Bolts:
|
|
  |
|
| Combine 4pcs and 6pcs kits to create custom kit sizes... | ||
| 4pcs kits | 6pcs kits | Total Number of Dzus® |
| 1 - 4 pcs kit | 1 - 6 pcs kit | 10 Dzus® Pcs |
| 2 - 4 pcs kit | 1 - 6 pcs kit | 14 Dzus® Pcs |
| 1 - 4 pcs kit | 2 - 6 pcs kit | 16 Dzus® Pcs |
| Dzus® Bolts Specs & Drawing | |
 |
Additional Dzus® Bolt Specs / Info
|
| Dzus® Clip Specs & Drawing | |
 |
Dzus® Rivet Plate Specs / Info
|
| Dzus® is a Registered Trademark of Southco Inc. |
