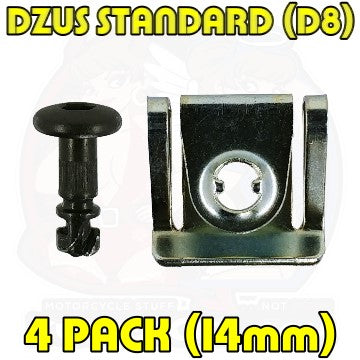

Dzus D8 14 mm Button Head Bolt Clip On Black 4 Pack
Dzus D8 14 mm Button Head Bolt Clip On 4 Pack Black

4pc: OEM Plastic Bodywork, DZUS (D8), Button Head, Clip-On, Black, WL=14mm

$18.67 USD Regular price
/
Shipping calculated at checkout.
DESCRIPTION FITMENT SHIPPING & RETURNS PART NUMBER(S) ADDITIONAL INFO
DESCRIPTION
Complete 4pcs Kit for attaching OEM motorcycle bodywork together.  14mm Dzus® bolts are longer to fit plastic bodywork, or 3 panels of fiberglass bodywork together.

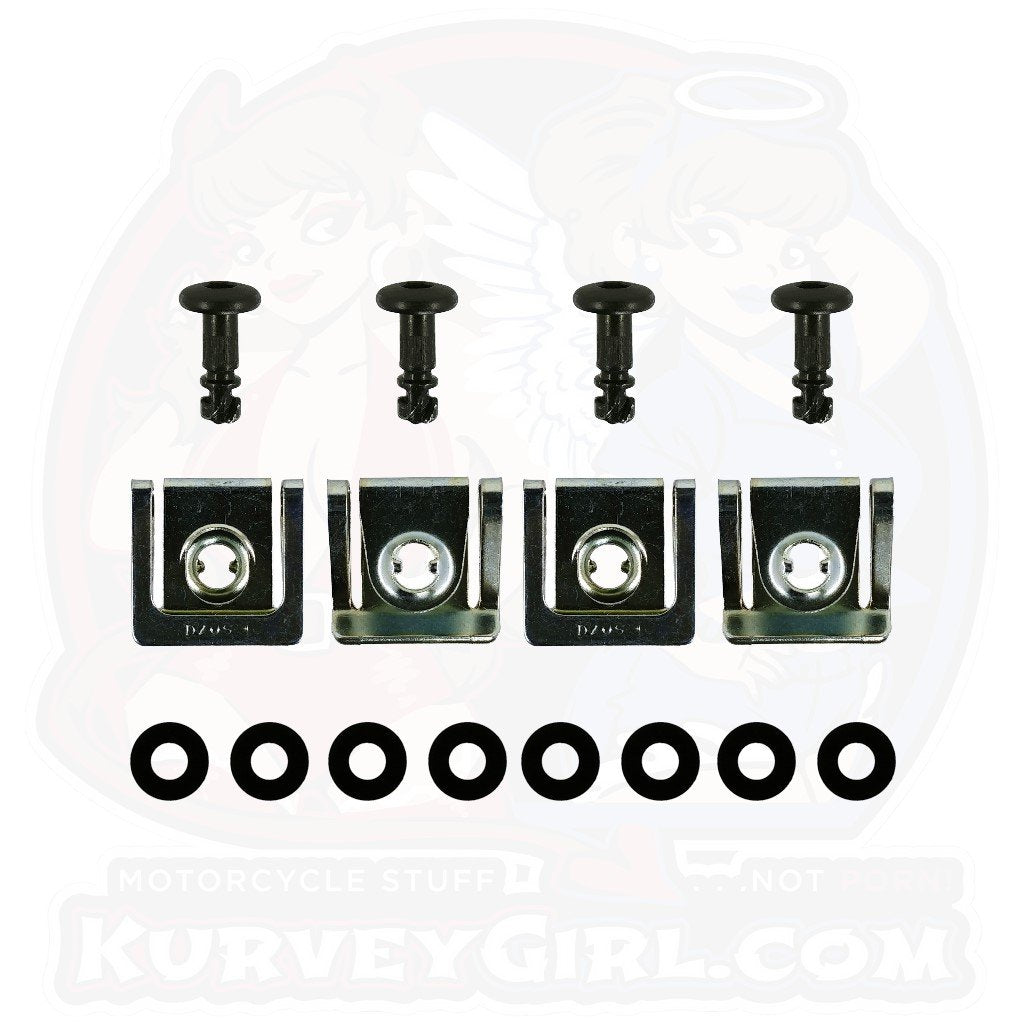

Kit Includes:
4 - 6mm Button Head Panex D8 Fasteners Length: 14mm
Coating: Zinc Plate with BLACK Chromate
4 - 6mm Clip on Panex D8 Retainers Coating: Zinc Plate with Chromate
10 - Retaining Washers. Material: High density polyethylene
2 extra washers for your tool box
Note: Street bikes OEM bodywork mounting tabs most likely will require some modification for most motorcycles.  This is a "Do It Yourself" KIT and removal of OEM wellnuts and Spring nuts will be required.  OEM Bodywork mounting tabs may require some trimming to mount Dzus® clip to same location as the OEM Wellnuts and Spring Nuts.  The use of a razor blade, rotary trim tool and drill bit will help remove plastic ribs for space around clip and enlarge the mounting hole to fit the 6mm Dzus® bolt.
NEW D8 Style Dzus® Panex Bolts:
  • New Generation Dzus® Panex Bolt that is lighter than original D3 Style Dzus® Panex Bolt
  • 100% Compatible with old D3 Mounting Hardware.
  • Thinner main bolt shaft with 6mm Engagement head.
  • New smaller Black retaining washers.
Dzus Panex D8 - 4 Pack - Button head - Clip On - Black - 14mm Working LengthDzus Panex D8 - Single Bolt Kit - Black - Button Head - Clip On - 14mm Working Length
Dzus Button Head - Installed on Race Bike Bodywork - Black
Combine 4pcs and 6pcs kits to create custom kit sizes...
4pcs kits 6pcs kits Total Number of Dzus®
1 - 4 pcs kit 1 - 6 pcs kit 10 Dzus® Pcs
2 - 4 pcs kit 1 - 6 pcs kit 14 Dzus® Pcs
1 - 4 pcs kit 2 - 6 pcs kit 16 Dzus® Pcs
Dzus® Button Head Bolts Specs & Drawing
Dzus Panex D8 Button Head Bolt Specs - Drawing
Additional Dzus® Bolt Specs / Info

  • (L) Working Length: 14mm
  • Shaft Length : 17mm
  • Grip Range: 5.5mm to 7.4mm
    • Maximum Grip with out washers
    • Minimum Grip using 2 washers
  • Minimum bodywork Hole size: 6.2mm
    • English: 1/4 Inch
Dzus® Clip Specs & Drawing
Dzus Panex D8 Clip Specs - Drawing
Dzus® Clip Specs / Info

  • Max hole from edge: 12mm
  • Minimum flat space for clip: 25mm
  • Minimum clearance behind bodywork:12mm
  • Grip Range: 3.5mm to 5.4mm
    • Maximum Grip with out washers
    • Minimum Grip using 2 washers
Dzus® is a Registered Trademark of Southco Inc.
