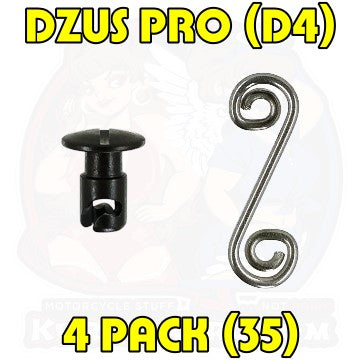

Dzus Pro D4 Slot Head S-Spring Rivet Black 35 4 Pack
Dzus Pro Slot Head S-Spring Rivet On 35 4 Pack Black

4pc: Fiberglass Bodywork, DZUS PRO (D4), Slot Head, S-Spring, Rivet-On, Black, (35)

$23.67 USD Regular price
/
Shipping calculated at checkout.
DESCRIPTION FITMENT SHIPPING & RETURNS PART NUMBER(S) ADDITIONAL INFO
DESCRIPTION
KurveyGirl.com - 4piece Silver Dzus Pro Slot Head kit - S-Spring Style
4 Piece - BLACK FINISH DZUS PRO SLOT HEAD KIT
Dzus
Pro - Slot Head - Black - Detail - D4
DZUS® Professional Grade Fasteners: Same style fasteners found on top motorcycle road racing bikes.  Spring Retention system for maximum grip.
  • This kit is for the professional racer who takes their bodywork off several times a race weekend!!!!
  • Note: This kit is for the person who has installed Motorcycle Fiberglass Bodywork before!!!
  • Slot Head Dzus® bolts duplicate the "Factory Racer" look that you see on Top Factory MotoGP and MotoAmerica team race bikes.

Kit Includes:
4 - 6mm Slot Head Dzus® Fasteners (Stud Bolt) Coating: Black Oxide
4 - S-Spring Rivet on Retainers Coating: Zinc Trivalent Clear with Trivalent Chromate Clear.
Finish Specifications: ASTM-B-633, Type III, SC 2
4 - Plastic Grommets (to hold the Stud Bolt on bodywork) Material: High density polyethylene
10 - 3/32nd Genuine Pop Rivet brand rivets for attaching 2 extra rivets just in case

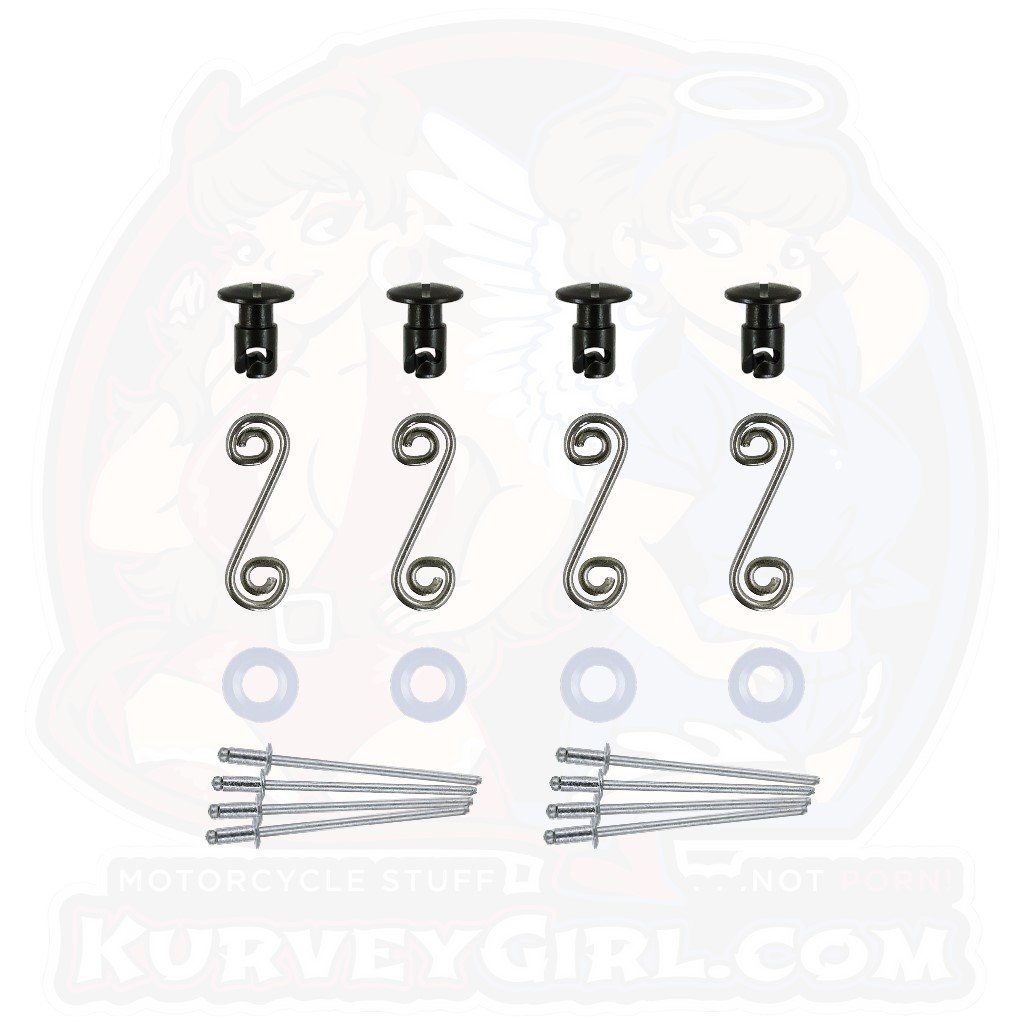

Dzus Pro - Black Slot Head - 4 Pack - Rivet On -
Main Photo - D4


Dzus Pro - Slot Head - Black - Rivet On - Close
Up - D4


Dzus® Bolts Specs & Drawing
Dzus Pro - Slot Head Bolt - Drawing - D4
Additional Dzus® Pro Slot Head
Bolt Specs / Info


  • (L) Dimension:  8.9mm (.350in)
  • (U) Under Cut Dimension:  3.8mm (.150in)
  • Grip Range: 3.5mm to 5.0mm
    • Maximum Grip with out washer
    • Minimum Grip using washer
  • Bodywork Hole size: 6.5mm (0.250in)
Dzus® S-Spring Specs & Drawing
Dzus
Pro - Rivet-On S-Spring Drawing
Dzus® Pro S-Spring Specs / Info

  • Minimum flat space for S-Spring: 11mm
  • Minimum clearance behind bodywork: 11mm
  • (H) Dimension:  5.0mm (.200in)
Dzus® S-Spring Mounting Diagram
Dzus
Pro - Rivet-On S-Spring - Install Diagram
Dzus® Pro - Rivet On
Installation Diagram
  • Stud Bolt
  • Outer Panel
  • Washer (Retainer)
  • Inner Panel (Frame)
  • Receptacle (S-Spring)
  • Pop-Rivets

Dzus® is a Registered Trademark of Southco Inc.
