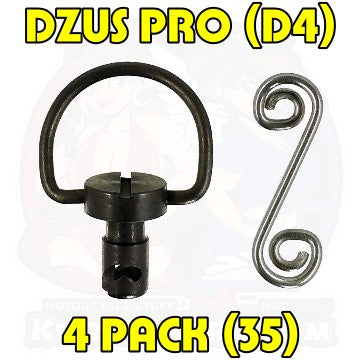

Dzus Pro D4 D Ring S-Spring Rivet Black 35 4 Pack
Dzus Pro D Ring S-Spring Rivet On 35 4 Pack Black

4pc: Fiberglass Bodywork, DZUS PRO (D4), D-Ring, S-Spring, Rivet-On, Black, (35)

$23.67 USD Regular price
/
Shipping calculated at checkout.
DESCRIPTION FITMENT SHIPPING & RETURNS PART NUMBER(S) ADDITIONAL INFO
DESCRIPTION

4 Piece - BLACK FINISH DZUS PRO KIT
Dzus Pro Bolt - Black Finish -35 Dzus® Professional Grade Fasteners: Same style fasteners found on top motorcycle road racing bikes.  Spring Retention system for maximum grip.
  • This kit is for the professional racer who takes their bodywork off several times a race weekend!!!!
  • Finish: Black Oxide
  • Note: This kit includes Clip-On Fasteners, providing easier installation!!!

Kit Includes:
4 - 6mm D-Ring Dzus® Fasteners (Stud Bolt) Coating: Black Oxide
4 - S-Spring Rivet on Retainers Coating: Zinc Trivalent Clear with Trivalent Chromate Clear.
Finish Specifications: ASTM-B-633, Type III, SC 2
4 - Plastic Grommets (to hold the Stud Bolt on bodywork) Material: High density polyethylene
8 - 3/32nd Pop Rivets for attaching to Bodywork Genuine Pop Rivet brand fasteners

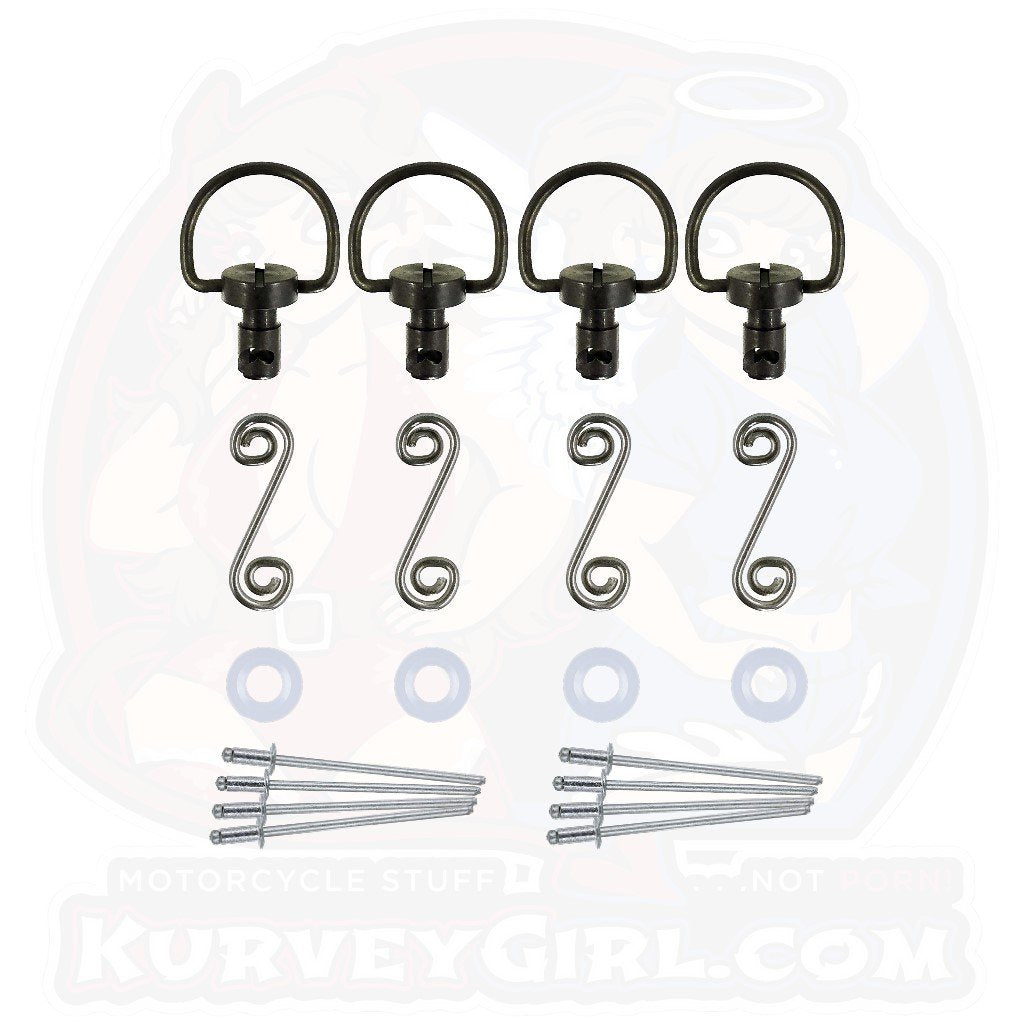

 Dzus Pro - Black - Rivet-On - 6 Pack Kit - Main Picture

Dzus® Bolts Specs & Drawing
Dzus Pro - Bolt - Drawing
Additional Dzus® Pro Bolt Specs / Info

  • (L) Dimension:  8.9mm (.350in)
  • (U) Under Cut Dimension:  3.8mm (.150in)
  • Grip Range: 3.5mm to 5.0mm
    • Maximum Grip with out washer
    • Minimum Grip using washer
  • Bodywork Hole size: 6.5mm (0.250in)

Dzus® S-Spring Specs & Drawing
Dzus Pro - Rivet-On S-Spring Drawing
Dzus® Pro S-Spring Specs / Info

  • Minimum flat space for S-Spring: 11mm
  • Minimum clearance behind bodywork: 11mm
  • (H) Dimension:  5.0mm (.200in)
Dzus® S-Spring Mounting Diagram
Dzus Pro - Rivet-On S-Spring - Install Diagram
Dzus® Pro - Rivet On
Installation Diagram
  • Stud Bolt
  • Outer Panel
  • Washer (Retainer)
  • Inner Panel (Frame)
  • Receptacle (S-Spring)
  • Pop-Rivets


Dzus® is a Registered Trademark of Southco Inc.
