Dzus Pro D4 Button Head Bolt S-Spring Clip On Silver 45 4 Pack
Dzus Pro Button Head Bolt S-Spring Clip On 45 4 Pack Silver

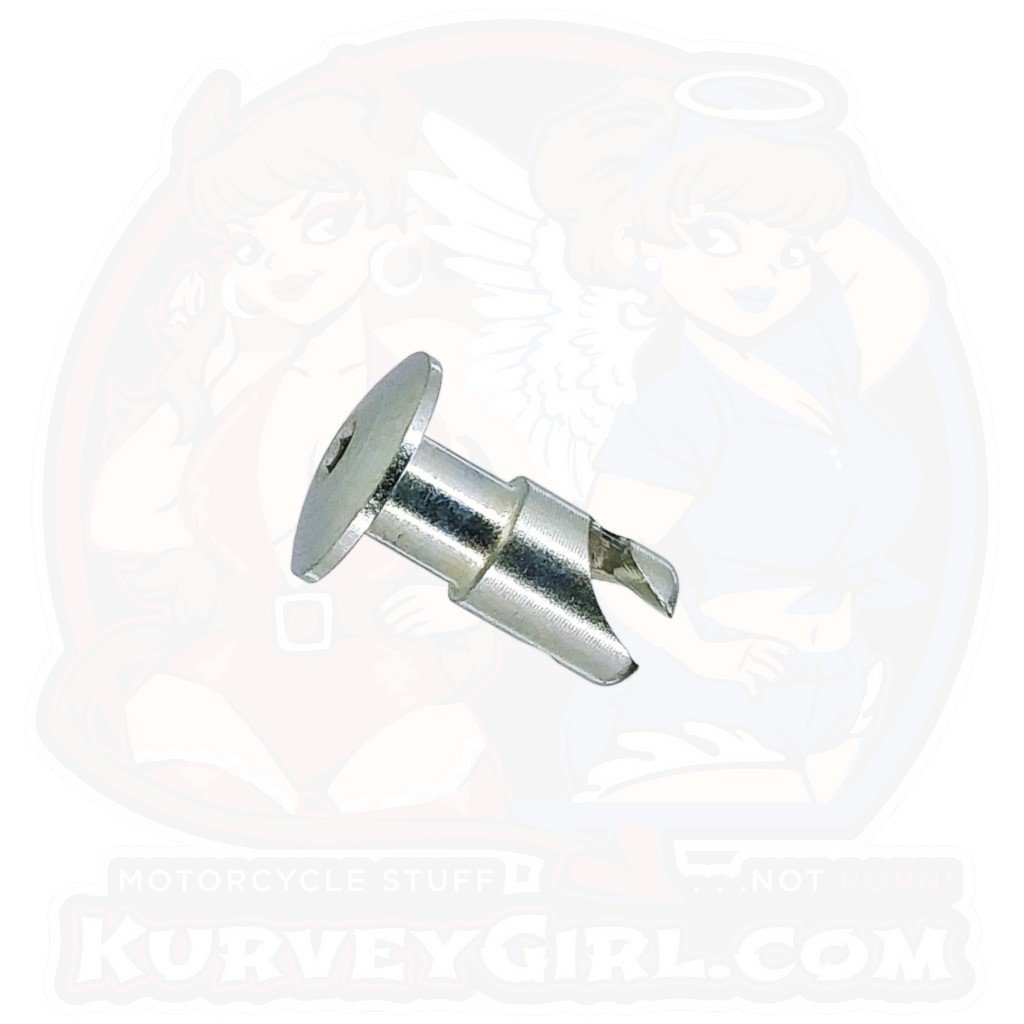

Dzus Pro Button Head Bolt 45 Spare Part Silver
Dzus Pro Button Head Bolt 45 Spare Part Silver Iso

4pc: Fiberglass Bodywork, DZUS PRO (D4), Button Head, S-Spring, Clip-On, Silver, (45)

$26.34 USD Regular price
/
Shipping calculated at checkout.
DESCRIPTION FITMENT SHIPPING & RETURNS PART NUMBER(S) ADDITIONAL INFO
DESCRIPTION
DZUS® Professional Grade Fasteners: Same style fasteners found on top motorcycle road racing bikes.  Spring Retention system for maximum grip.
  • This kit is for the professional racer who takes their bodywork off several times a race weekend!!!!
  • Note: This kit is for the person who has installed Motorcycle Fiberglass Bodywork before!!!
  • Note: Button Head Dzus® bolts require a 3/32nd English Allen Key to be installed.

Kit Includes:
4 - 6mm Button Head Dzus® Fasteners (Stud Bolt) Coating: Zinc Trivalent Clear with Trivalent Chromate Clear.
Finish Specifications: ASTM-B-633, Type III, SC 2
4 - S-Spring Clip-On Retainers Coating: Zinc Trivalent Clear with Trivalent Chromate Clear.
Finish Specifications: ASTM-B-633, Type III, SC 2
4 - Plastic Grommets (to hold the Stud Bolt on bodywork) Material: High density polyethylene

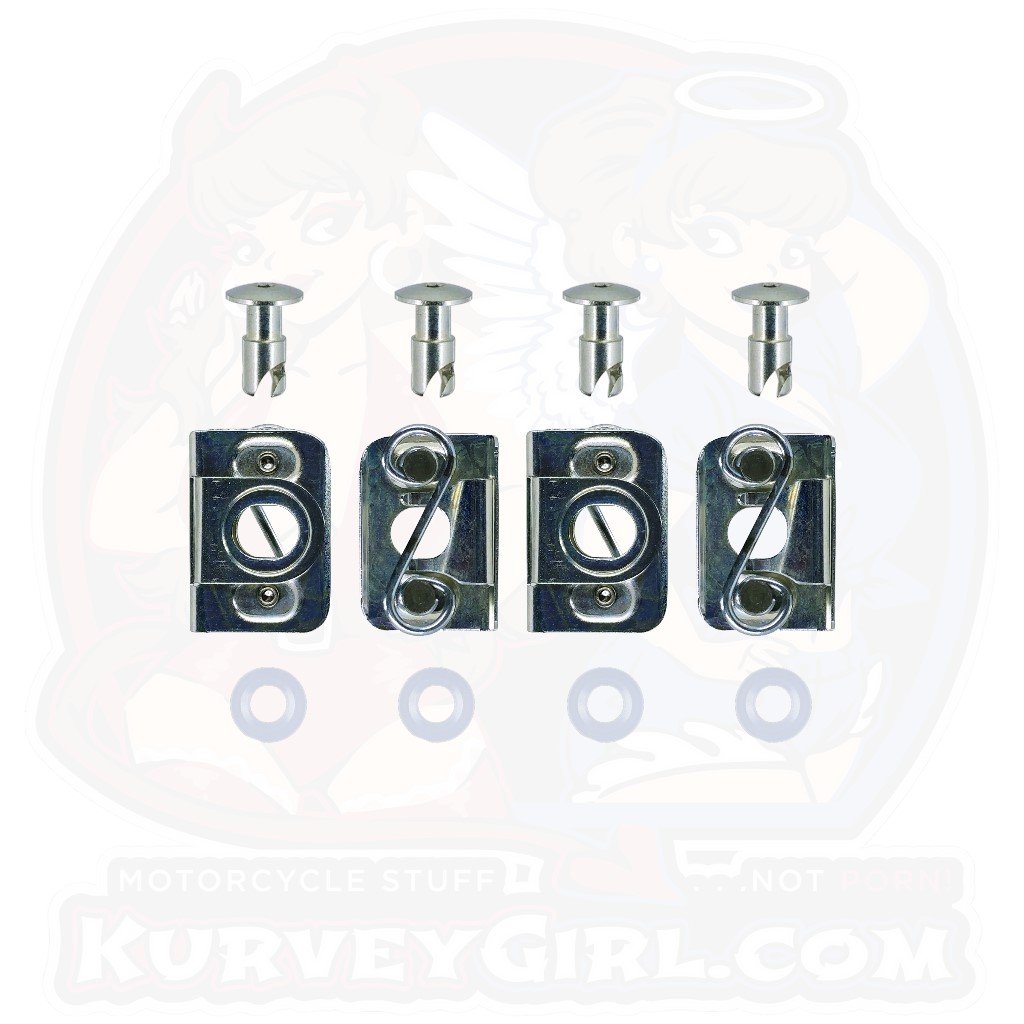

Dzus Pro - Button Head - 4 Pack - Clip On - Main Photo

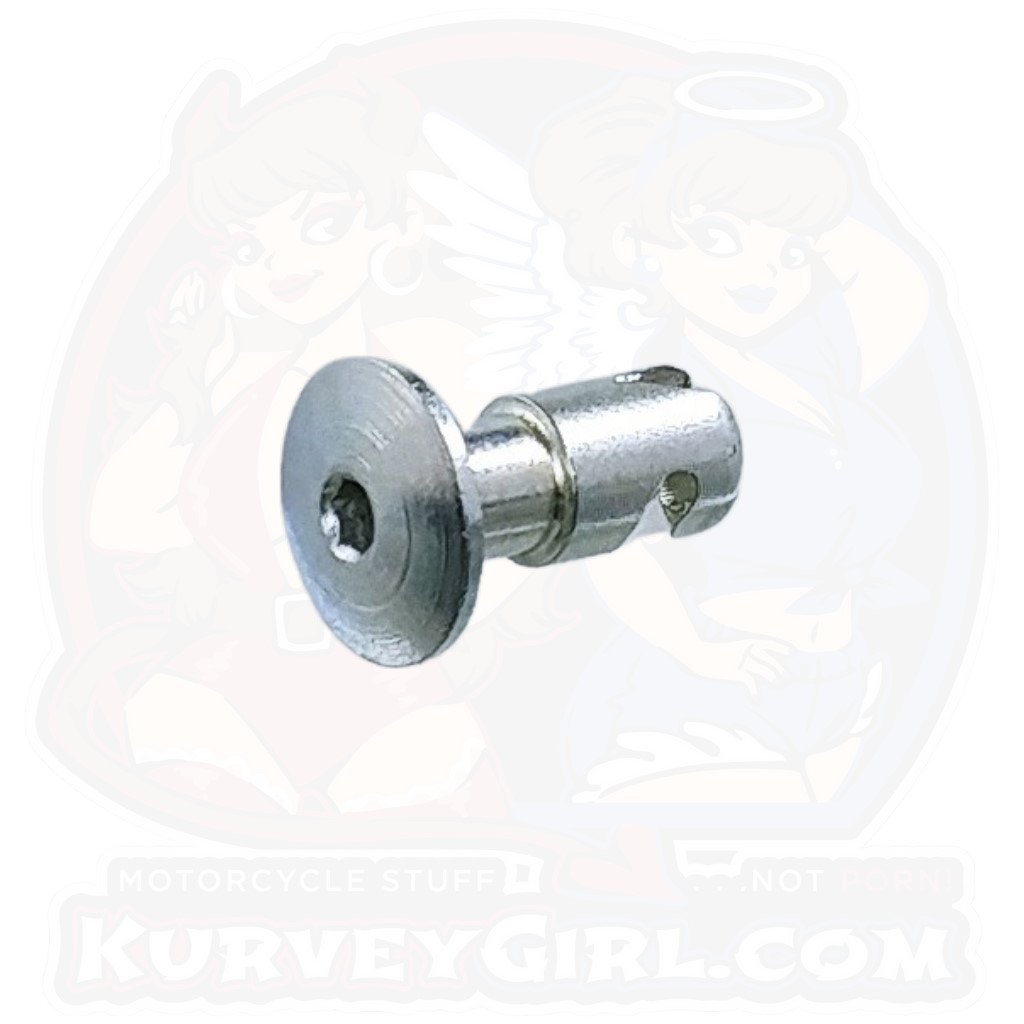

Dzus Pro - Button Head - Clip On - Close Up
Note: Button Head Dzus® bolts require a 3/32nd English Allen Key to be installed/removed

Dzus® Bolts Specs & Drawing
Dzus Pro - Button Head Bolt - Drawing
Additional Dzus® Pro Button Head
Bolt Specs / Info


  • (L) Dimension:  11.43mm (.450in)
  • (U) Under Cut Dimension:  5.72mm (.225in)
  • Grip Range: 4.0mm to 5.6mm
    • Maximum Grip with out washer
    • Minimum Grip using washer
  • Bodywork Hole size: 6.5mm (0.250in)
Dzus® Clip Specs & Drawing
Dzus Pro - Clip-On Plate Drawing
Dzus® Pro Clip-On Specs / Info

  • Recommended hole center from edge: 10.7mm (.420in)
  • Minimum flat space for clip: 20mm
  • Minimum clearance behind bodywork:13mm
  • (H) Dimension:  7.1mm (.280in)
Dzus® Clip Mounting Diagrams
Dzus Pro - Clip-On S-Spring - Install Diagram
Dzus® Pro - Clip On
Mounting Dimensions
  • Suggested Inner Panel (Frame) Thickness:
    • 0.91mm ~ 3.25mm (0.036in - 0.128in)
  • Minimum Flat Panel Thickness: ~20mm (0.75 in)
  • Suggested Mounting Hole Diameter: 12mm (0.475 in)
  • Mounted S-Spring to the inside of the body
Dzus Pro - Clip-On S-Spring - Install Diagram 2

Dzus® is a Registered Trademark of Southco Inc.
