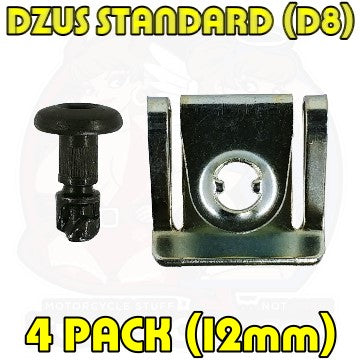

Dzus D8 12 mm Button Head Bolt Clip On Black 4 Pack
Dzus D8 12 mm Button Head Bolt Clip On 4 Pack Black

4pc: Fiberglass Bodywork, DZUS (D8), Button Head, Clip-On, Black, WL=12mm

$17.33 USD Regular price
/
Shipping calculated at checkout.
DESCRIPTION FITMENT SHIPPING & RETURNS PART NUMBER(S) ADDITIONAL INFO
DESCRIPTION
Complete 4pc Kit for attaching fiberglass motorcycle bodywork together.  12mm Dzus® bolts are the "Rule of Thumb" length for fiberglass bodywork.  12mm Dzus® bolts grip up to 5.4mm total bodywork thickness
These button head bolts provide a more "OEM" look and require an Allen Tool to remove the bolts from the bodywork.  For those people who have bought aftermarket fiberglass bodywork for the STREET and want a cleaner "OEM" Look to their fasteners.

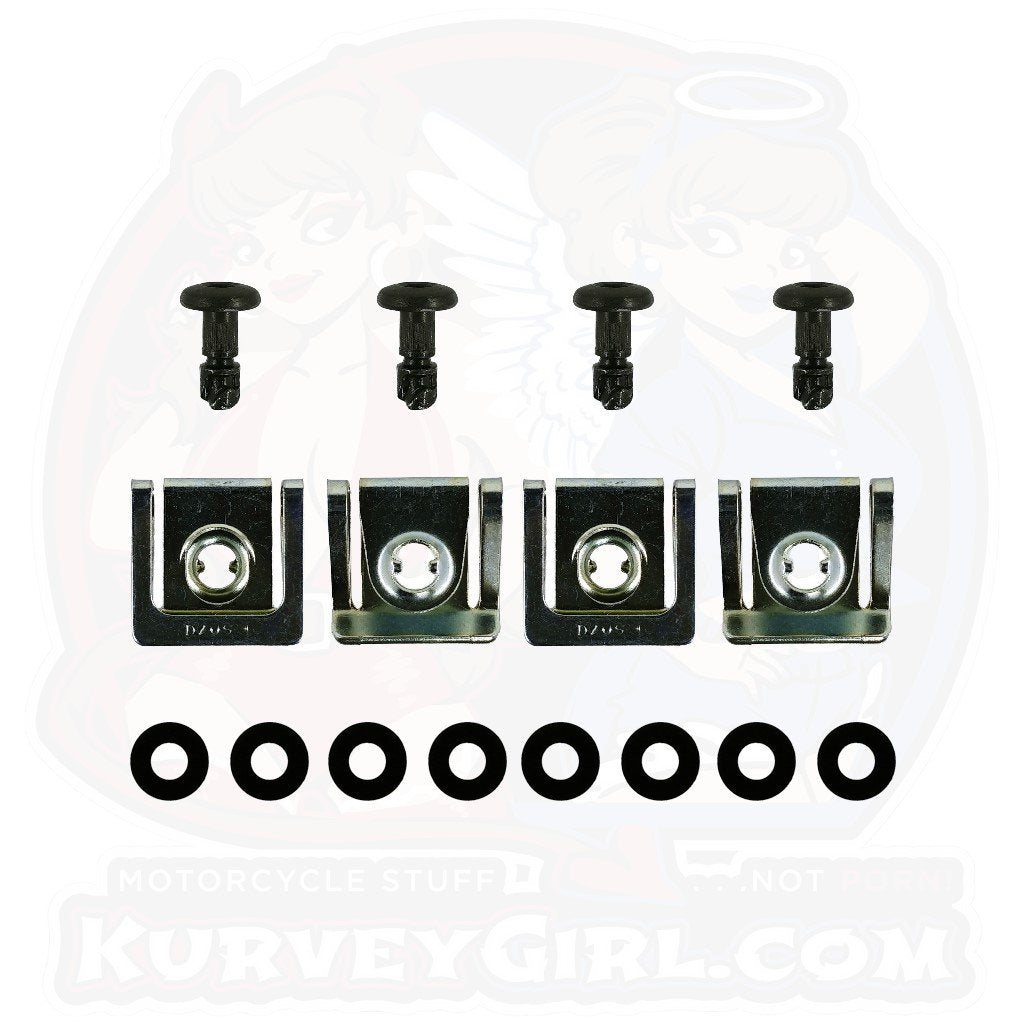

Kit Includes:
4 - 6mm Button Head Panex D8 Fasteners Length: 12mm
Coating: Zinc Plate with BLACK Chromate
4 - 6mm Clip on Panex D8 Retainers Coating: Zinc Plate with Chromate
10 - Retaining Washers. Material: High density polyethylene
2 extra washers for your tool box
NEW D8 Style Dzus® Panex Bolts:
  • New Generation Dzus® Panex Bolt that is lighter than original D3 Style Dzus® Panex Bolt
  • 100% Compatible with old D3 Mounting Hardware.
  • Thinner main bolt shaft with 6mm Engagement head.
  • New smaller Black retaining washers.
Dzus Panex D8 - 4 Pack - Clip On - Button Head - Black - 12mm Working Length  Dzus Panex D8 - Single Bolt Kit - Black - Button Head - Clip On - 12mm Working Length
Dzus Button Head - Installed on Race Bike Bodywork - Black
Combine 4pcs and 6pcs kits to create custom kit sizes...
4pcs kits 6pcs kits Total Number of Dzus®
1 - 4 pcs kit 1 - 6 pcs kit 10 Dzus® Pcs
2 - 4 pcs kit 1 - 6 pcs kit 14 Dzus® Pcs
1 - 4 pcs kit 2 - 6 pcs kit 16 Dzus® Pcs
Dzus® Bolts Specs & Drawing
Dzus Panex D8 Button Head Bolt Specs - Drawing
Additional Dzus® Bolt Specs / Info

  • (L) Working Length: 12mm
  • Shaft Length : 15mm
  • Grip Range: 3.5mm to 5.4mm
    • Maximum Grip with out washers
    • Minimum Grip using 2 washers
  • Minimum bodywork Hole size: 6.2mm
    • English: 1/4 Inch
Dzus® Clip Specs & Drawing
Dzus Panex D8 Clip Specs - Drawing
Dzus® Clip Specs / Info

  • Max hole from edge: 12mm
  • Minimum flat space for clip: 25mm
  • Minimum clearance behind bodywork:12mm
  • Grip Range: 3.5mm to 5.4mm
    • Maximum Grip with out washers
    • Minimum Grip using 2 washers
Dzus® is a Registered Trademark of Southco Inc.
