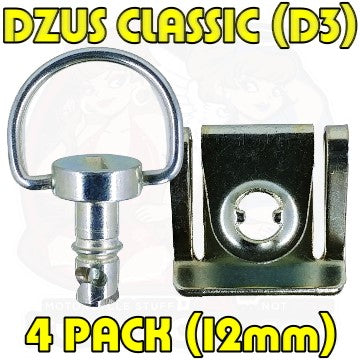

4pc: Fiberglass Bodywork, DZUS CLASSIC (D3), D-Ring, Clip-On, Silver, WL=12mm
4pc: Fiberglass Bodywork, DZUS CLASSIC (D3), D-Ring, Clip-On, Silver, WL=12mm
  • Load image into Gallery viewer, 4pc: Fiberglass Bodywork, DZUS CLASSIC (D3), D-Ring, Clip-On, Silver, WL=12mm
  • Load image into Gallery viewer, 4pc: Fiberglass Bodywork, DZUS CLASSIC (D3), D-Ring, Clip-On, Silver, WL=12mm

4pc: Fiberglass Bodywork, DZUS CLASSIC (D3), D-Ring, Clip-On, Silver, WL=12mm

Regular price
$24.67 USD
Sale price
$24.67 USD
Regular price
Sold out
Unit price
per
Shipping calculated at checkout.

DESCRIPTION FITMENT SHIPPING & RETURNS PART NUMBER(S) ADDITIONAL INFO
DESCRIPTION
Complete 4pc Dzus® Classic Kit for attaching fiberglass motorcycle bodywork together.  12mm Dzus® Classic bolts are the "Rule of Thumb" length for fiberglass bodywork.  12mm Dzus® Classic bolts grip up to 5.4mm total bodywork thickness
Kit Includes:
4 - 6mm D-Ring Panex D3 Fasteners Length: 12mm
Coating: Zinc Plate with Chromate
4 - 6mm Clip on Panex D3 Retainers Coating: Zinc Plate with Chromate
8 - Retaining Washers. Material: High density polyethylene
Color: White
Dzus® Classic Style Panex Bolts (D3):
  • 1st Generation Dzus® Panex Bolt that is thicker and heavier than current D8 Style Dzus® Panex Bolt
  • 100% Compatible with newer D8 Mounting Hardware.
  • Machined engagement head.
  • Larger White retaining washers.
    • Smaller Black D8 Style washers are not compatible with Dzus® Classic (D3) Bolts
Special Fitment Notes:
Armour Bodies Bodywork (Sold by Woodcraft CFM in USA) :
"PIT-ECK" bodywork:
Combine 4pcs and 6pcs kits to create custom kit sizes...
4pcs kits 6pcs kits Total Number of Dzus®
1 - 4 pcs kit 1 - 6 pcs kit 10 Dzus® Pcs
2 - 4 pcs kit 1 - 6 pcs kit 14 Dzus® Pcs
1 - 4 pcs kit 2 - 6 pcs kit 16 Dzus® Pcs
Dzus® Bolts Specs & Drawing
Additional Dzus® Bolt Specs / Info

  • (L) Working Length: 12mm
  • Shaft Length : 15mm
  • Grip Range: 3.5mm to 5.4mm
    • Maximum Grip with out washers
    • Minimum Grip using 2 washers
  • Minimum bodywork Hole size: 7.2mm
    • English: 9/32nd Inch
Dzus® Clip Specs & Drawing
Dzus® Clip Specs / Info

  • Max hole from edge: 12mm
  • Minimum flat space for clip: 25mm
  • Minimum clearance behind bodywork:12mm
  • Grip Range: 3.5mm to 5.4mm
    • Maximum Grip with out washers
    • Minimum Grip using 2 washers
Dzus® is a Registered Trademark of Southco Inc.
