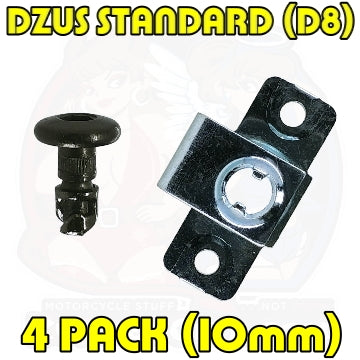

4pc: Carbon Fiber Bodywork, DZUS (D8), Button Head, Rivet-On, Black, WL=10mm
4pc: Carbon Fiber Bodywork, DZUS (D8), Button Head, Rivet-On, Black, WL=10mm
  • Load image into Gallery viewer, 4pc: Carbon Fiber Bodywork, DZUS (D8), Button Head, Rivet-On, Black, WL=10mm
  • Load image into Gallery viewer, 4pc: Carbon Fiber Bodywork, DZUS (D8), Button Head, Rivet-On, Black, WL=10mm

4pc: Carbon Fiber Bodywork, DZUS (D8), Button Head, Rivet-On, Black, WL=10mm

Regular price
$17.33 USD
Sale price
$17.33 USD
Regular price
Sold out
Unit price
per
Shipping calculated at checkout.

FITMENT WARNING: Some Carbon Fiber motorcycle bodywork is not true Carbon Fiber, but a Carbon Fiber laid over fiberglass bodywork.   These bolts are design to work with Pro Grade Carbon Fiber bodywork that has a panel thickness of 1.25mm or thinner!!!
DESCRIPTION FITMENT SHIPPING & RETURNS PART NUMBER(S) ADDITIONAL INFO
DESCRIPTION
Complete 4pc Kit for attaching Pro Grade carbon fiber motorcycle bodywork together.  10mm Dzus® bolts are the "Rule of Thumb" length for true carbon fiber bodywork.  10mm Dzus® bolts grip up to 3.4mm total bodywork thickness.
FITMENT WARNING: Some Carbon Fiber motorcycle bodywork is not true Carbon Fiber, but a Carbon Fiber laid over fiberglass bodywork.   These bolts are design to work with Pro Grade Carbon Fiber bodywork that has a panel thickness of 1.25mm or thinner!!!
These button head bolts provide a more "OEM" look and require an Allen Tool to remove the bolts from the bodywork.

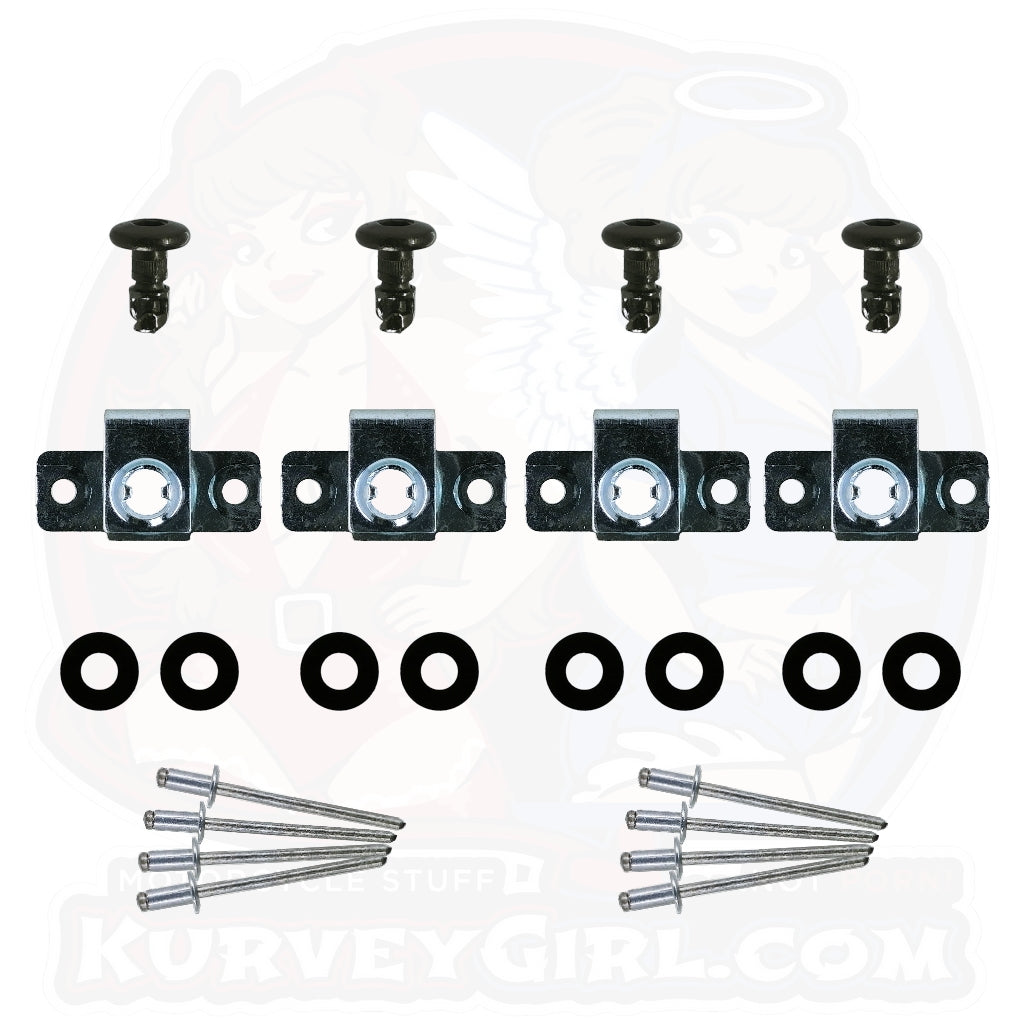

Kit Includes:
4 - 6mm Button Head Panex D8 Fasteners Length: 10mm
Coating: Zinc Plate with BLACK Chromate
4 - 6mm rivet on Panex D8 Retainers Coating: Zinc Plate with Chromate
10 - Pop Rivets For attaching Rivet on Retainers
2 extra pop rivets just in case
10 - Retaining Washers. Material: High density polyethylene
2 extra washers for your tool box
NEW D8 Style Dzus® Panex Bolts:
  • New Generation Dzus® Panex Bolt that is lighter than original D3 Style Dzus® Panex Bolt
  • 100% Compatible with old D3 Mounting Hardware.
  • Thinner main bolt shaft with 6mm Engagement head.
  • New smaller Black retaining washers.
Dzus Button
Head - Installed on Race Bike Bodywork - Black
Combine 4pcs and 6pcs kits to create custom kit sizes...
4pcs kits 6pcs kits Total Number of Dzus®
1 - 4 pcs kit 1 - 6 pcs kit 10 Dzus® Pcs
2 - 4 pcs kit 1 - 6 pcs kit 14 Dzus® Pcs
1 - 4 pcs kit 2 - 6 pcs kit 16 Dzus® Pcs
Dzus® Bolts Specs & Drawing
Dzus Panex D8 Button Head Bolt Specs - Drawing
Additional Dzus® Bolt Specs / Info

  • (L) Working Length: 10mm
  • Shaft Length : 13mm
  • Grip Range: 1.5mm to 3.4mm
    • Maximum Grip without washers
    • Minimum Grip using 2 washers
  • Minimum bodywork Hole size: 6.2mm
    • English: 1/4 Inch
Dzus® Clip Specs & Drawing
Dzus Panex D8 Rivet Plate Specs - Drawing
Dzus® Rivet Plate Specs / Info

  • Minimum flat space for rivet plate mounting: 33mm
  • Minimum clearance behind bodywork: 9mm
  • Grip Range: 1.5mm to 3.4mm
    • Maximum Grip with out washers
    • Minimum Grip using 2 washers
Dzus® is a Registered Trademark of Southco Inc.
FITMENT
Complete 4pc Kit for attaching Pro Grade carbon fiber motorcycle bodywork together.  10mm Dzus® bolts are the "Rule of Thumb" length for true carbon fiber bodywork.  10mm Dzus® bolts grip up to 3.4mm total bodywork thickness.
FITMENT WARNING: Some Carbon Fiber motorcycle bodywork is not true Carbon Fiber, but a Carbon Fiber laid over fiberglass bodywork.   These bolts are design to work with Pro Grade Carbon Fiber bodywork that has a panel thickness of 1.25mm or thinner!!!



Dzus® Bolts Specs & Drawing
Dzus Panex D8 Button Head Bolt Specs - Drawing
Additional Dzus® Bolt Specs / Info

  • (L) Working Length: 10mm
  • Shaft Length : 13mm
  • Grip Range: 1.5mm to 3.4mm
    • Maximum Grip without washers
    • Minimum Grip using 2 washers
  • Minimum bodywork Hole size: 6.2mm
    • English: 1/4 Inch



Dzus® Clip Specs & Drawing
Dzus Panex D8 Rivet Plate Specs - Drawing
Dzus® Rivet Plate Specs / Info

  • Minimum flat space for rivet plate mounting: 33mm
  • Minimum clearance behind bodywork: 9mm
  • Grip Range: 1.5mm to 3.4mm
    • Maximum Grip with out washers
    • Minimum Grip using 2 washers
Dzus® is a Registered Trademark of Southco Inc.
