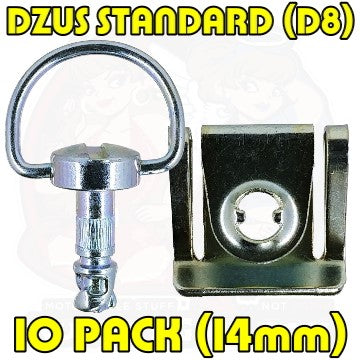

10pc: OEM Plastic Bodywork, DZUS (D8), D-Ring, Clip-On, Silver, WL=14mm
10pc: OEM Plastic Bodywork, DZUS (D8), D-Ring, Clip-On, Silver, WL=14mm
  • Load image into Gallery viewer, 10pc: OEM Plastic Bodywork, DZUS (D8), D-Ring, Clip-On, Silver, WL=14mm
  • Load image into Gallery viewer, 10pc: OEM Plastic Bodywork, DZUS (D8), D-Ring, Clip-On, Silver, WL=14mm

10pc: OEM Plastic Bodywork, DZUS (D8), D-Ring, Clip-On, Silver, WL=14mm

Regular price
$41.67 USD
Sale price
$41.67 USD
Regular price
Sold out
Unit price
per
Shipping calculated at checkout.

DESCRIPTION FITMENT SHIPPING & RETURNS PART NUMBER(S) ADDITIONAL INFO
DESCRIPTION
Complete 10pc Kit for attaching OEM motorcycle bodywork together.  14mm Dzus® bolts are longer to fit plastic bodywork, or 3 panels of fiberglass bodywork together.

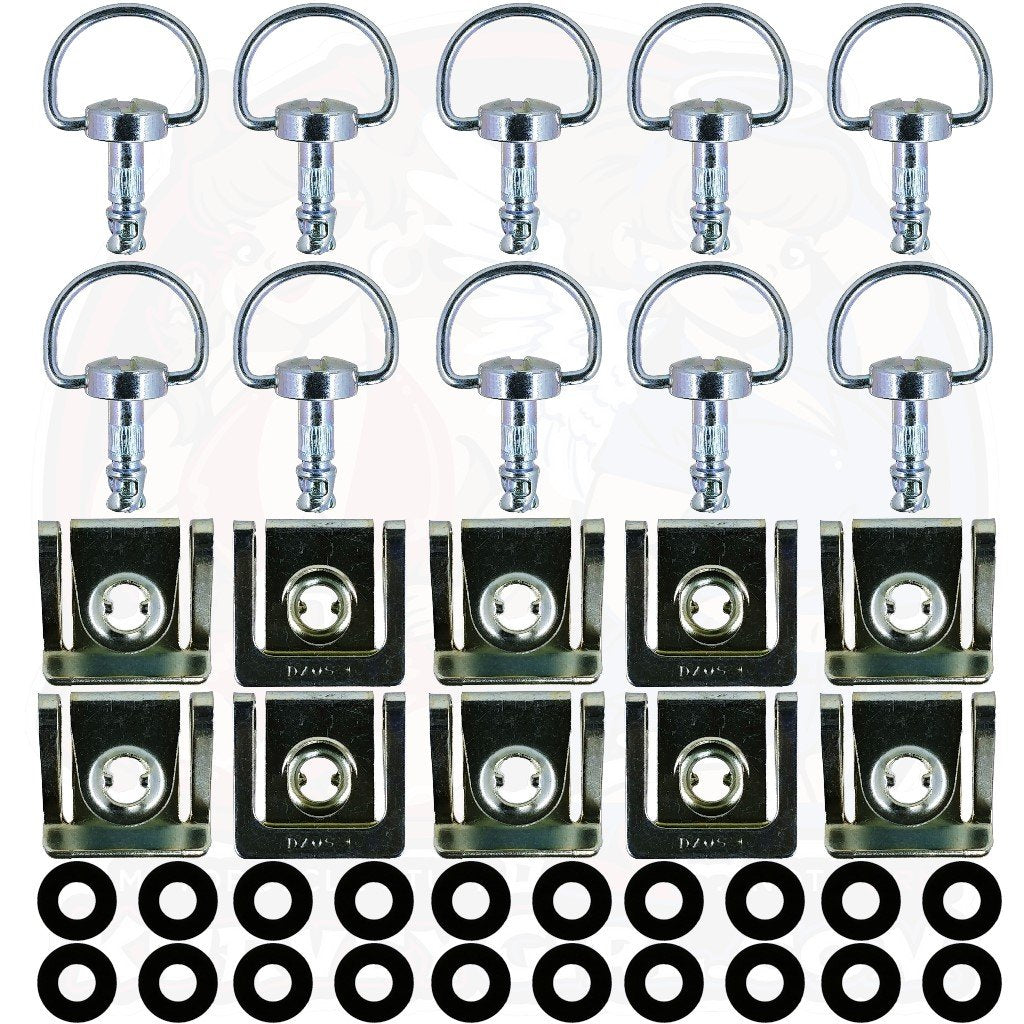

Kit Includes:
10 - 6mm D-Ring Panex D8 Fasteners Length: 14mm
Coating: Zinc Plate with Chromate
10 - 6mm Clip on Panex D8 Retainers Coating: Zinc Plate with Chromate
22 - Retaining Washers. Material: High density polyethylene
2 extra washers for your tool box
Note: Street bikes OEM bodywork mounting tabs most likely will require some modification for most motorcycles.  This is a "Do It Yourself" KIT and removal of OEM wellnuts and Spring nuts will be required.  OEM Bodywork mounting tabs may require some trimming to mount Dzus® clip to same location as the OEM Wellnuts and Spring Nuts.  The use of a razor blade, rotary trim tool and drill bit will help remove plastic ribs for space around clip and enlarge the mounting hole to fit the 6mm Dzus® bolt.
NEW D8 Style Dzus® Panex Bolts:
  • New Generation Dzus® Panex Bolt that is lighter than original D3 Style Dzus® Panex Bolt
  • 100% Compatable with old D3 Mounting Hardware.
  • Thinner main bolt shaft with 6mm Engagement head.
  • New smaller Black retaining washers.
Dzus Panex D8 - 10 Pack - Clip On - Silver - 14mm Working LengthDzus Panex D8 - Single Bolt Kit - Silver - Clip On - 14mm Working Length
Combine 4pcs, 6pcs and 10pcs kits to create custom kit sizes...
4pcs kits 6pcs kits 10pcs kits Total Number of Dzus
1 - 4 pcs kit 0 - 6 pcs kit 1 - 10 pcs kit 14 Dzus® Pcs
3 - 4 pcs kit 1 - 6 pcs kit 0 - 10 pcs kit 18 Dzus® Pcs
2 - 4 pcs kit 1 - 6 pcs kit 1 - 10 pcs kit 24 Dzus® Pcs
Dzus® Bolts Specs & Drawing
Dzus Panex D8 Bolt Specs - Drawing
Additional Dzus® Bolt Specs / Info

  • (L) Working Length: 14mm
  • Shaft Length : 17mm
  • Grip Range: 5.5mm to 7.4mm
    • Maximum Grip with out washers
    • Minimum Grip using 2 washers
  • Minimum bodywork Hole size: 6.2mm
    • English: 1/4 Inch
Dzus® Clip Specs & Drawing
Dzus Panex D8 Clip Specs - Drawing
Dzus® Clip Specs / Info

  • Max hole from edge: 12mm
  • Minimum flat space for clip: 25mm
  • Minimum clearance behind bodywork:12mm
Dzus® is a Registered Trademark of Southco Inc.
