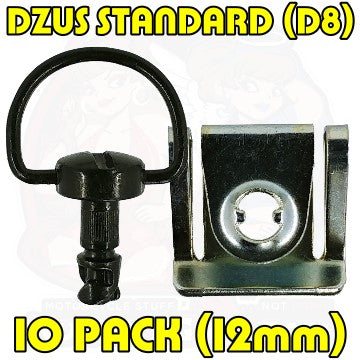

10pc: Fiberglass Bodywork, DZUS (D8), D-Ring, Clip-On, Black, WL=12mm
10pc: Fiberglass Bodywork, DZUS (D8), D-Ring, Clip-On, Black, WL=12mm
  • Load image into Gallery viewer, 10pc: Fiberglass Bodywork, DZUS (D8), D-Ring, Clip-On, Black, WL=12mm
  • Load image into Gallery viewer, 10pc: Fiberglass Bodywork, DZUS (D8), D-Ring, Clip-On, Black, WL=12mm

10pc: Fiberglass Bodywork, DZUS (D8), D-Ring, Clip-On, Black, WL=12mm

Regular price
$43.33 USD
Sale price
$43.33 USD
Regular price
Sold out
Unit price
per
Shipping calculated at checkout.

DESCRIPTION FITMENT SHIPPING & RETURNS PART NUMBER(S) ADDITIONAL INFO
DESCRIPTION
Complete 10pc Kit for attaching fiberglass motorcycle bodywork together.  12mm Dzus bolts are the "Rule of Thumb" length for fiberglass bodywork.  12mm Dzus® bolts grip up to 5.4mm total bodywork thickness

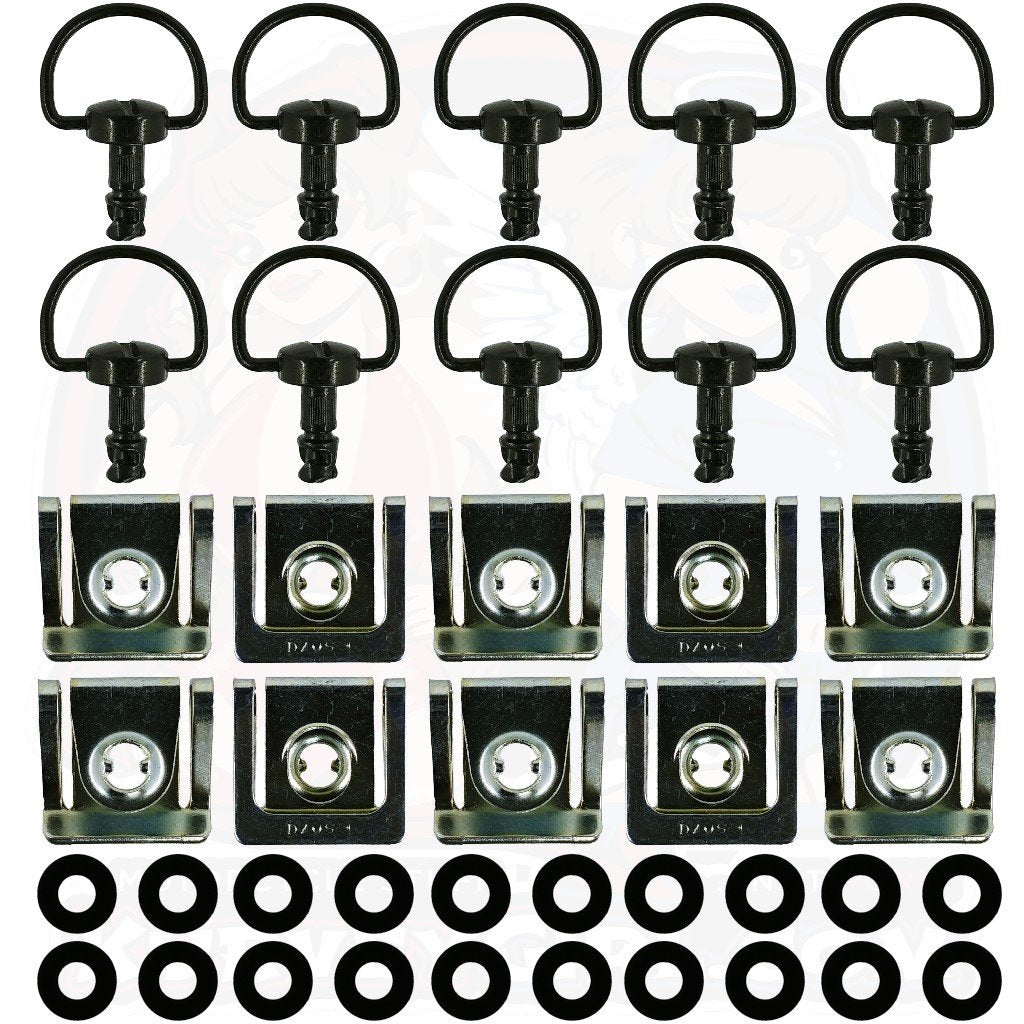

Kit Includes:
10 - 6mm D-Ring Panex D8 Fasteners Length: 12mm
Coating: Zinc Plate with BLACK Chromate
10 - 6mm Clip on Panex D8 Retainers Coating: Zinc Plate with Chromate
22 - Retaining Washers. Material: High density polyethylene
2 extra washers for your tool box
NEW D8 Style Dzus® Panex Bolts:
  • New Generation Dzus® Panex Bolt that is lighter than original D3 Style Dzus® Panex Bolt
  • 100% Compatible with old D3 Mounting Hardware.
  • Thinner main bolt shaft with 6mm Engagement head.
  • New smaller Black retaining washers.
Dzus Panex D8 - 10 Pack - Clip On - Black - 12mm Working LengthDzus Panex D8 - Single Bolt Kit - Black - Clip On - 12mm Working Length
Special Fitment Notes:
Armour Bodies Bodywork (Sold by Woodcraft CFM in USA) :
Combine 4pcs, 6pcs and 10pcs kits to create custom kit sizes...
4pcs kits 6pcs kits 10pcs kits Total Number of Dzus
1 - 4 pcs kit 0 - 6 pcs kit 1 - 10 pcs kit 14 Dzus® Pcs
3 - 4 pcs kit 1 - 6 pcs kit 0 - 10 pcs kit 18 Dzus® Pcs
2 - 4 pcs kit 1 - 6 pcs kit 1 - 10 pcs kit 24 Dzus® Pcs
Dzus® Bolts Specs & Drawing
Dzus Panex D8 Bolt Specs - Drawing
Additional Dzus® Bolt Specs / Info

  • (L) Working Length: 12mm
  • Shaft Length : 15mm
  • Grip Range: 3.5mm to 5.4mm
    • Maximum Grip with out washers
    • Minimum Grip using 2 washers
  • Minimum bodywork Hole size: 6.2mm
    • English: 1/4 Inch
Dzus® Clip Specs & Drawing
Dzus Panex D8 Clip Specs - Drawing
Dzus® Clip Specs / Info

  • Max hole from edge: 12mm
  • Minimum flat space for clip: 25mm
  • Minimum clearance behind bodywork:12mm
  • Grip Range: 3.5mm to 5.4mm
    • Maximum Grip with out washers
    • Minimum Grip using 2 washers
Dzus® is a Registered Trademark of Southco Inc.
